USB 3.2 Gen 1 to USB 3.2 Gen 2 Header Adapter, Type-E Key-A to USB 3.0 20-Pin Internal Header Converter for Front Panel USB-C Ports 10Gbps Data Transfer, Plug & Play

Overview

Does your new PC case have a sleek USB-C port on the front panel, but your motherboard lacks the internal USB 3.2 Gen 2 Type-E header to support it? Don't let that stop you from enjoying modern connectivity. This USB 3.2 Gen 1 to USB 3.2 Gen 2 Header Adapter is the simple, cost-effective solution you need.

This tiny but powerful adapter converts your motherboard's existing USB 3.0 19/20-pin internal header (also known as USB 3.2 Gen 1) into a USB 3.2 Gen 2 Type-E (Key-A) header, allowing you to connect your case's front panel USB-C cable and unlock high-speed data transfer.

Why You Need This Adapter

Many modern PC cases now come equipped with front panel USB-C ports. However, not all motherboardsespecially older or budget-friendly modelsinclude the required internal Type-E header. Instead of leaving that port unused or upgrading your entire motherboard, this adapter provides an elegant workaround.

With this adapter, you can:

Utilize your case's front USB-C port even on older motherboards.

Achieve 10Gbps transfer speeds for compatible devices like external SSDs and high-performance flash drives .

Avoid the cost and hassle of a motherboard upgrade for a single missing header.

Premium Build Quality

High-Performance PCB: Engineered with a premium black PCB to maintain signal integrity and ensure stable 10Gbps data transfer .

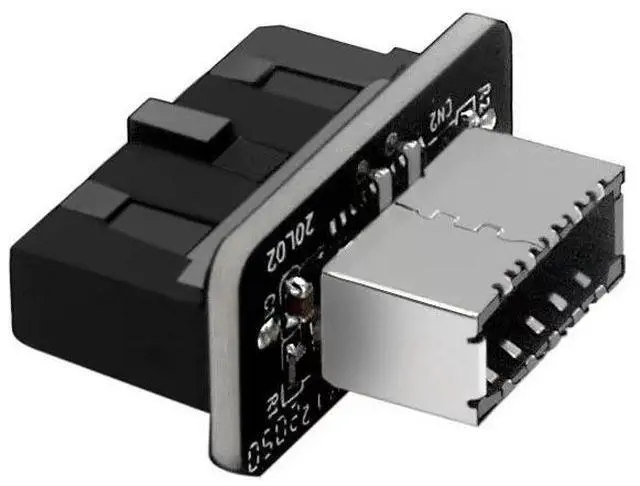

Durable Connectors: Precision-molded USB 3.0 19-pin male connector and USB 3.1 Type-E female connector ensure a secure, reliable connection .

Compact Design: Its small footprint (less than 1 inch in each dimension) fits easily in tight spaces without blocking adjacent ports or components .

Technical Specifications

Brand:Lilila-ree

Input Connector (to Motherboard): USB 3.0 Internal 19/20-Pin Male Header

Output Connector (to Front Panel): USB 3.2 Gen 2 / USB 3.1 Type-E (Key-A) 20-Pin Female Header

Data Transfer Rate: Up to 10 Gbps

Compatibility: Motherboards with USB 3.0 19-pin internal header (does NOT work with USB 2.0 headers)

Supported Systems: Windows XP/7/8/10/11 (32/64-bit), macOS, Linux

Dimensions: Approximately 23 x 11 x 19.5 mm (0.9 x 0.43 x 0.77 inches) may vary slightly by version (vertical or standard)

Color: Black

Compatible Motherboard Chipsets (Examples)

This adapter works with any motherboard that has a standard USB 3.0 19-pin internal header, including but not limited to:

AMD: A320, B350, B450, B550, X370, X470, X570

Intel: H310, H370, B360, B365, B460, H410, H510, H610, Z370, Z390, Z490, Z590

IMPORTANT INSTALLATION SAFETY NOTES

To ensure safe installation and prevent damage to your components:

Power Down Completely: Before installing, shut down your computer, unplug the power cord from the PSU, and wait at least 10 seconds .

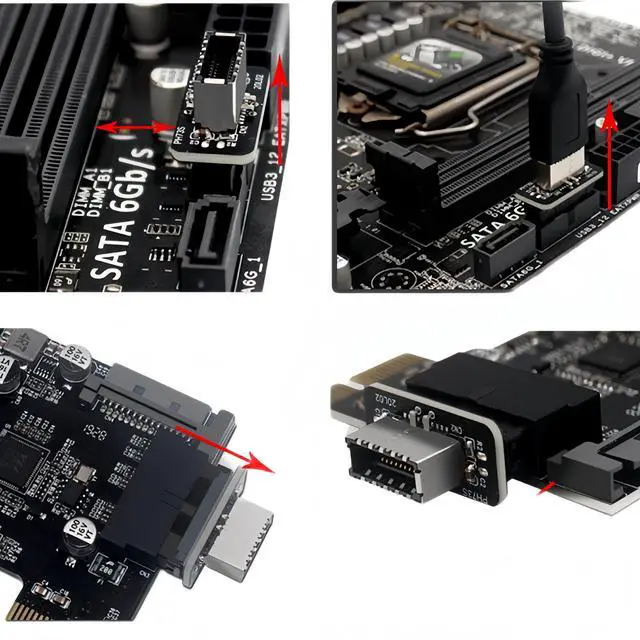

Proper Orientation: Align the adapter's missing pin position with the blocked pin on your motherboard's USB 3.0 header. It should slide in easily without forcing .

Secure the Connection: Gently push until the adapter is fully seated. Use the included self-adhesive tape to secure the adapter to your motherboard or case if desired, preventing it from dislodging during cable connection .

Connect Your Cable: Once the adapter is installed, connect your case's USB-C front panel cable to the adapter's Type-E female port.

CRITICAL COMPATIBILITY WARNING

This adapter is designed exclusively for motherboards with a USB 3.0 19/20-pin internal header . It is NOT compatible with:

USB 2.0 9-pin headers (physically different and will not fit)

Motherboards without any USB 3.0 internal header

Connecting this adapter to an incompatible header may cause short circuits or permanent damage to your motherboard.

Package Includes

1 x USB 3.2 Gen 1 to USB 3.2 Gen 2 Header Adapter
