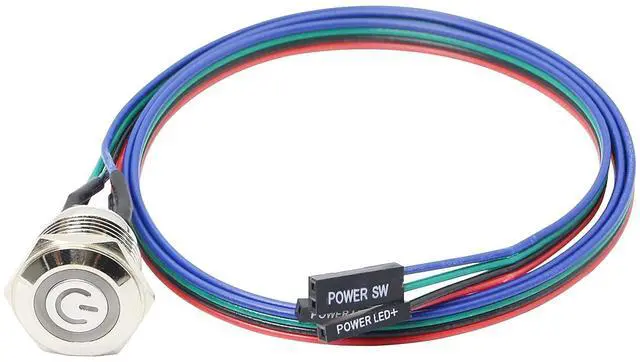

Chassis Switch - Metal Button, PC Case LED Power Button ATX Supply On/Off for DIY Computer - 60cm, 12mm

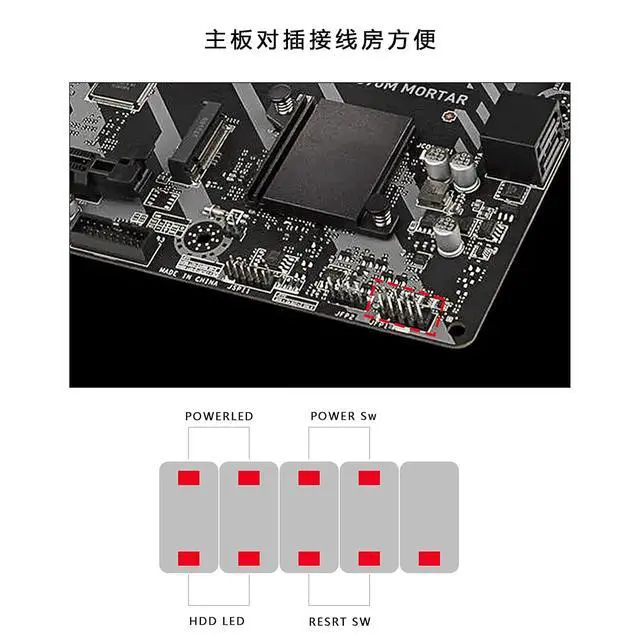

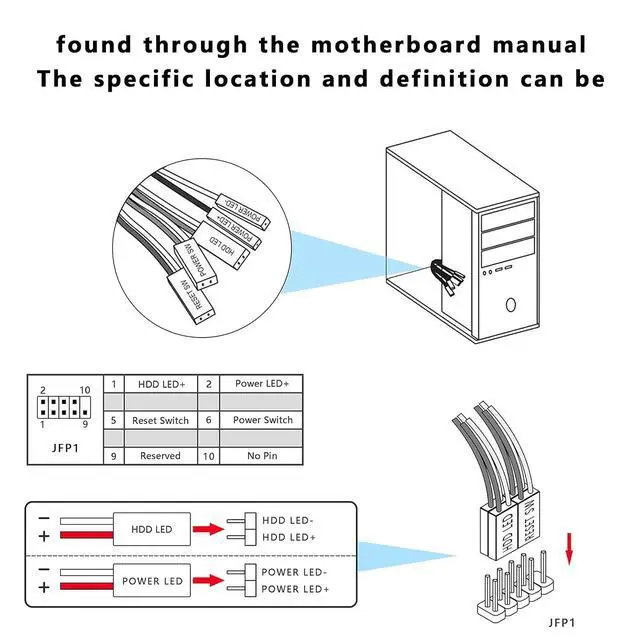

- Computer chassis switch cable with LED is mainly used to replace old or damaged ATX power reset switch or computer host switch. Suitable for DIY computer switch and restart button; PC case LED power button easy to install, one end connect the motherboard POWER or RESET jack, the other end of the switch connect to the chassis panel.; ATX supply on/off cable maximum 3A current The rated voltage and current of the LED of the switch: rated voltage 3-6V, rated current 20mA.Switch rated load : 12mm switch - AC / DC 220V 3A max, 16mm switch - AC / DC 0-220V 5A Max.; DIY atx power switch with light button adopts high brightness solid color LED, built-in resistance step-down. When button is red, it is the restart key, and when it is blue, it is the start key.; The pc power button is made of nickel plated aluminum alloy with long service life. The length of switch wire is about 60cm / 23.6in, for your computer case enough
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Computer host switch cable metal button is a very strong small panel mounted switch with luminous LED ring and switch symbol. It can meet your need for strong buttons. Suitable for DIY computer switch and restart button. The pc power buttons are rated up to 5A and 250V AC while the LED is rated for 3-6V.
Led type: high brightness LED lamp.
Rated voltage: 3-6v.
Rated current: 20mA.
Rated load of switch: 12mm switch - AC / DC 220V 3A max; 16mm switch - AC / DC 220V 5A max.
Switch type: fast moving single contact.
Contact resistance: 50m.
Insulation resistance: 1000M.
Insulation strength: 2000vac.
Ambient temperature: - 20 ° C - +55 ° C.
Working pressure: 2.5 - 4.5 n.
Shell: stainless steel.
Key: stainless steel.
Contact point: silver alloy.
The package includes: 1* computer host switch cable
Led type: high brightness LED lamp.
Rated voltage: 3-6v.
Rated current: 20mA.
Rated load of switch: 12mm switch - AC / DC 220V 3A max; 16mm switch - AC / DC 220V 5A max.
Switch type: fast moving single contact.
Contact resistance: 50m.
Insulation resistance: 1000M.
Insulation strength: 2000vac.
Ambient temperature: - 20 ° C - +55 ° C.
Working pressure: 2.5 - 4.5 n.
Shell: stainless steel.
Key: stainless steel.
Contact point: silver alloy.
The package includes: 1* computer host switch cable
