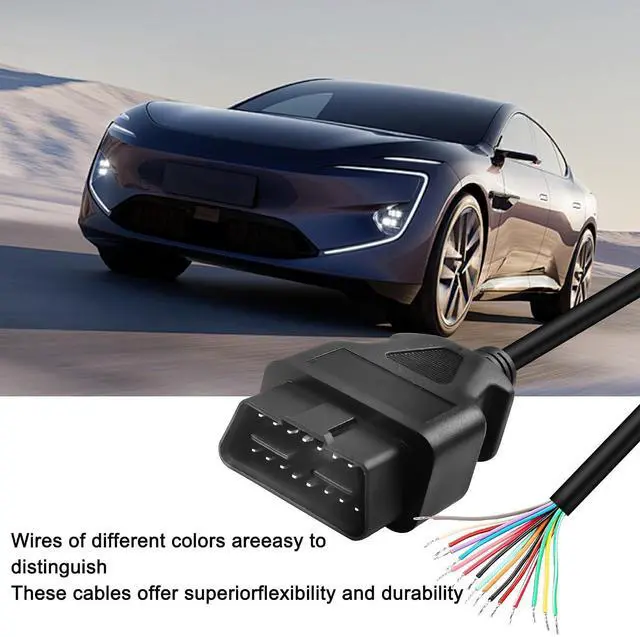

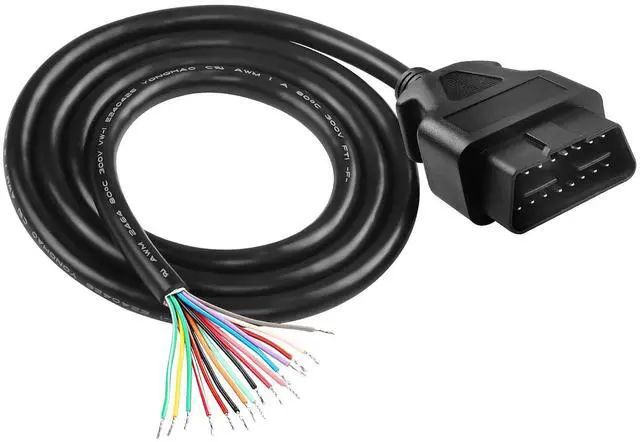

OBD OBD2 Extension Cable Pigtail Wire OBD-II 16 Pin Male Connector Open End Bare Wire Diagnostic Cord for Vehicle DIY -1M/3.28FT

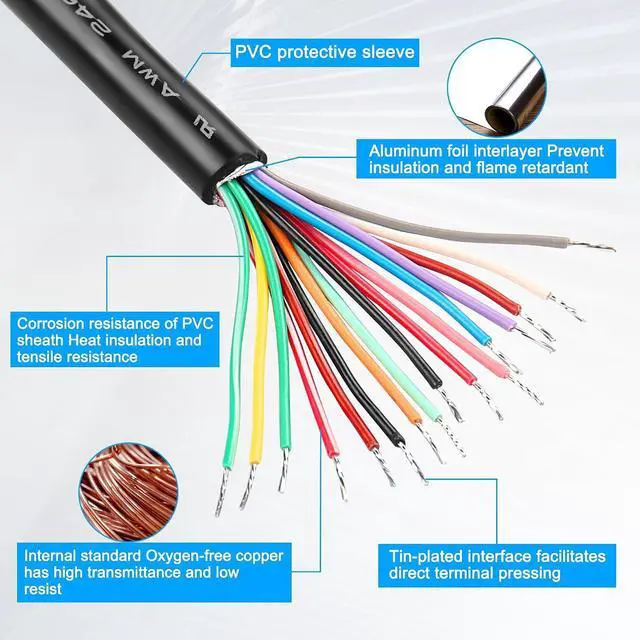

- This 16-pin OBD2 Extension Cable Pigtail Wire is used to extend, modify and replace the OBD2 cable in the vehicle and is suitable for on-board systems in most vehicles.; OBD2 male connecotr cable is made of high-quality PVC material, soft and durable, wear-resistant and not easy to break, internal with high purity oxygen-free copper core, strong current load capacity, long service life.; J1962 OBD2 OBD-II Male Connector with Standard 16-pin, 16-core specifications, different colors of wire corresponding to different pins: 1. Black, 2.brown, 3.red, 4.orange, 5.yellow, 6.green, 7. Blue, 8. Purple, 9. Gray, 10. White, 11. Pink, 12. Light green, 13. Black and white, 14. Brown and white, 15. Red and white, 16. Green and white.; With a length of 1M/3.28FT, it's long enough for you to do a variety of DIY operations, and because the OBD-II extension cable has a limited diameter and 16 wires, the wires are small. It takes patience and a little DIY skills to connect.; Applicable to OBDII interfaces for cars, trucks, motorcycles, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description OBD OBD2 16 Pin Male Connector Open End Bare Wire OBD2 male diagnostic cable
Product name: OBD2 16 PIN extension cable
Load voltage: 5V-380V
Carrying current: 3A
Breakdown voltage: 300V
Product color: Black
Core specification: 26AWG
Wire material: PVC material
Connector type: OBD 16
PIN Operating temperature: -20 - +105

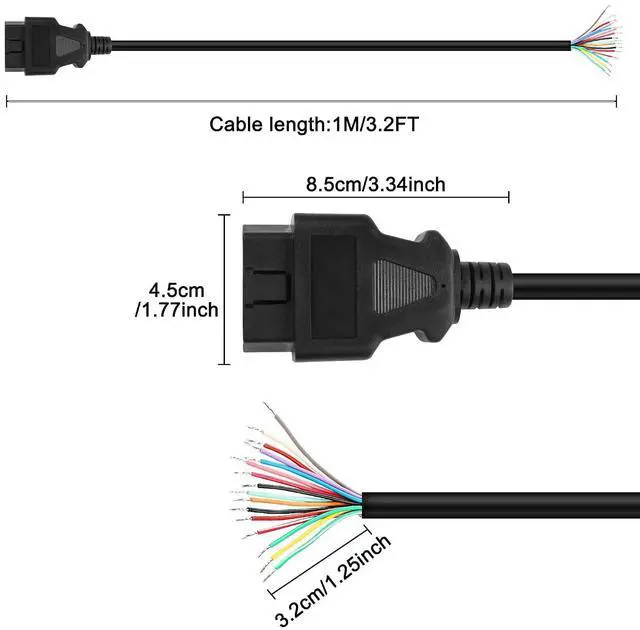

Length: 1 M / 3.28
FT Wire gauge: 26AWG All 16 pins are connected in different colors and can be easily identified.

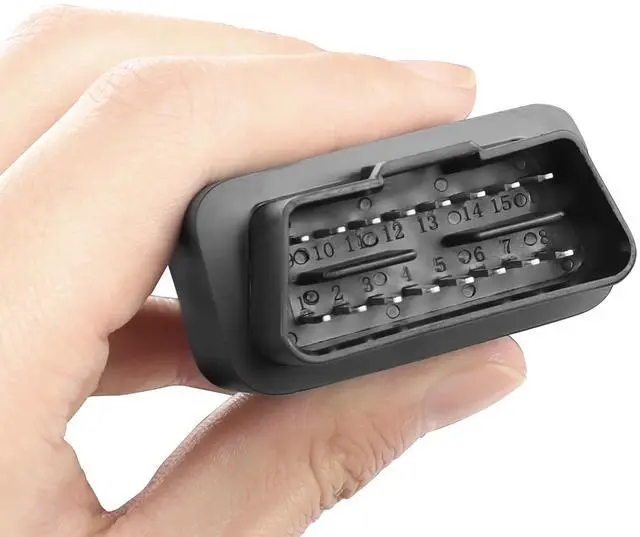

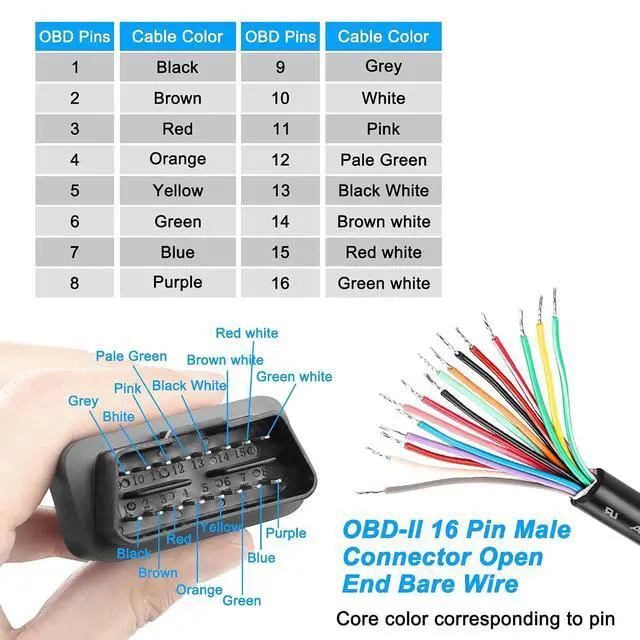

Pin chart: 1. black, 2. brown, 3. red, 4. orange, 5. yellow,
6. Green,
7. Blue,
8. Purple,
9. Gray,
10. White,
11. Pink,
12. Light green,
13. Black and white,
14. Brown and white,
15. Red and white,
16. Green and white.
Package includes: 1*OBD2 male connector cable
Product name: OBD2 16 PIN extension cable
Load voltage: 5V-380V
Carrying current: 3A
Breakdown voltage: 300V
Product color: Black
Core specification: 26AWG
Wire material: PVC material
Connector type: OBD 16
PIN Operating temperature: -20 - +105
Length: 1 M / 3.28
FT Wire gauge: 26AWG All 16 pins are connected in different colors and can be easily identified.
Pin chart: 1. black, 2. brown, 3. red, 4. orange, 5. yellow,
6. Green,
7. Blue,
8. Purple,
9. Gray,
10. White,
11. Pink,
12. Light green,
13. Black and white,
14. Brown and white,
15. Red and white,
16. Green and white.
Package includes: 1*OBD2 male connector cable
