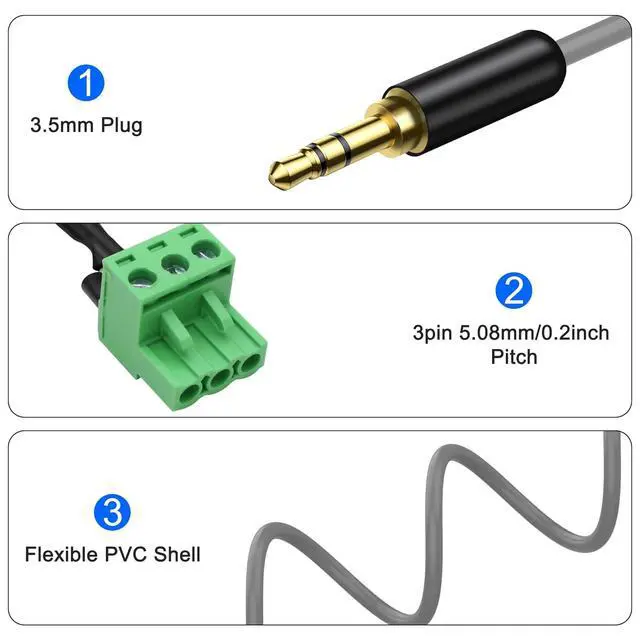

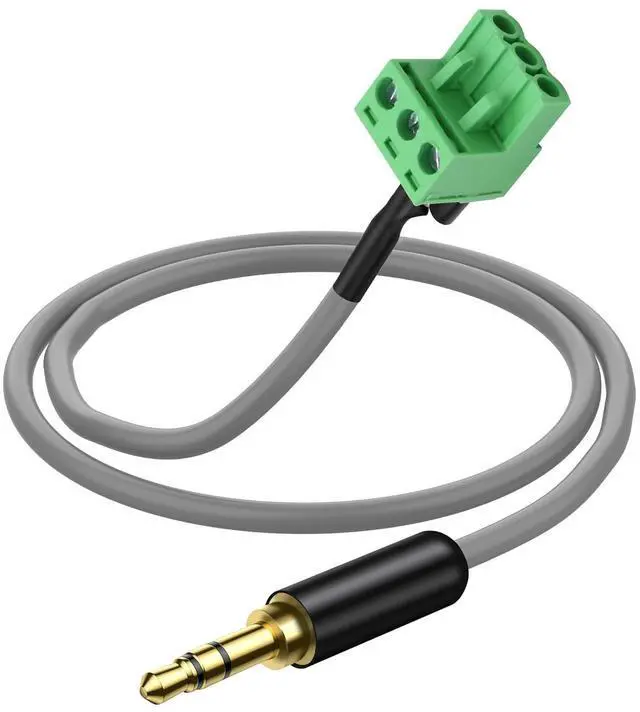

3.5mm to Phoenix Terminal Connector Audio Cable 1/8" TRS Male to 3-pin 5.08mm/0.2inch Pitch PCB Phoenix Female Plug Stereo Solderless Screw Block Connector Cord - 50CM/1.64FT

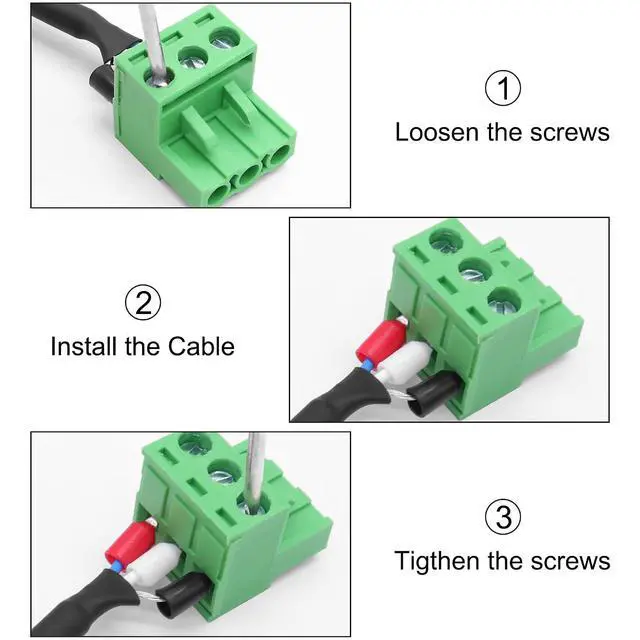

- The 3.5mm TRS to 3-pin Phoenix terminal connector cable is designed for connecting and expanding devices equipped with 3.5mm audio interfaces. It effectively resolves compatibility issues between audio devices, eliminates the need for traditional wiring methods, and is particularly suitable for applications involving equipment with Phoenix interface support.; Standard 3.5mm TRS connector, with gold plating on the surface, is pressure-resistant, anti-oxidation, corrosion-resistant and highly stable. The 3.5mm to phonenix wire is made of high-quality PVC flame-retardant plastic with a pure copper core, ensuring stable conductivity.; The Phoenix connector conforms to industry standards, with the following specifications: 3-pin , Terminal pitch: 5.08 mm (0.2 inch), rated voltage 300 V, rated current 8 A, cable material : PA66 plastic, Wire gauges ranging :12AWG- 24 AWG.; Installation and removal are straightforward: the 1/8" (3.5mm) TRS plug allows for direct insertion and extraction, while the Phoenix terminal enables quick wire connection and disconnection by simply loosening or tightening the screw terminal, facilitating convenient replacement and integration with other devices.; This 1/8" TRS Male to 3-pin phoenix solderless screw wire is commonly utilized to establish waterproof power connections between smartphones, laptops, tablets, personal computers, compact disc players, MP3 and MP4 players, headphones, and other audio devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

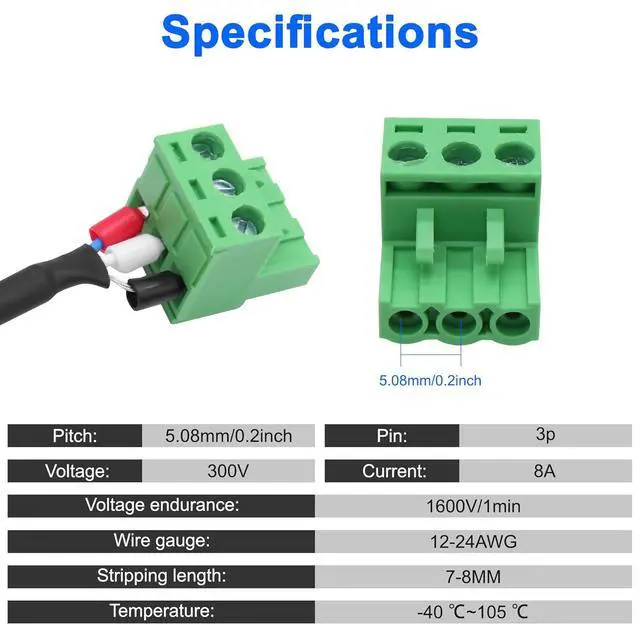

Product description 1/8" TRS Male to 3-pin phoenix solderless screw wire 1/8" TRS male connector to 3-pin Phoenix female cable
Standard length: 0.5 m
Plug specification: 3.5 mm TRS / 3-pin female
Terminal pitch: 5.08 mm
Rated voltage/Rated current: 300 V / 8
A Applicable wire cross-sectional area: 2.5 mm²
Wire gauge: 1224
AWG Maximum locking torque: 0.4
Nm Stripping length: 56 mm
Withstand voltage: 2000 V per minute

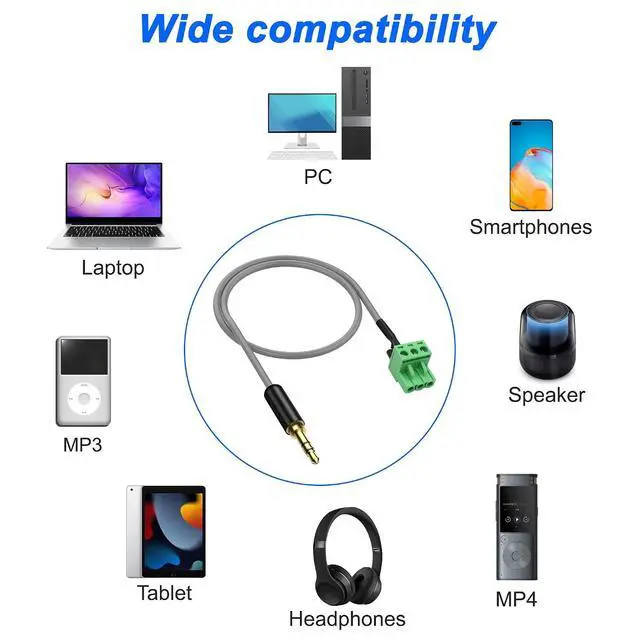

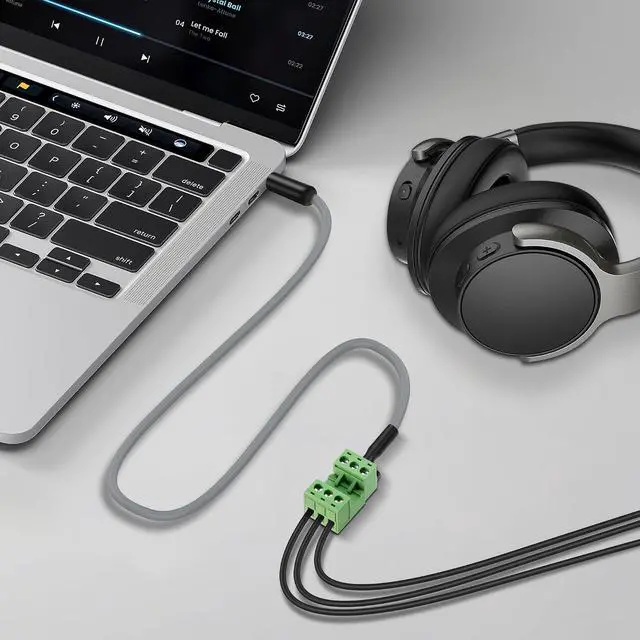

Application: Suitable for use with MP3 players, personal computers, CD players, and smartphones 3.5 mm TRS male to 3-pin female cable
Standard length: 0.5 m
Plug specification: 3.5 mm TRS / 3-pin female
Terminal pitch: 5.08 mm
Rated voltage/Rated current: 300 V / 8
A Applicable wire cross-sectional area: 2.5 mm²
Wire gauge: 1224
AWG Maximum locking torque: 0.4
Nm Stripping length: 56 mm
Withstand voltage: 2000 V per minute
Application: Suitable for use with MP3 players, personal computers, CD players, and smartphones 3.5 mm TRS male to 3-pin female cable
