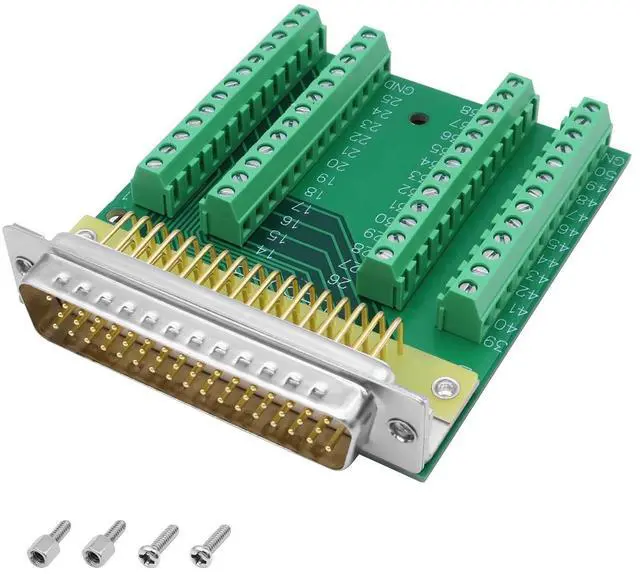

DB50 Solderless Connector D-SUB 50 Pin Breakout Board Terminal Block Adapter for PLC CNC Industrial Control Signal Testing (DB50 Male)
Limited time offer, ends 08/02 By LUOYIMAN

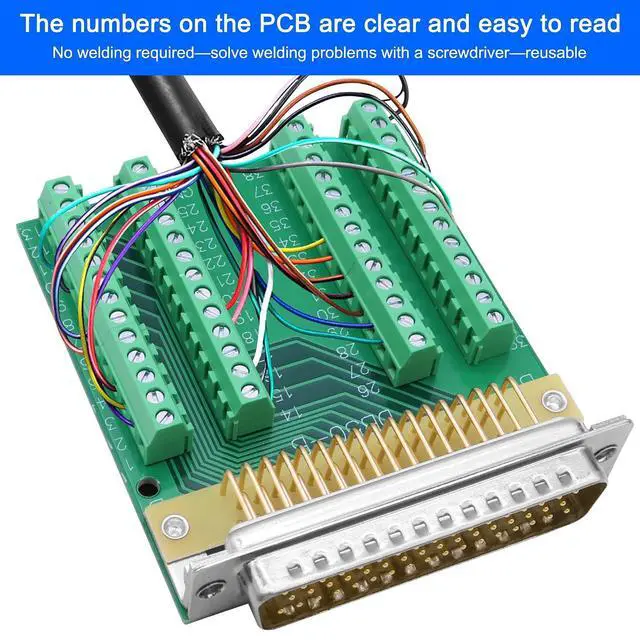

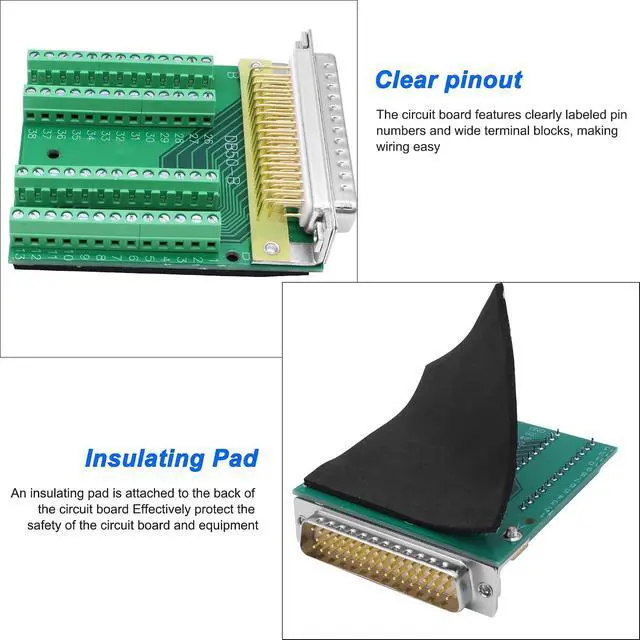

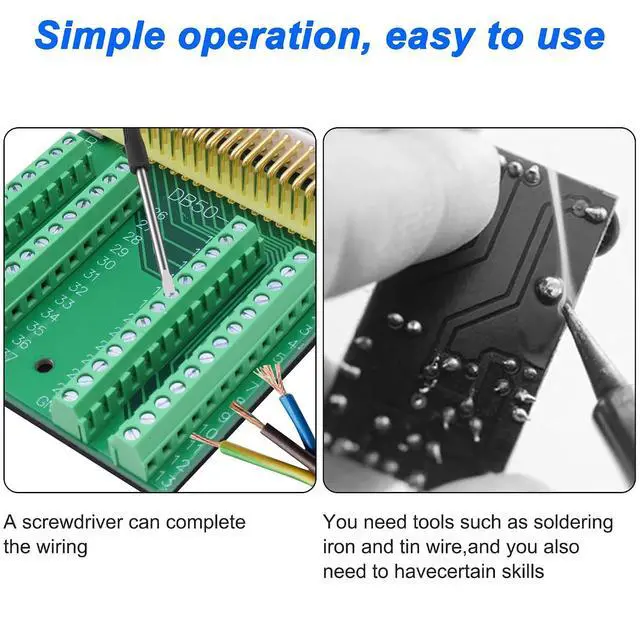

- This DB50 Solderless connector supports integration with custom-length cables and customizable pin configurations, enabling robust, long-term interconnections across diverse industrial and laboratory applications. It is specifically designed for rapid, reliable interfacing of programmable logic controllers (PLCs), data acquisition (DAQ) systems, and other instrumentation equipped with DB50 interfaces.; This D-SUB 50-pin breakout terminal connector is made of all-copper core, ensuring stable signal transmission and long service life. The ports are processed with double-layer nickel plating technology, allowing for internal and external maintenance. It is of high quality and has excellent durability.; The PCB pin circuit board is marked with numbers from 1 to 50 (plus GND), and the number of pins is clearly visible. The connection ports are large, making wiring convenient. An insulating spacer is attached to the back of the circuit board, which can effectively protect the circuit board and the equipment's safety.; No welding is required. Just use a small screwdriver to open the terminal block, slide the twisted wire or solid wire into it, and then re-tighten it.; The D-SUB DB50 board breakout block adapter is compatible with 50-pin interface parallel port and serial port devices, such as computers, tax control machines, digital cameras, PLCs, PDAs, modems, set-top boxes, barcode machines, industrial instruments, and other communication-related devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description DB50 Solderless Connector D-SUB 50 Pin Breakout Board Terminal Block
Adapter Name: DB50 Pinless Module D-SUB 50-pin breakout terminal connector
Applications: Tax control machine, digital camera, PLC, PDA, modem, set-top box, barcode machine, industrial instrument and equipment, etc.
Technical
Material: Pure copper-nickel plated connector
Terminal: All copper terminal
Terminal Diameter: 0.08 inches / 2 millimeters
Pitch: 0.15 inches / 3.81 millimeters
Cable Specification: 0.15 mm² to 1.5 mm² / 26 - 15
AWG Bus Length: 5 - 6 millimeters
Torque: 0.2 Newton-meters ( 1.7 pound-inches)
Rated Voltage: 24 volts
Rated Current: 3 amperes
Adapter Name: DB50 Pinless Module D-SUB 50-pin breakout terminal connector
Applications: Tax control machine, digital camera, PLC, PDA, modem, set-top box, barcode machine, industrial instrument and equipment, etc.
Technical
Specifications
: ConnectorMaterial: Pure copper-nickel plated connector
Terminal: All copper terminal
Terminal Diameter: 0.08 inches / 2 millimeters
Pitch: 0.15 inches / 3.81 millimeters
Cable Specification: 0.15 mm² to 1.5 mm² / 26 - 15
AWG Bus Length: 5 - 6 millimeters
Torque: 0.2 Newton-meters ( 1.7 pound-inches)
Rated Voltage: 24 volts
Rated Current: 3 amperes
