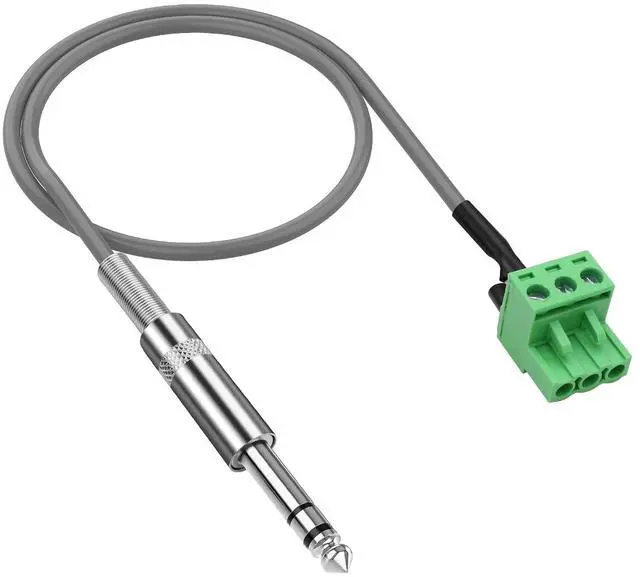

6.35mm TRS to 3-pin Phoenix Audio Cable 1/4" Stereo Male to 5.08mm Pitch 3 Pin PCB Screw Terminal Block Adapter Connector Cord for Guitar Speakers Cable DIY-0.5M/1.6FT

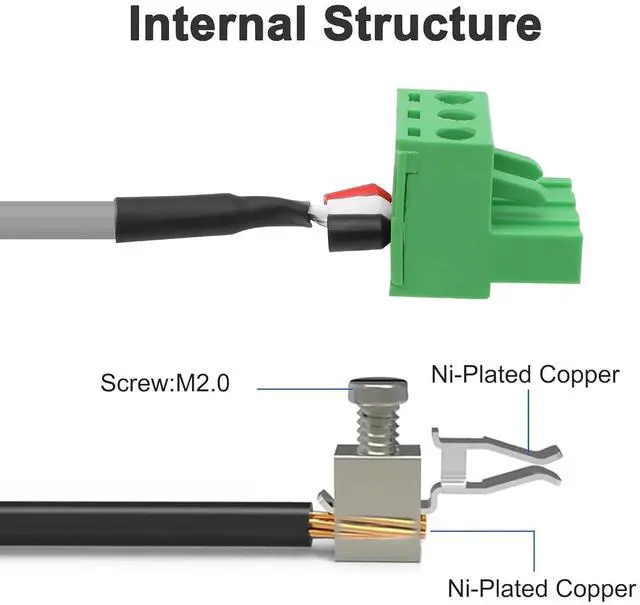

- The 6.35mm TRS to 3-pin Phoenix cable effectively resolves compatibility issues between audio devices, eliminating the need for traditional wiring methods and enabling seamless integration with equipment featuring Phoenix interfaces.; The standard 1/4" TRS connector features a robust, pressure-resistant plug design with a nickel-plated surface finish that ensures anti-oxidation and corrosion resistance, delivering high electrical stability. The connecting cable is constructed with reinforced nylon-braided insulation and a pure copper conductor core, providing excellent tensile strength and consistent signal transmission.; The 5.08mm Pitch 3 Pin Phoenix connector is fabricated from high-quality polyethylene (PE) flame-retardant plastic, incorporating a steel screw terminal with electroplated coating to prevent loosening. Its shockproof, heat-resistant, and flame-retardant design ensures reliable performance under demanding conditions. The connector maintains current balance, minimizes signal loss, prevents electrical leakage, and offers an extended service life. Electrical ratings: AC 300V, 20A, compatible with 1224 AWG wire. 3 Pin pitch: 5.08 mm.; The 1/4 TRS plug allows for straightforward insertion and removal, enabling quick installation and disassembly. The PHX3M Phoenix 3 Pin PCB Screw Terminal Block Adapter connector facilitates secure wire termination by simply loosening and tightening the screw, while the connection block can be rapidly disconnected without the need
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

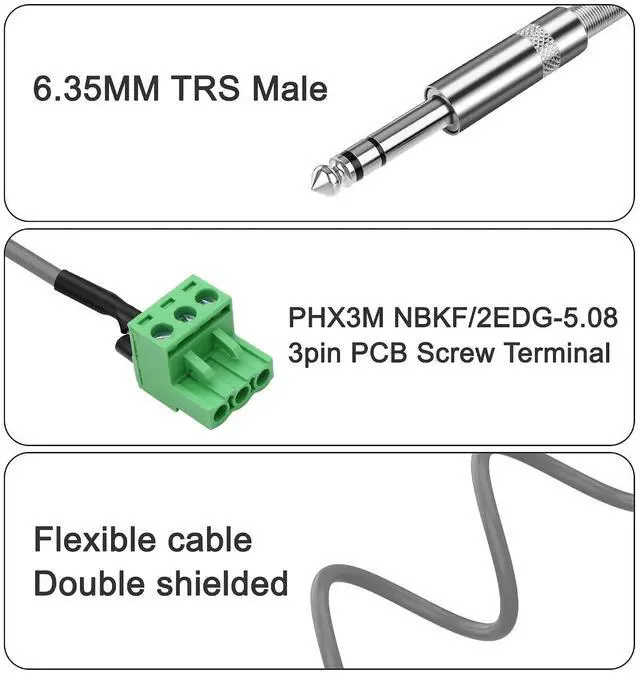

Product description 1/4" Stereo Male to 5.08 mm Pitch 3 Pin PCB Screw Terminal Block Adapter Connector Cord 6.35 mm 1/4" trs male to PHX3M NBKF/2EDG- 5.08 mm pitch 3 pin phoenix pcb screw terminal block adapter connnector stereo audio cable cord 5.08 mm Pitch 3 Pin Phoenix connector
Name: 1/4" TRS Male Connector to 5.08 mm 3-Pin Phoenix stereo audio cable
Wire: Grey PVC Insulated
Cable Standard Length: 0.4 meters
Plug Specification: 6.35 mm TRS, 3-Pin
Phoenix Terminal Pitch: 5.08 mm
Rated Voltage: 300 V
Rated Current: 8
A Applicable Wire Cross-Sectional Area: 2.5 mm²
Wire Gauge: 1224 AWG Maximum
Locking Torque: 0.4
Nm Recommended Strip Length: 56 mm
Withstand Voltage: 1600 V (1 minute)
Operating Temperature Range: 20 °C to +60 °C
Application: Commonly used in electric guitar systems and stage audio equipment for reliable signal and power transmission
Package Includes: 1 × 6.35 mm TRS 3-Pin Male to 5.08 mm 3-Pin Phoenix Connector Set
Name: 1/4" TRS Male Connector to 5.08 mm 3-Pin Phoenix stereo audio cable
Wire: Grey PVC Insulated
Cable Standard Length: 0.4 meters
Plug Specification: 6.35 mm TRS, 3-Pin
Phoenix Terminal Pitch: 5.08 mm
Rated Voltage: 300 V
Rated Current: 8
A Applicable Wire Cross-Sectional Area: 2.5 mm²
Wire Gauge: 1224 AWG Maximum
Locking Torque: 0.4
Nm Recommended Strip Length: 56 mm
Withstand Voltage: 1600 V (1 minute)
Operating Temperature Range: 20 °C to +60 °C
Application: Commonly used in electric guitar systems and stage audio equipment for reliable signal and power transmission
Package Includes: 1 × 6.35 mm TRS 3-Pin Male to 5.08 mm 3-Pin Phoenix Connector Set
