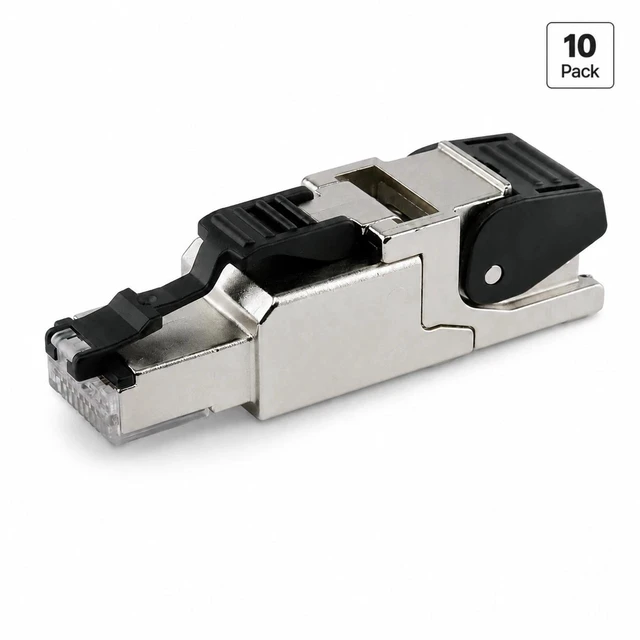

Telegärtner 100023039 PROFINET RJ45 Field Termination Plug AWG24-22 Pack of 10
- Manufacturer: Telegärtner
- Part Number: 100023039
- Alternate Part Number: J00026A2002
- EAN: 4018359428327
- Product Family: MFP8
- Manufacturer Article Name: CU-CN MFP8 PNO D1-1.6
- Connector Type: RJ45 Field Termination Plug
- Network Type: PROFINET Industrial Ethernet
- Pin Assignment: PROFINET
- Connector Standard: IEC 60603-7-51
- Housing Material: Nickel-plated zinc die-cast
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Solid Conductor Diameter: 0.51 to 0.64 mm
- Stranded Conductor Diameter: 0.46 to 0.76 mm
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.0 to 9.0 mm
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Cable Tensile Strength: Minimum 50 N
- Insertion Force: Less than 30 N
- Current Rating: 1 A at 50°C
- Contact Resistance: 20 m
- Insulation Resistance: 500 M
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP20
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Included: Pre-assembled protection cap
- Quantity: Pack of 10 connectors
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

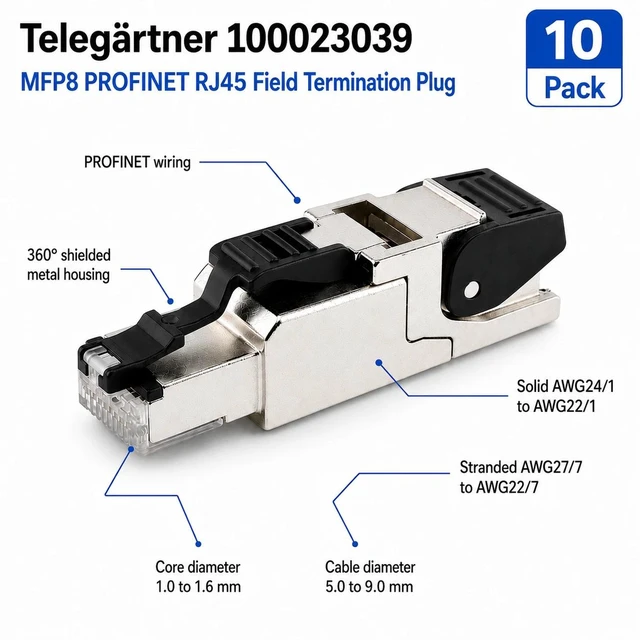

Sold as a Pack of 10. The Telegärtner 100023039 MFP8 is a shielded RJ45 field termination plug designed specifically for PROFINET industrial Ethernet cabling. Its nickel-plated zinc die-cast housing, shield contact, integrated strain relief, and pre-assembled protection cap provide a durable connection for industrial automation, control systems, machinery, and PROFINET network installations.
This version supports solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.0 to 9.0 mm. The connector also supports PoE, PoE+, and 4 Pair Power over Ethernet for compatible industrial Ethernet equipment.
Typical Applications
- PROFINET industrial Ethernet networks
- Factory and industrial automation
- PLC and industrial control systems
- Machinery and equipment networking
- Industrial Ethernet field termination
- PoE-powered industrial network devices
- Industrial communication infrastructure
