Target Applications

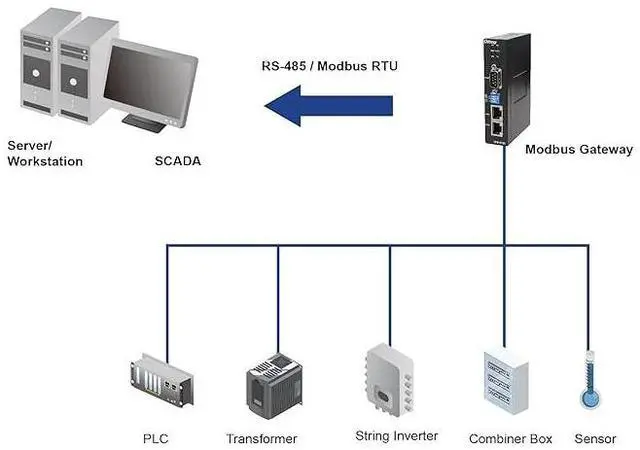

Factory Automation
Enabling legacy serial devices like PLCs and sensors to connect with modern Ethernet-based SCADA systems for real-time control and monitoring.
Building Automation
Integrating HVAC, lighting, and access control systems using RS-232/422/485 interfaces into centralized IP networks for streamlined facility management.

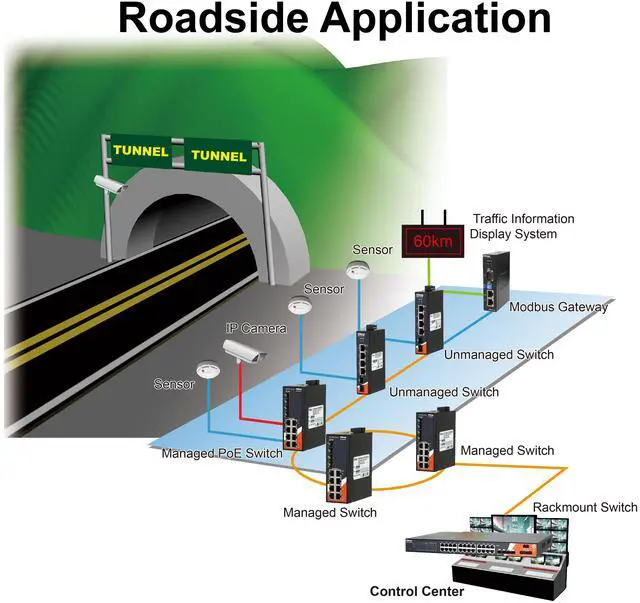

Transportation Systems
Linking ticketing machines, LED displays, and onboard diagnostics to the central control room over IP networks, ensuring seamless and reliable communication.
Environmental Monitoring
Transmitting data from remote serial-based sensors and data loggers to cloud or central systems for real-time environmental analysis and reporting.

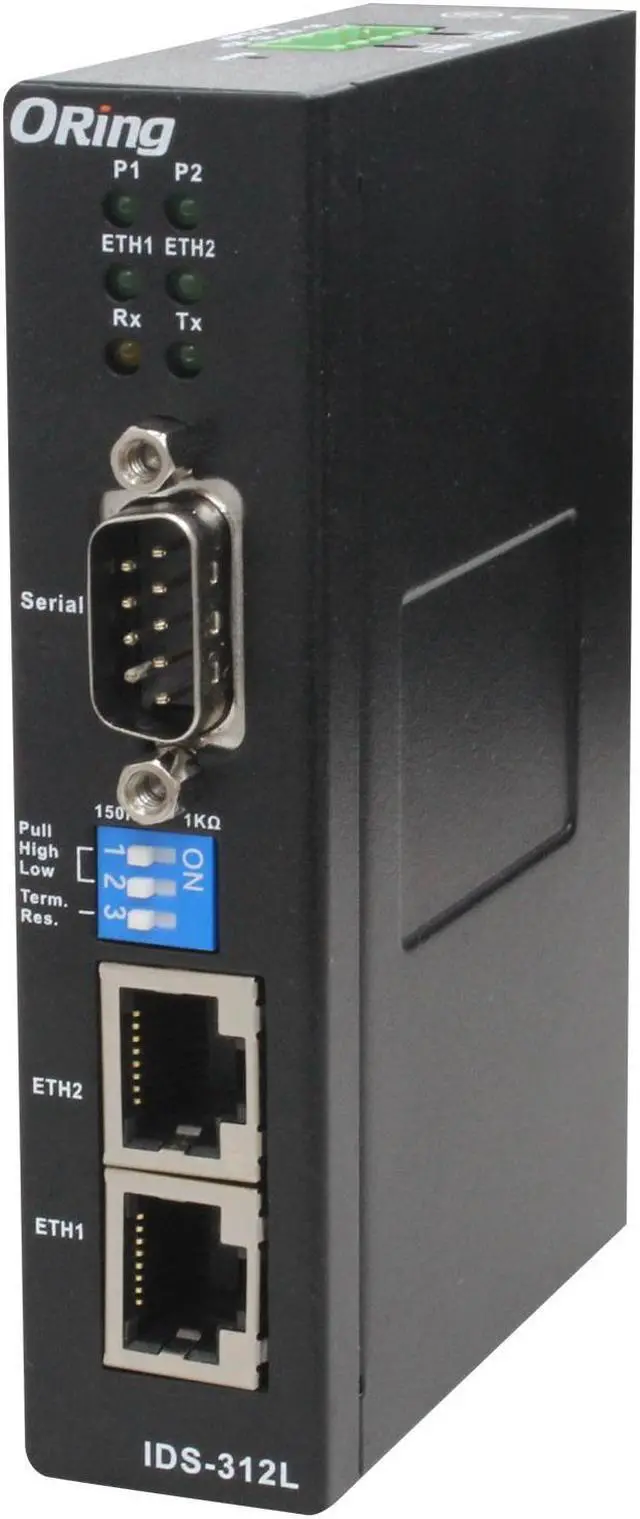

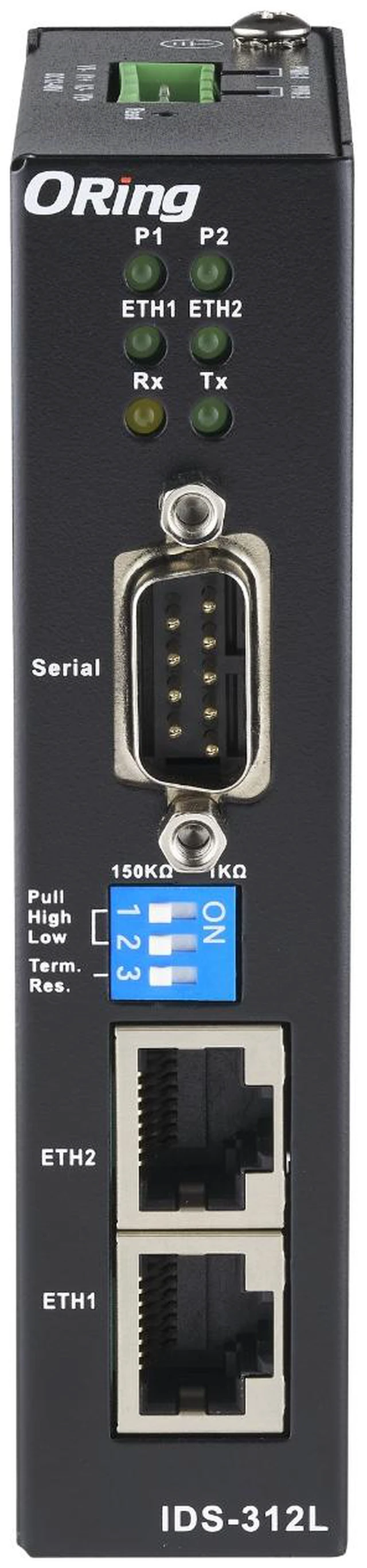

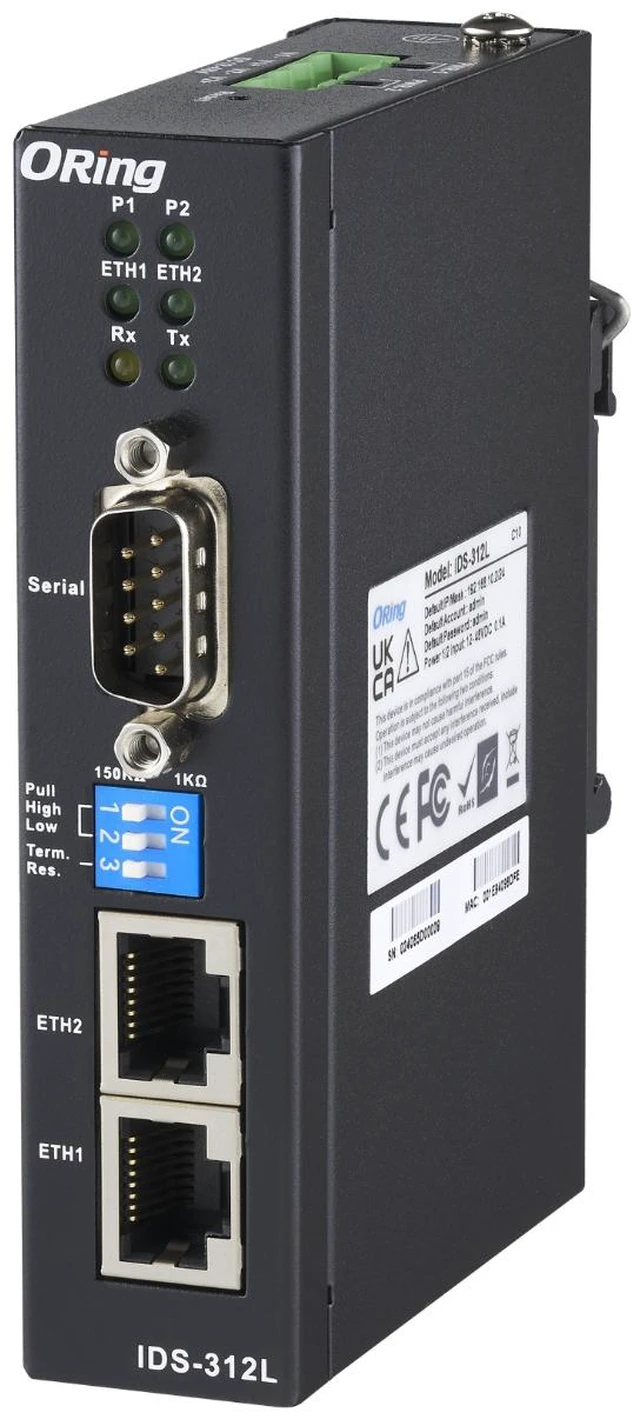

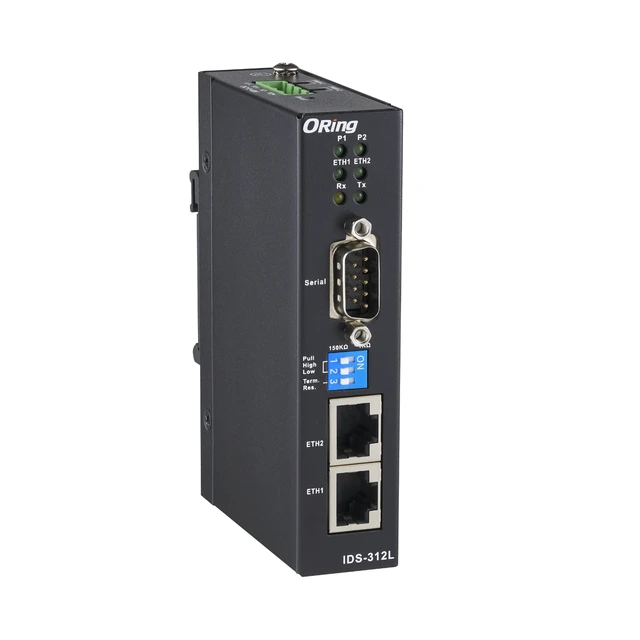

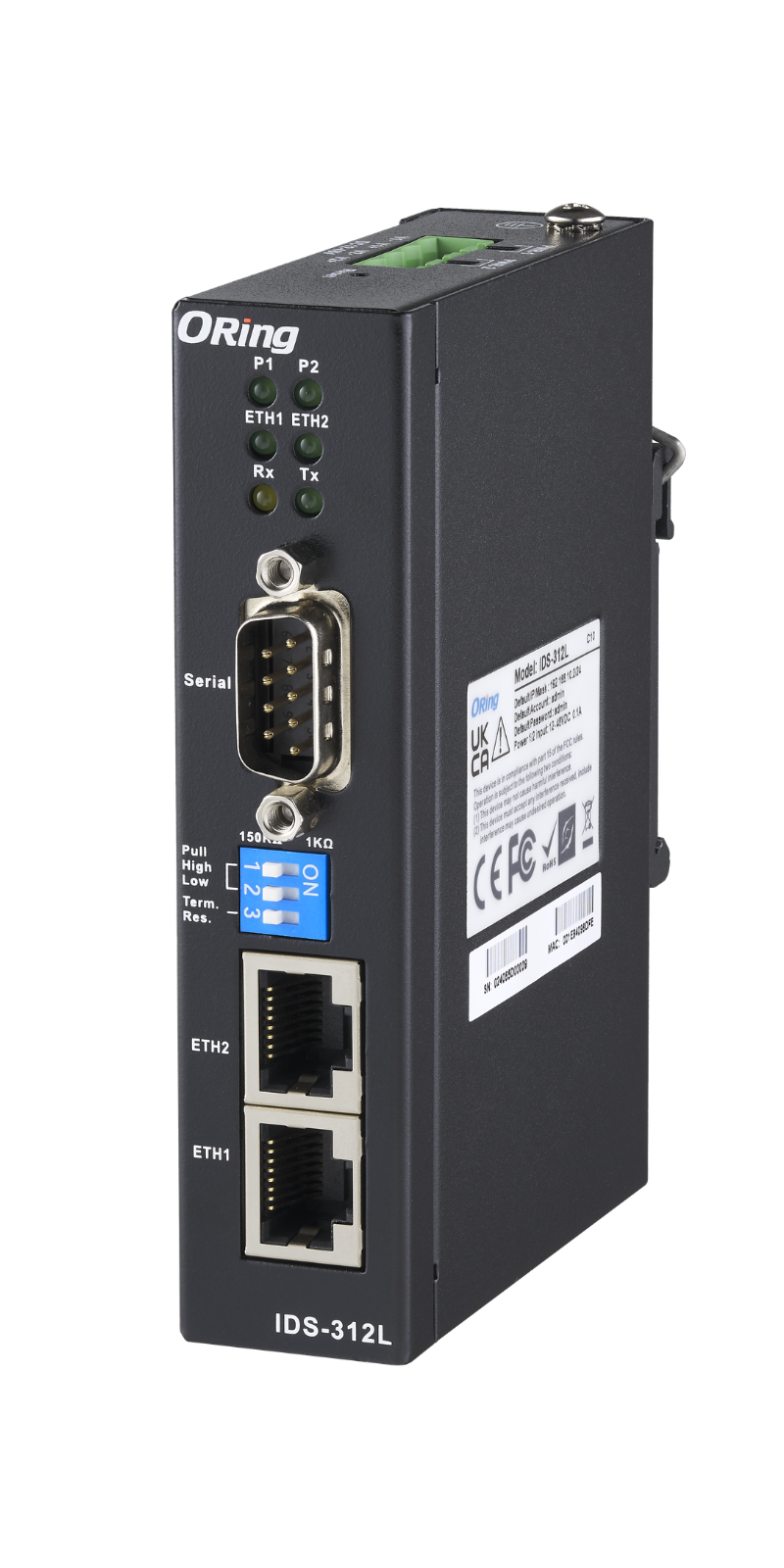

Specification
| 10/100 Base-T(X) | 2 |
|---|---|
| Serial Port | DB9 x 1 |
| Operation Mode | RS-232/422/485 |
| Serial Baud Rate | 1200 bps to 460.8 Kbps |

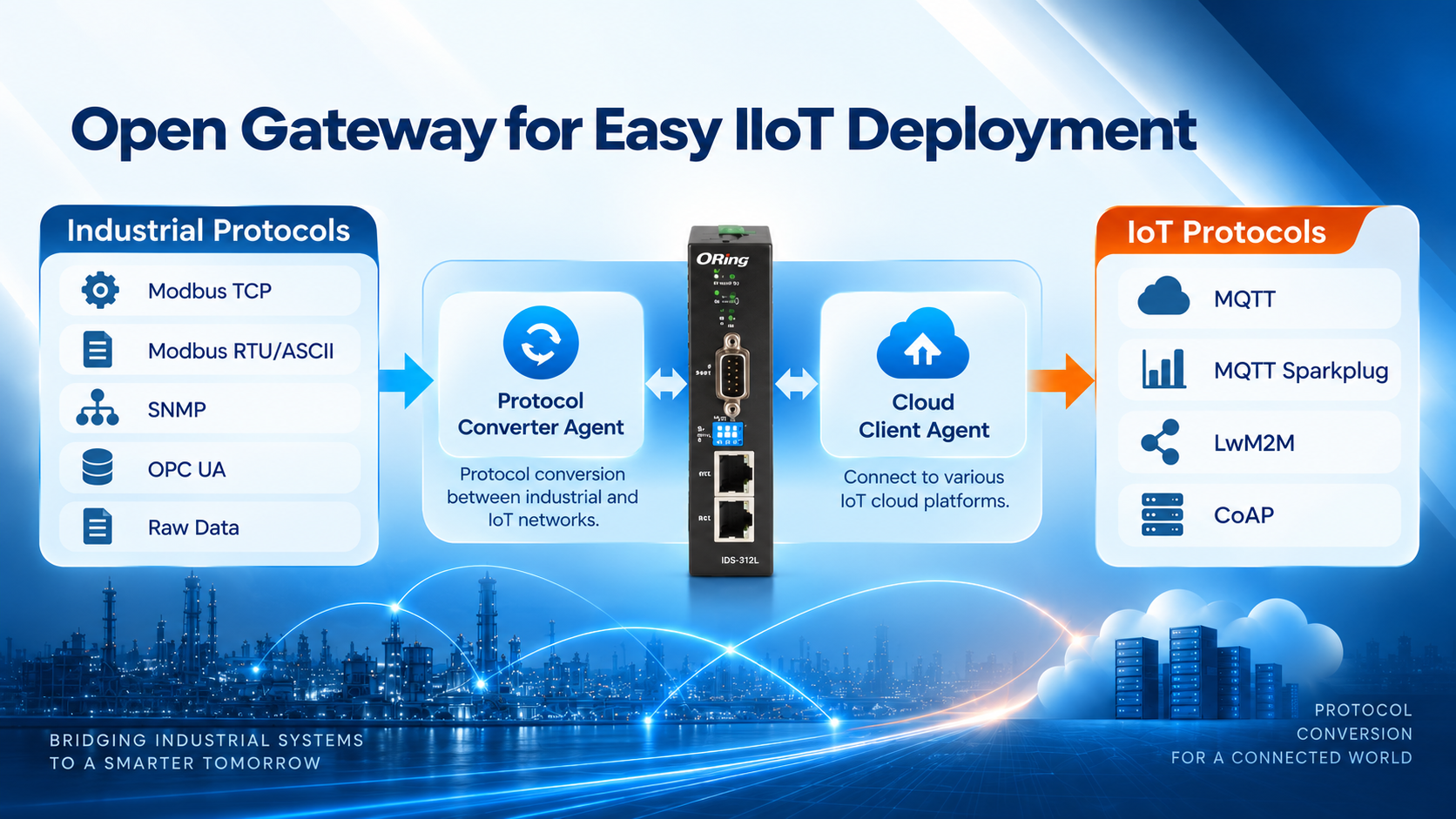

| Network Protocol | ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP |
| Power Input | Dual 12-48VDC |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Enclosure | IP30 |
| Dimension | 26 (W) x 75 (D) x 110 (H) mm |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Altitude | Up to 2000 m |
| EMC | CE EMC (EN 55024, EN 55032), FCC Part 15B |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-6 |
| Safety | IEC 60068-2-31 |
| MTBF | 1479078 hrs |
