• $338.00
  • Free 30-day Returns
  • Price alert
    Shop it at NeweggBusiness.

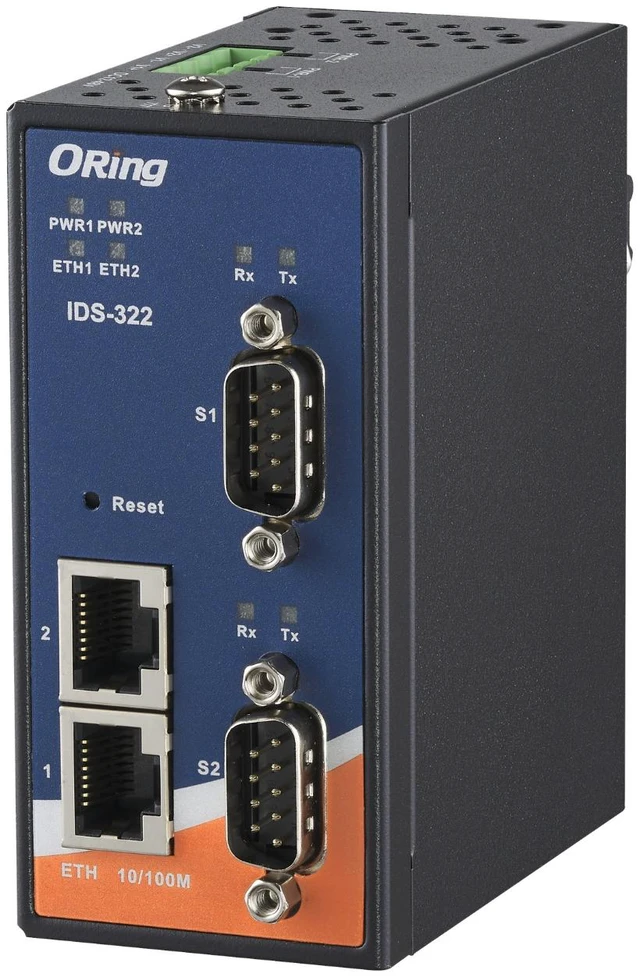

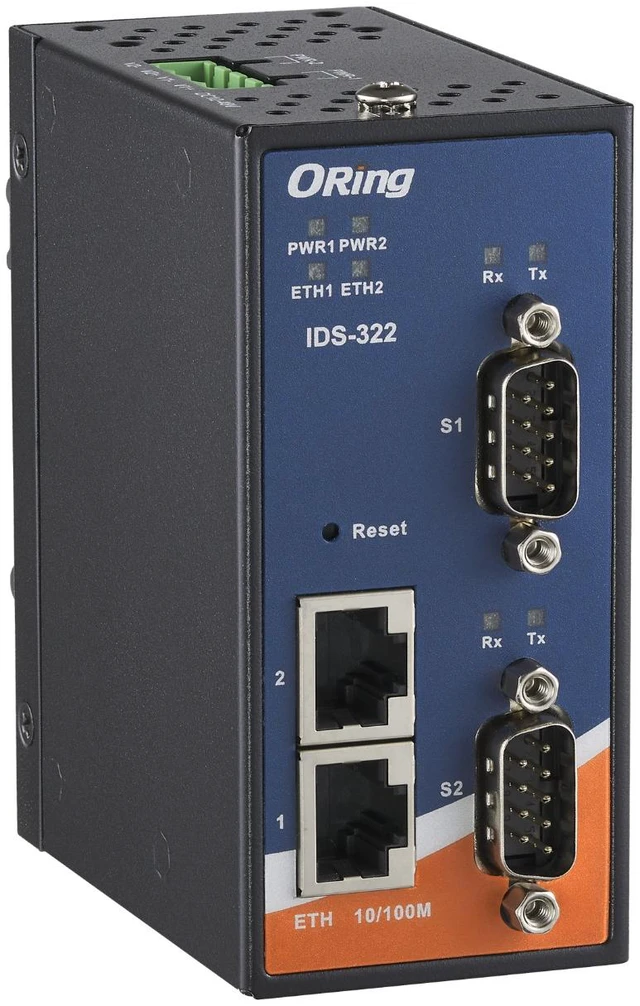

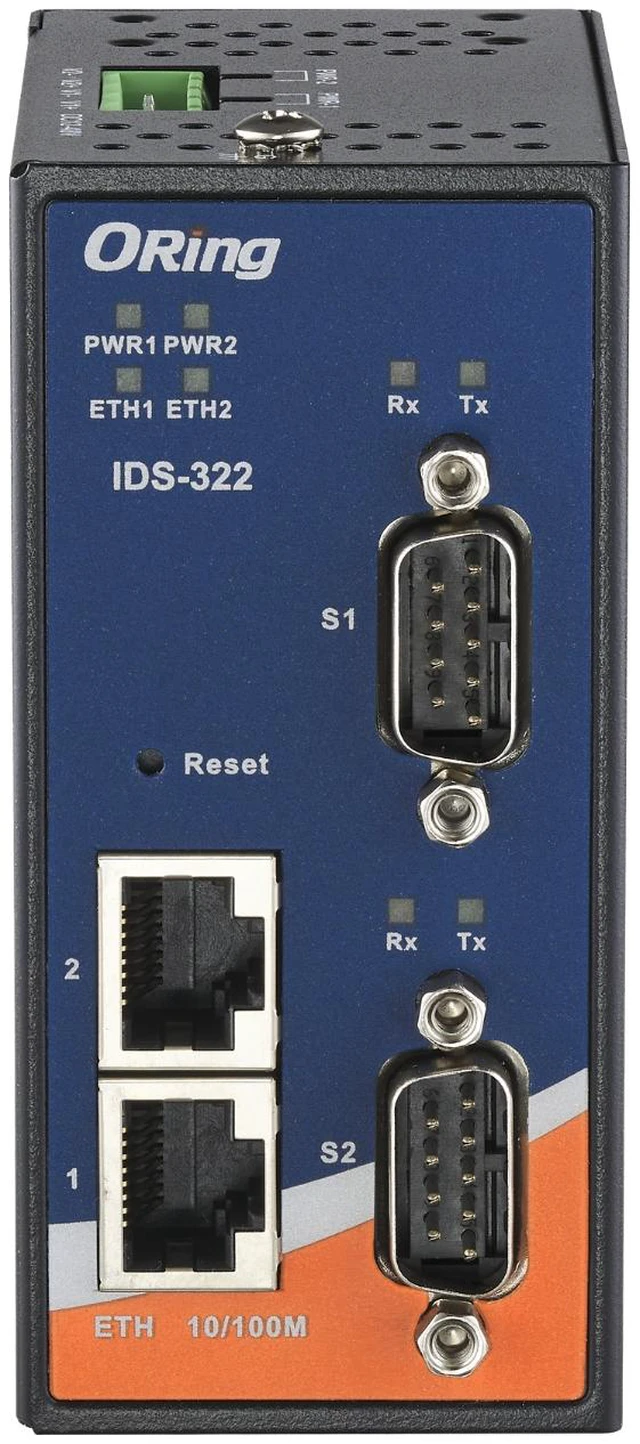

    ORing IDS-322, Serial-to-Ethernet Modbus Gateway, 2 10/100 Ethernet, 2 RS232/422/485

    • Operating Modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP and Modbus Gateway.
    • Ethernet switch mode enable Daisy Chain.
    • Security: SSL encryption, HTTPS/SSH management, IP White List access.
    • Event Warning by Syslog, Email, SNMP trap, Relay and Beeper.
    • Industrial Design: DIN-rail mount, wide operating temperature -40 to 70°C, power redundancy 12-48VDC, CE/FCC certified."
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

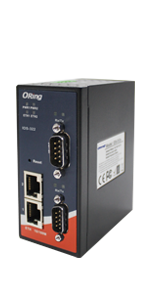

    IDS-322
    Open gateway
    Target Applications
    Automation
    Factory Automation

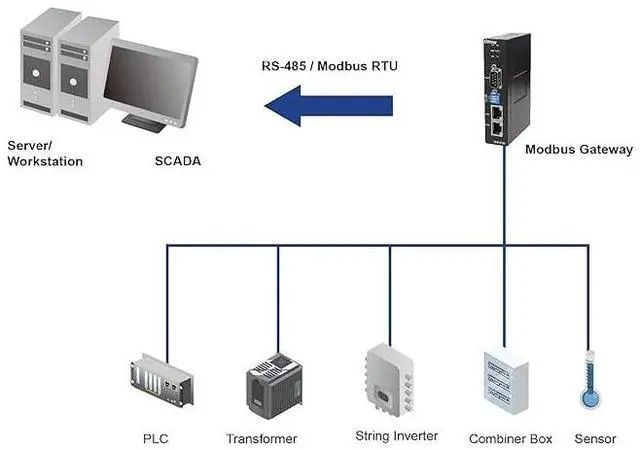

    Enabling legacy serial devices like PLCs and sensors to connect with modern Ethernet-based SCADA systems for real-time control and monitoring.

    Building Automation
    Building Automation

    Integrating HVAC, lighting, and access control systems using RS-232/422/485 interfaces into centralized IP networks for streamlined facility management.

    ITS
    Transportation Systems

    Linking ticketing machines, LED displays, and onboard diagnostics to the central control room over IP networks, ensuring seamless and reliable communication.

    Remote monitoring

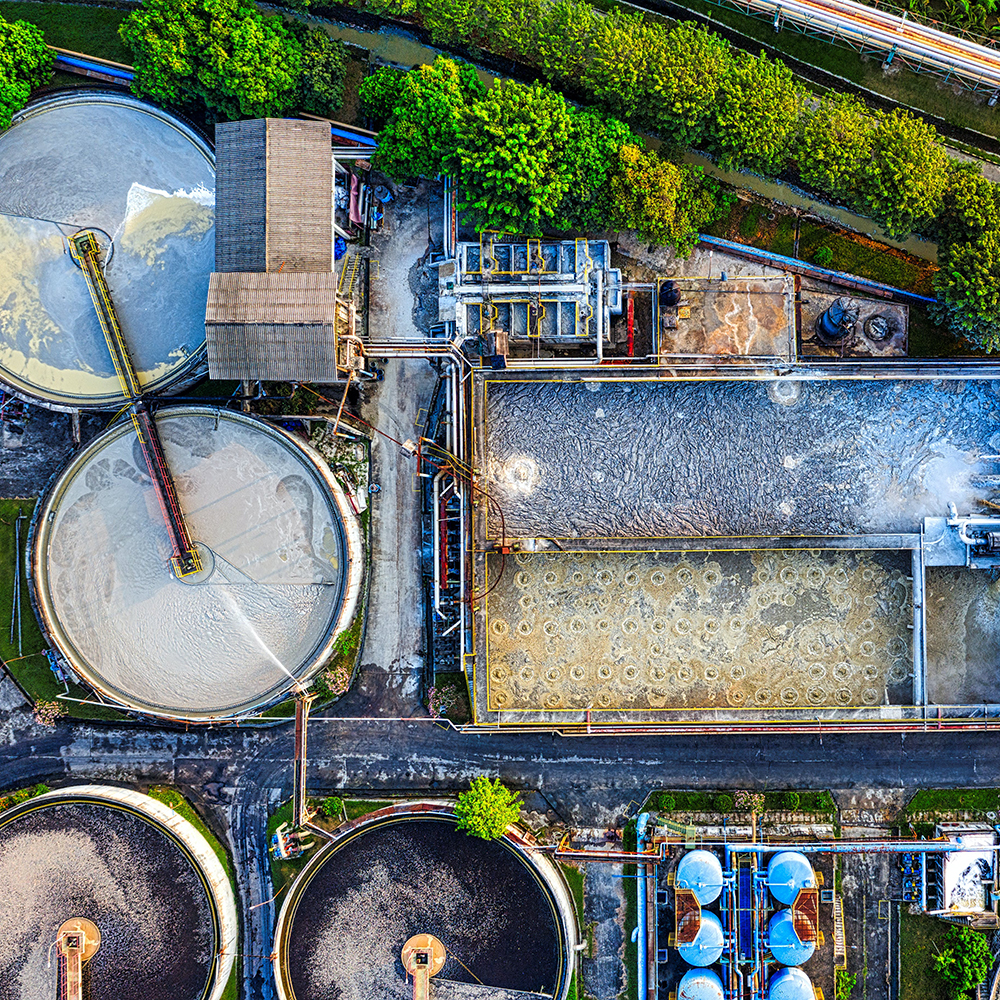

    Environmental Monitoring

    Transmitting data from remote serial-based sensors and data loggers to cloud or central systems for real-time environmental analysis and reporting.

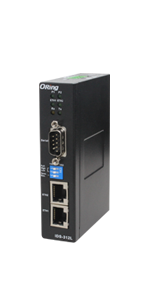

    Products
    10/100 Base-T(X) 2 2
    Serial Port DB9 x 1 DB9 x 2
    Operation Mode RS-232/422/485 RS-232/422/485
    Serial Baud Rate 1200 bps to 460.8 Kbps 110 bps to 460.8 Kbps
    Network Protocol ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
    Operating Temp. -40 to 70°C -40 to 70°C
    Power Input Dual 12-48VDC Dual 12-48VDC

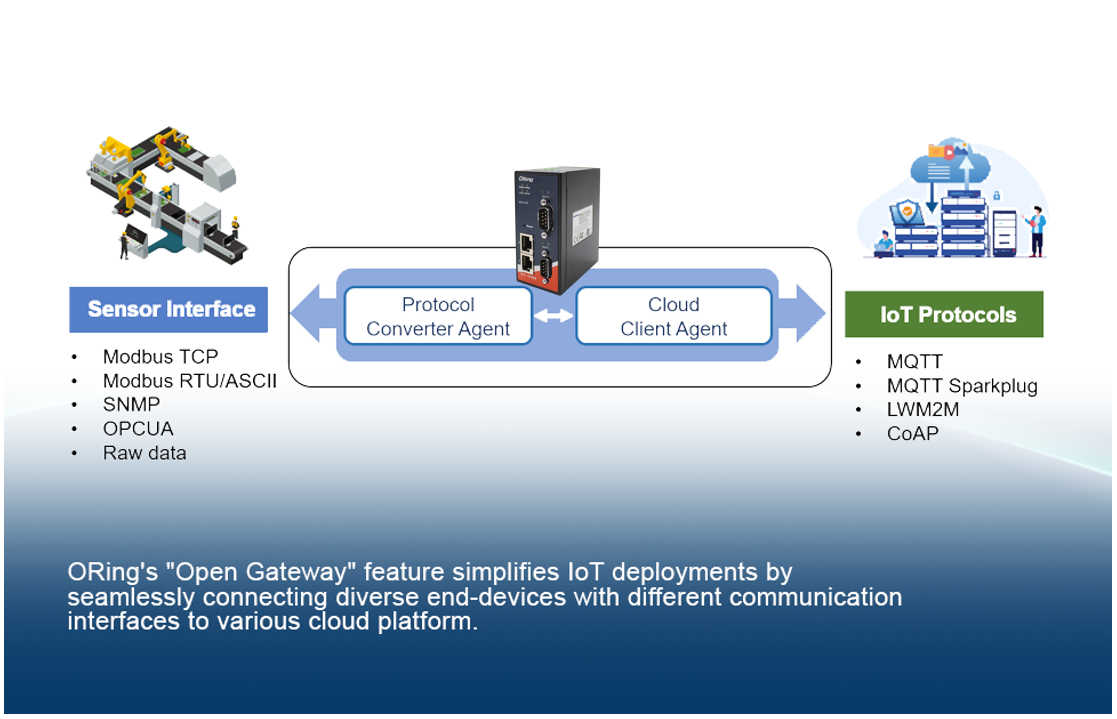

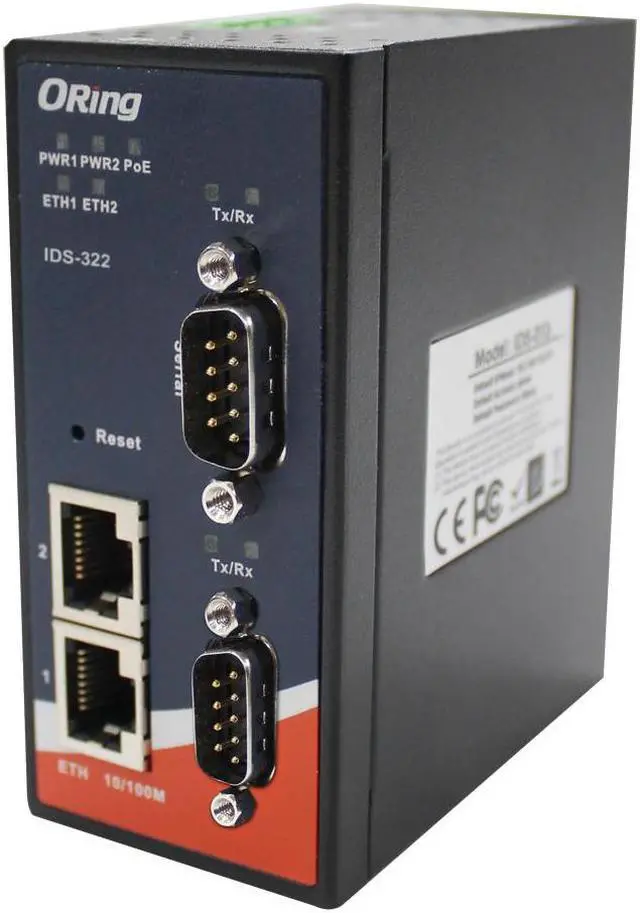

    IDS-322 is an innovative secure 2 port RS-232/422/485 to 2 port LAN device server with standard features of device server, such like TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. In addition, ORing's unique OpenGateway technology can realize the conversion of MQTT and industrial protocols, such as Modbus TCP/RTU. Further, IDS-322 features HTTPS, SSH, and SSL encryption to assure the security of critical data transmission.
    IDS-322 supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to guarantee a non-stop operation. With wide operating temperature, -40~70°C, and rugged IP-30 housing design, IDS-322 series could operate in the harsh industrial environment. "
