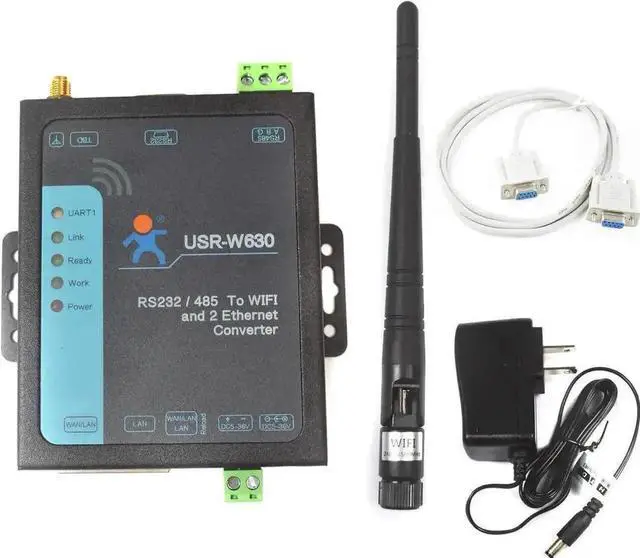

W630 Industrial RS232 / RS485 Serial to Ethernet,Serial to WiFi or WiFi to Ethernet Converter Support Dual Ethernet Ports, Modbus RTU

Dual Ethernet ports, WAN /LAN Port Supports Modbus RTU to TCP, Modbus Polling Hardware watchdog to keep working stable DC adapter and terminal power supply 5-36 V Serial to WIFI or WIFi to Ethernet

Timeout reset function, timing reset function. Supports identity packet function. Supports heartbeat packet function. Websocket function Supports Web Server, setup software, serial/network AT command to configure module. Hardware reload.

WIFI Standard: 2.4GH z 802.11 b/g/n

Work Mode: TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode. Supports AP, STA, AP+STA. Supports usrlink.

EFT: Passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc. ), it can ensure that the device hardware is not damaged.

Power: 2KV, Ethernet interface 232 485: 2 KV

USR-W630 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different socket will be added different header before they are sent to serial.

Two Ethernet ports: 1x WAN, 1x LAN/WAN. Two Ethernet ports (WAN and LAN) can be worked simultaneously
