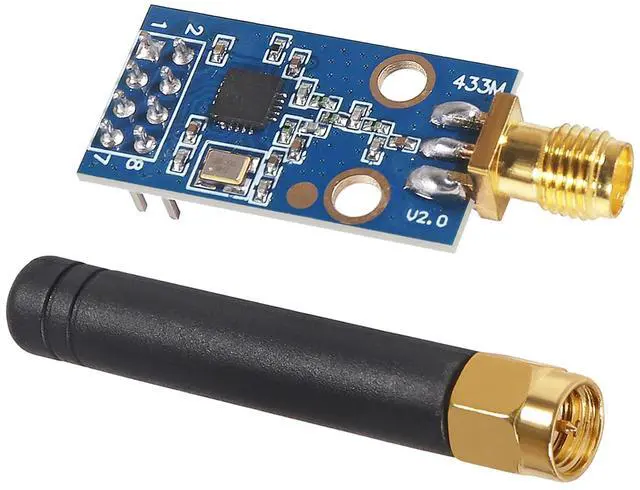

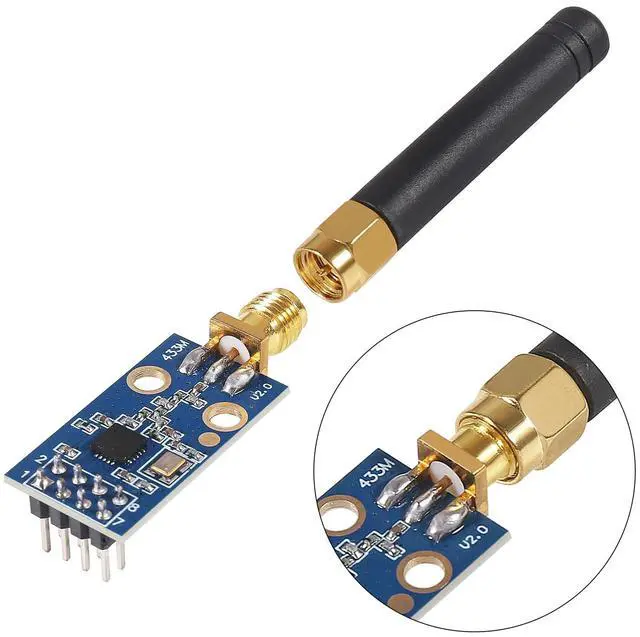

    MELIFE CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315/433/868/915MHZ

    Be the first to review this product...
    • HIGH-QUALITY MATERIALS & DURABLE: CC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources. Instantaneous maximum working current: <30mA; Maximum transmit power: 10mW (+10dBm).
    • FREQUENCY RANGE: Default frequency is 433MHz and comes with a 433MHz antenna. It could operate in the 315/433/868/915 MHz ISM/SRD band with the correct antenna and it supports various wireless protocols and standards.
    • LOW POWER CONSUMPTION: Engineered for battery-powered ecosystems, it integrates intelligent low-power modes to maximize battery longevity, ensuring seamless operation in energy-constrained environments.
    • EASY INTEGRATION: Boasting a miniature form factor and simple interface, the CC1101 transceiver module enables effortless integration into a diverse range of electronic devices, streamlining deployment for space-constrained and rapid-prototyping applications.
    • WIDELY USED: This wireless transceiver module stands out as the optimal solution for applications demanding reliable wireless connectivity. Tailored for IoT devices, remote control systems, wireless sensor networks, and it combines high-performance transmission with seamless integration.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

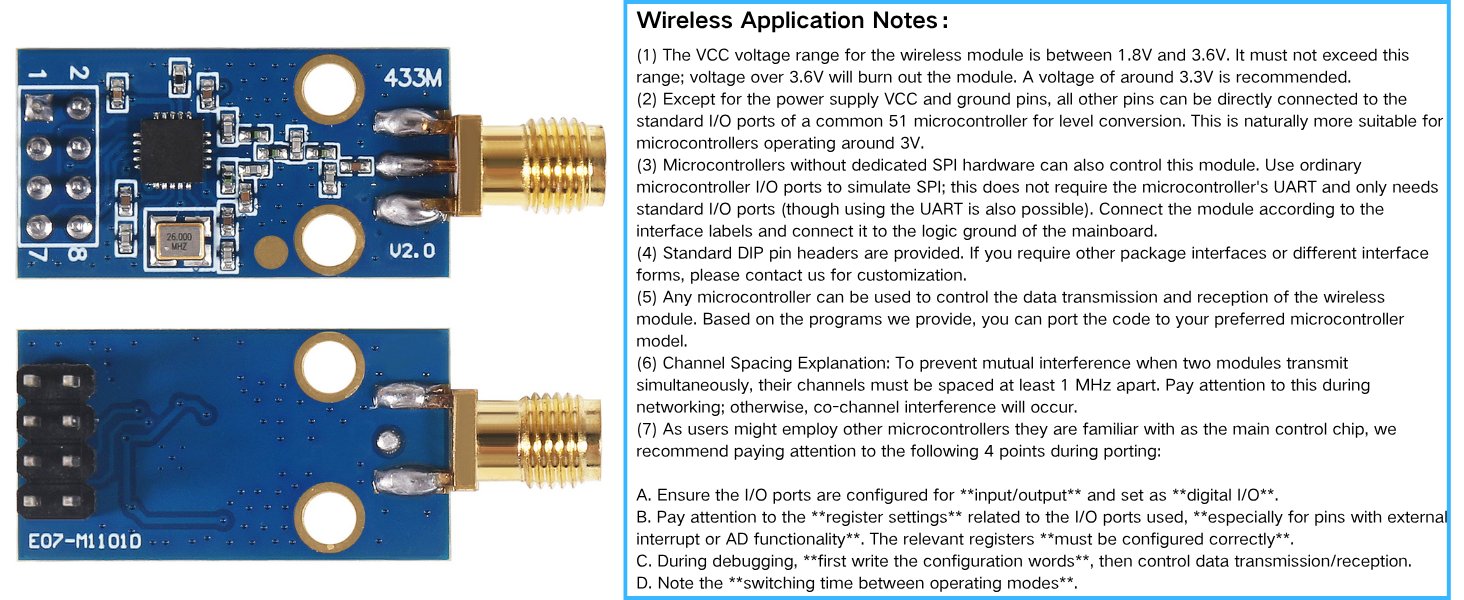

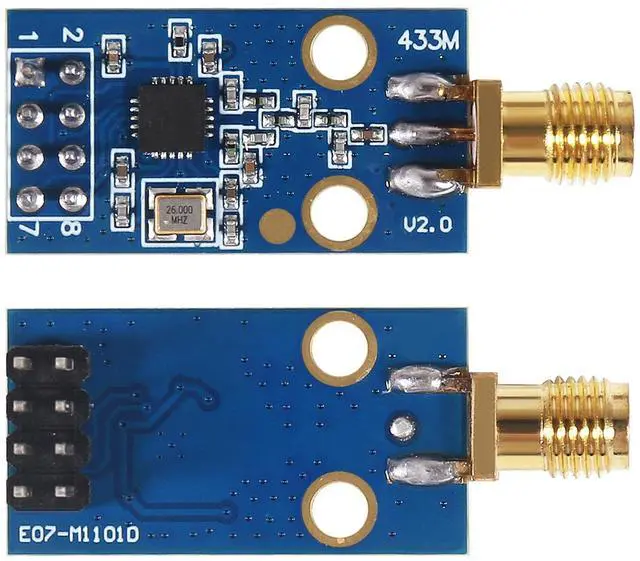

    CC1101 Wireless Module

    Continuous frequency band expansion

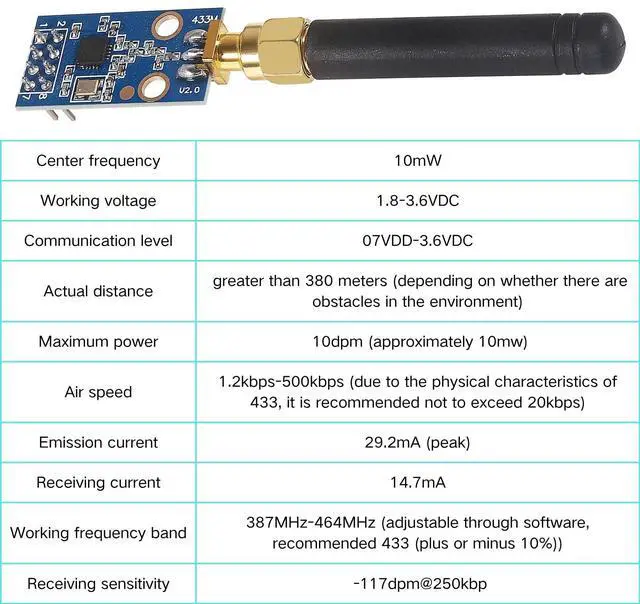

    1. CC1101 Working frequency: 387-464 MHz and 779-928 MHz. Working voltage: DC 1.8V-3.6V. Default working frequency: 433Mhz
    2. Default working frequency: 433Mhz. Receiver sensitivity -110dBm, 1200 baud
    3. Maximum instantaneous working current: <30mA; Maximum transmit power: 10mW (+10dBm)
    4. The minimum operating speed is 1.2kbps, the maximum is 500kbps
    5. Independent 64-byte RX and TX data FIFO buffer. Built-in hardware CRC error detection to ensure reliable data transmission
    6. Built-in hardware CRC error detection to ensure reliable data transmission. Support 2-FSK, GFSK and MSK modulation; RSSI signal strength detection and carrier sensing functions Low power consumption.

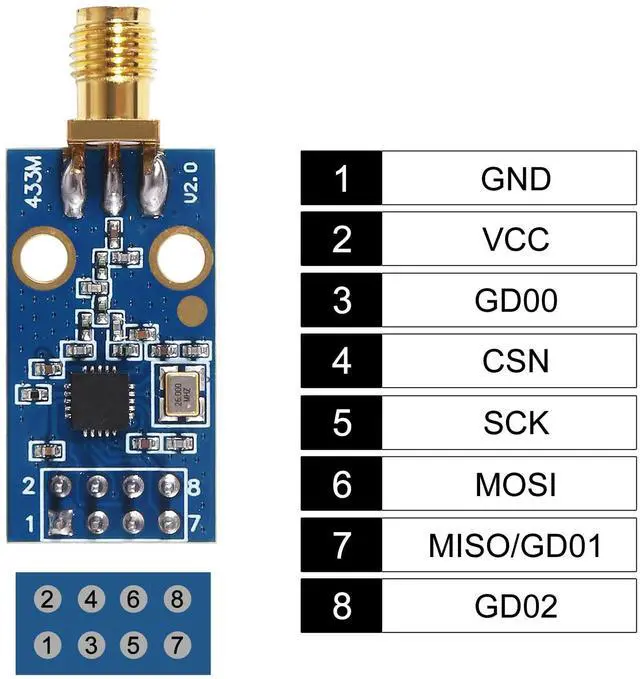

    7. Mailing address (256) Working frequency can be programmed via SPI
    8. Programmable output power, supporting all frequencies up to +10 dBm.
    9. WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption.
    10. Fast frequency synthesizer with proper frequency hopping system.

    CC1101 Wireless Module

    Continuous frequency band expansion

    1. CC1101 Working frequency: 387-464 MHz and 779-928 MHz. Working voltage: DC 1.8V-3.6V. Default working frequency: 433Mhz
    2. Default working frequency: 433Mhz. Receiver sensitivity -110dBm, 1200 baud
    3. Maximum instantaneous working current: <30mA; Maximum transmit power: 10mW (+10dBm)
    4. The minimum operating speed is 1.2kbps, the maximum is 500kbps
    5. Independent 64-byte RX and TX data FIFO buffer. Built-in hardware CRC error detection to ensure reliable data transmission
    6. Built-in hardware CRC error detection to ensure reliable data transmission. Support 2-FSK, GFSK and MSK modulation; RSSI signal strength detection and carrier sensing functions Low power consumption.
    7. Mailing address (256) Working frequency can be programmed via SPI
    8. Programmable output power, supporting all frequencies up to +10 dBm.
    9. WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption.
    10. Fast frequency synthesizer with proper frequency hopping system.

    1


    Product information

    Package Dimensions 3.11 x 2.28 x 0.2 inches
    Item Weight 0.352 ounces
    Manufacturer MELIFE
    Date First Available May 8, 2025
