USR-TCP232-306 Industrial Serial to Ethernet Converter Device Server TCP/IP to RS232 RS485 RS422 10/100Mbps RJ45 Network Adapter Modbus RTU to TCP Gateway Web Setup Remote Firmware Upgrade

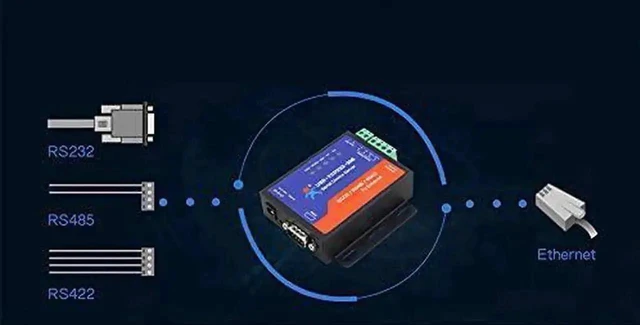

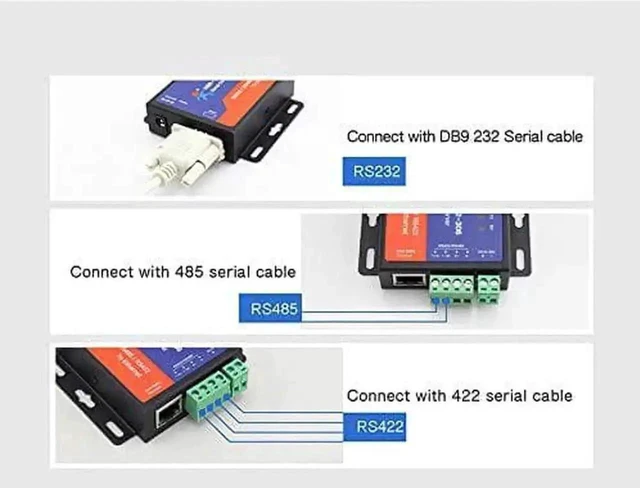

- Three-in-one serial conversion combines RS232, RS485, and RS422 interfaces, supporting connections with multiple types of traditional serial equipment.
- Serial data is converted into standard TCP/IP network signals, allowing offline serial equipment to access local networks for remote transmission and monitoring.

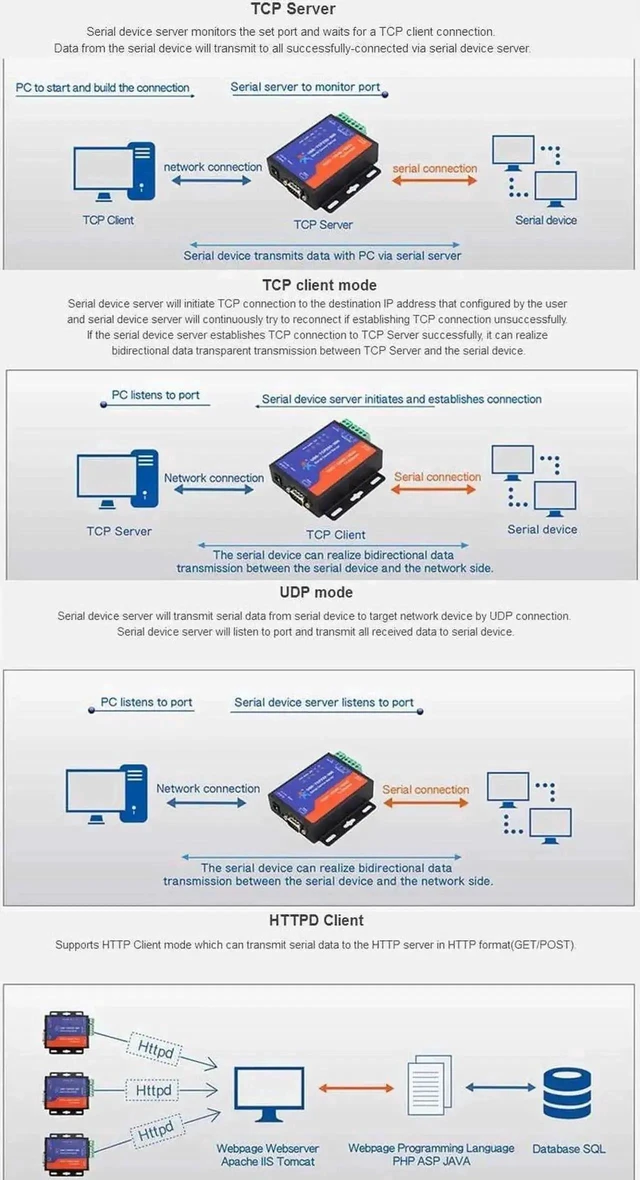

- TCP Server/Client, UDP transmission, and Modbus gateway modes provide flexible communication options for industrial serial networking requirements.
- Modbus RTU to TCP gateway functionality supports protocol conversion for PLCs, power meters, sensors, and monitoring equipment.
- The adaptive RJ45 Ethernet port supports 10/100Mbps wired transmission for serial data networking across local area networks.
- A broad 600bps to 230400bps baud-rate range accommodates various serial communication requirements and connected equipment settings.
- Built-in anti-surge isolation circuitry helps protect communication operation in factory environments with electrical interference concerns.
- Automatic reconnection and watchdog functions help restore communication after interruptions for continuous online operation.

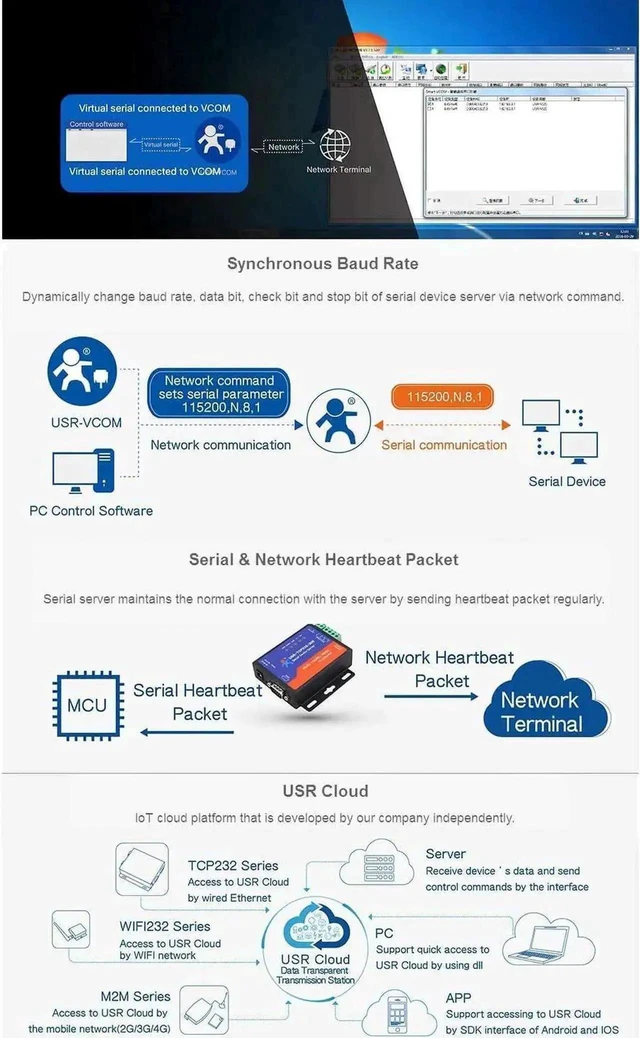

- Parameters can be adjusted through an embedded web page or virtual serial port tool, while firmware can be upgraded remotely without disassembly.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:

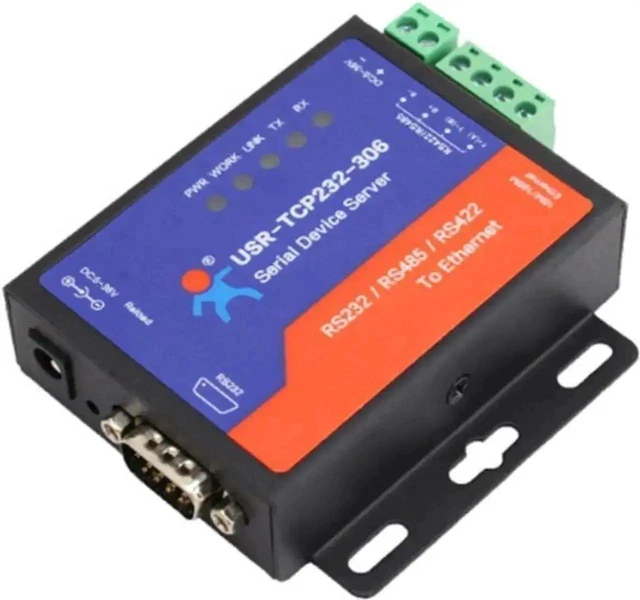

The USR-TCP232-306 is an industrial serial-to-Ethernet converter that transforms RS232, RS485, and RS422 serial data into standard TCP/IP network signals. It enables traditional serial equipment to access local area networks for remote data transmission and monitoring in automation, environmental monitoring, access control, equipment maintenance, and data acquisition applications.
Core Selling Points:
Three integrated serial interfaces support RS232, RS485, and RS422 device connections. TCP Server/Client, UDP transmission, and Modbus gateway modes support flexible communication and protocol conversion. The adaptive 10/100Mbps wired Ethernet connection provides network access through an RJ45 port. Built-in isolation protection, anti-surge circuitry, and watchdog automatic reconnection support continuous operation in industrial environments. Configuration is available through an embedded web page or virtual serial port software, with remote firmware upgrades without disassembling the unit.
Technical Specifications:
Model: USR-TCP232-306
Serial interfaces: RS232, RS485, RS422
Network interface: Adaptive 10/100Mbps Ethernet via RJ45 port
Communication modes: TCP Server, TCP Client, UDP transmission, Modbus gateway
Supported baud rates: 600bps to 230400bps
Functions: Serial data to TCP/IP conversion, Modbus RTU to TCP gateway, web configuration, virtual serial port configuration, remote firmware upgrade
Protection and stability: Built-in isolation protection, anti-surge circuit, watchdog automatic reconnection
Before Purchase:
Confirm that your equipment uses RS232, RS485, or RS422 serial communication and that the intended network connection is available through an RJ45 Ethernet port. Check that the required communication mode, Modbus gateway function, and baud rate from 600bps to 230400bps match your application before purchase.
