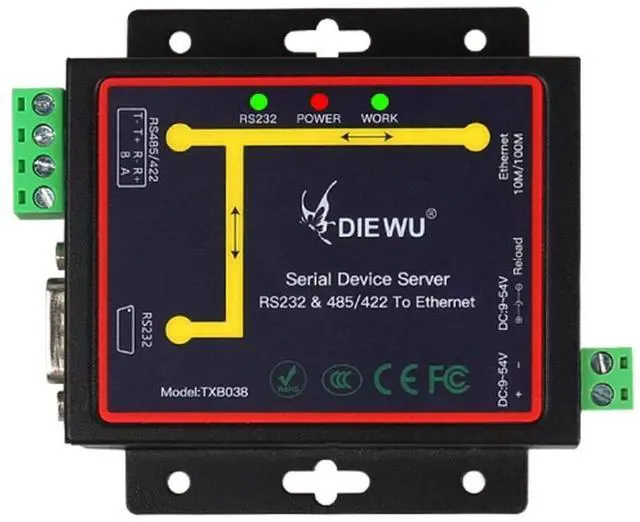

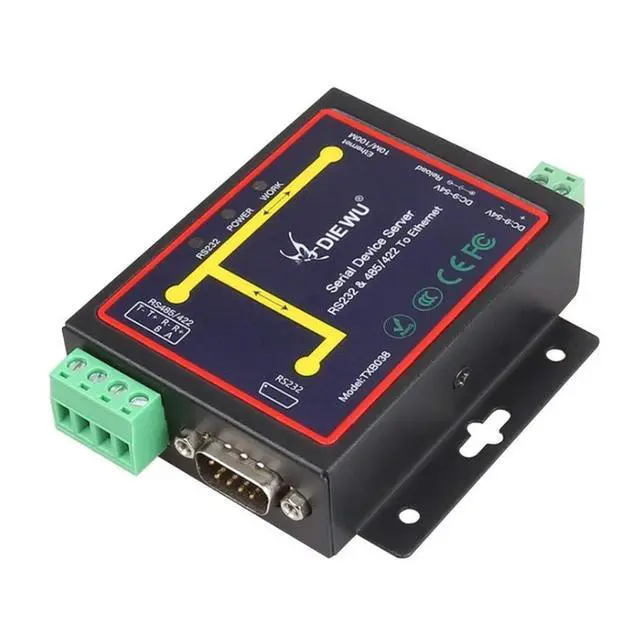

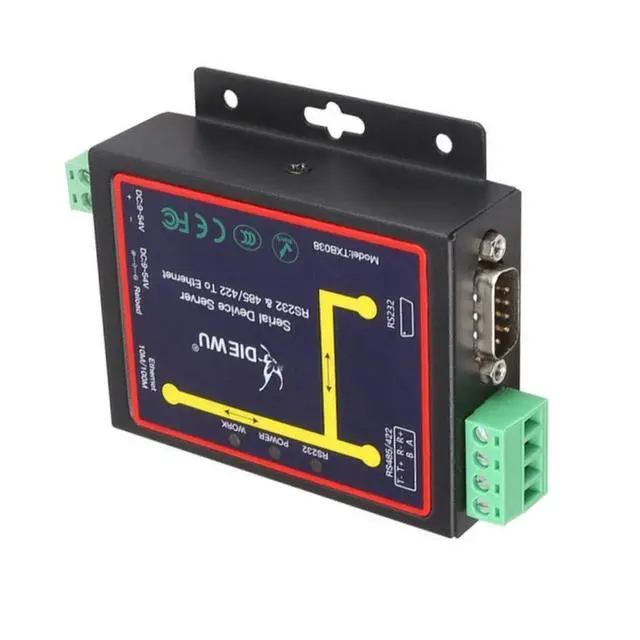

RJ45 to RS232 RS485 RS422 Industrial Male Converter TCP/UDP Serial RS232 RS485 to Ethernet Device Server
- Port number: 1 port 10/100M Auto MDI-MDIX RJ45?1port RS232,1port RS485/422; Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az; Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP; Data rate: 10/100M; Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description: Model
number: TXB038
Chipset: IP210

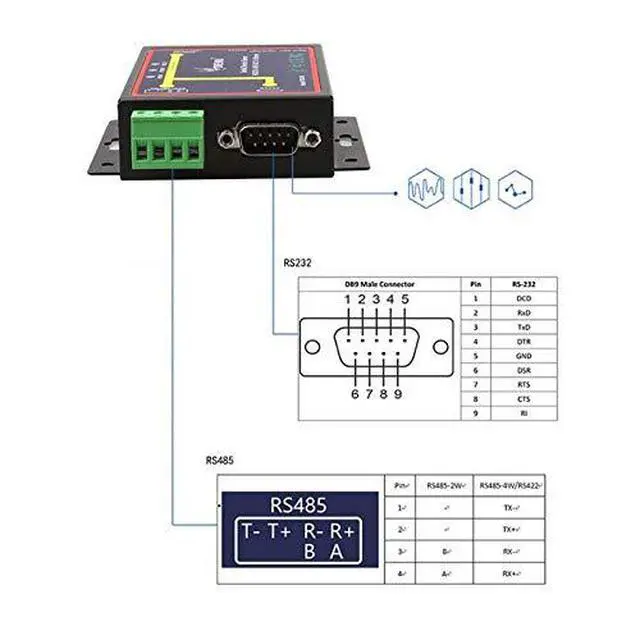

Port number: 1 port 10/100M Auto MDI-MDIX RJ45? 1port RS232, 1port
RS485/422 Standard: IEEE 802.3? IEEE 802.3 u? IEEE 802.3 x? IEEE 802.3 az
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5
UTP Data rate: 10/100M
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: Link/Act, Power, System, TX/RX
Baud rate: 110bps~256000bps
Operation modes: TCP Server, TCP Client, UDP
Dimension: 86*84*25mm
Power Input: DC9V-54V
Power Consumption: Max 1.8W
Environment Operating Temperature: -10? -55?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing) Other functionRS485 support full duplex and half duplex Build load default key 3.1
Device Default Parameters:
ID: admin
Password: system
IP address: 192.168.
2.1 Operation mode: TCP server
Transmission Mode: RS232
Baud rate: 57600bps
UART parameters: 57600, 8, N, 1 Local port
TCP: 23
UDP: 21 4? Load default

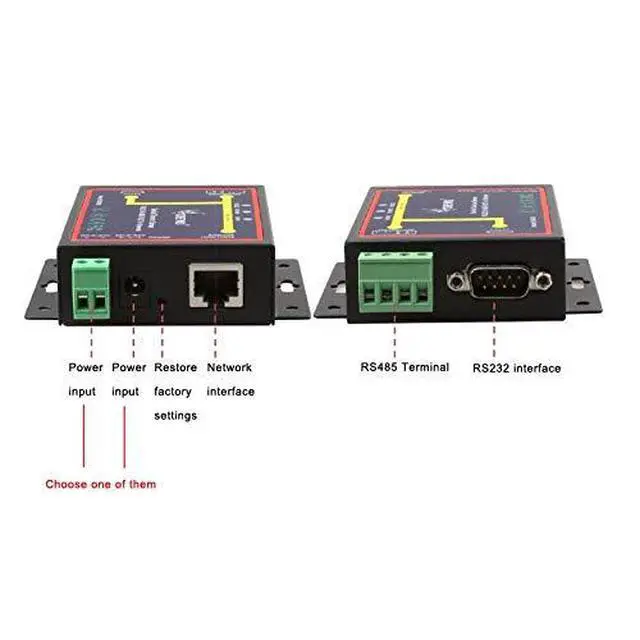

1. Power off the device 2. hold the load default button. 3. power on the device, hold the button for 10 seconds, then release default button
number: TXB038
Chipset: IP210
Port number: 1 port 10/100M Auto MDI-MDIX RJ45? 1port RS232, 1port
RS485/422 Standard: IEEE 802.3? IEEE 802.3 u? IEEE 802.3 x? IEEE 802.3 az
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5
UTP Data rate: 10/100M
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: Link/Act, Power, System, TX/RX
Baud rate: 110bps~256000bps
Operation modes: TCP Server, TCP Client, UDP
Dimension: 86*84*25mm
Power Input: DC9V-54V
Power Consumption: Max 1.8W
Environment Operating Temperature: -10? -55?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing) Other functionRS485 support full duplex and half duplex Build load default key 3.1
Device Default Parameters:
ID: admin
Password: system
IP address: 192.168.
2.1 Operation mode: TCP server
Transmission Mode: RS232
Baud rate: 57600bps
UART parameters: 57600, 8, N, 1 Local port
TCP: 23
UDP: 21 4? Load default
1. Power off the device 2. hold the load default button. 3. power on the device, hold the button for 10 seconds, then release default button
