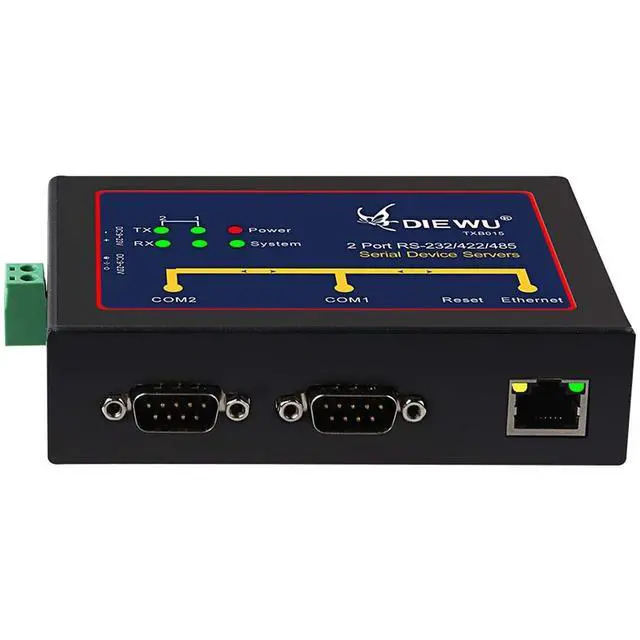

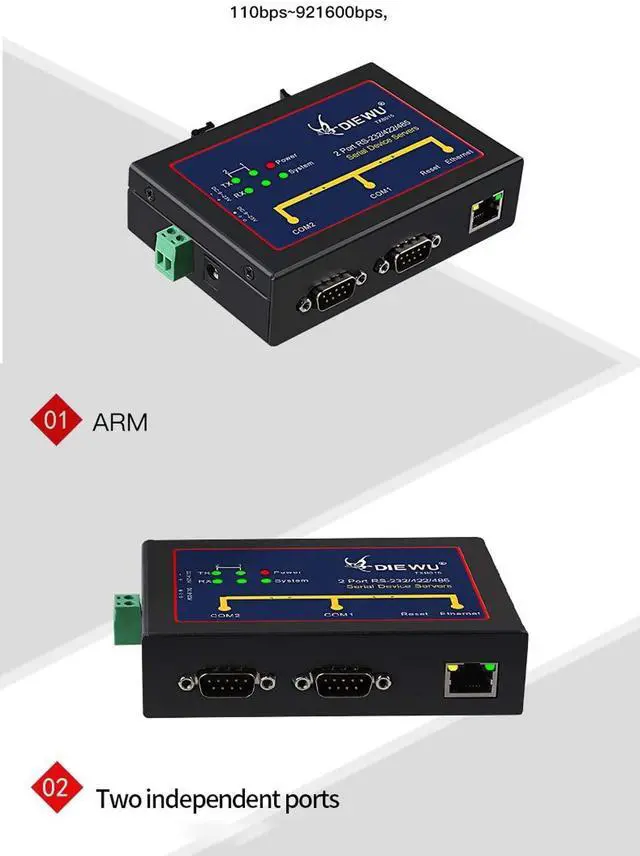

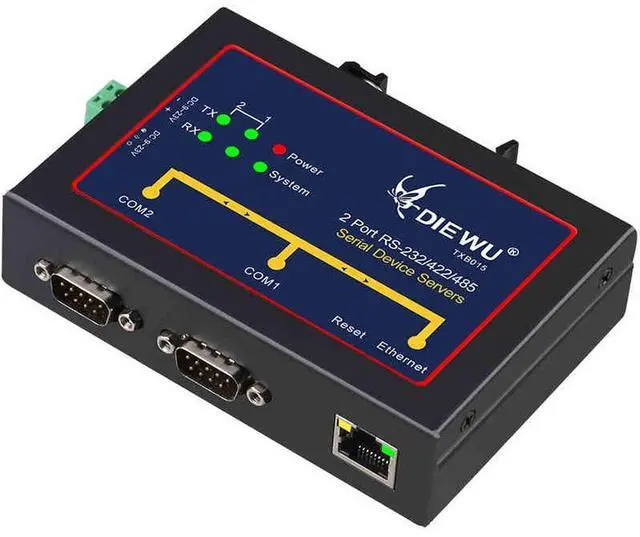

Industrial 2 Ports RS232/422/485 Serial Device Server Converter Support VCOM/TCP Server/TCP Client/UDP Mode
- - Chipset: TX214; - Port number: 1 port 10/100M Auto MDI-MDIX RJ45; - Operation modes; VCOM,TCP Server, TCP Client, UDP; - Data rate: 10/100M; - Other function: DIN Rail type
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product specification: -
Model number: TXB015 -
Chipset: TX214 -
Port number: 1 port 10/100M Auto MDI-MDIX
RJ45 - Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x -
UART port: 2* COM PORTS -
Data rate: 10/100M -
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps -
LED Indicator: Link/Act, Power, TX/RX -
Baud rate: 110bps~2304000bps - Operation modes; VCOM, TCP Server, TCP Client, UDP -
Dimension: 119*81*31mm -
Power Input: DC12V/1A -
Power Consumption: Max 3.5W -
Environment Operating Temperature: -10? -60?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -20? -70?
Relative Humidity: 5%-90%(non-condensing) -
Other function: DIN Rail type
ID: admin
PW: system
IP Address: 192.168.
2.1 Subnet mask: 255.255.
255.0 Working mode: VCOM
Serial port baud rate: 921600bps
Serial Port parameters: 921600, 8, N, 1
Model number: TXB015 -
Chipset: TX214 -
Port number: 1 port 10/100M Auto MDI-MDIX
RJ45 - Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x -
UART port: 2* COM PORTS -
Data rate: 10/100M -
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps -
LED Indicator: Link/Act, Power, TX/RX -
Baud rate: 110bps~2304000bps - Operation modes; VCOM, TCP Server, TCP Client, UDP -
Dimension: 119*81*31mm -
Power Input: DC12V/1A -
Power Consumption: Max 3.5W -
Environment Operating Temperature: -10? -60?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -20? -70?
Relative Humidity: 5%-90%(non-condensing) -
Other function: DIN Rail type
ID: admin
PW: system
IP Address: 192.168.
2.1 Subnet mask: 255.255.
255.0 Working mode: VCOM
Serial port baud rate: 921600bps
Serial Port parameters: 921600, 8, N, 1
