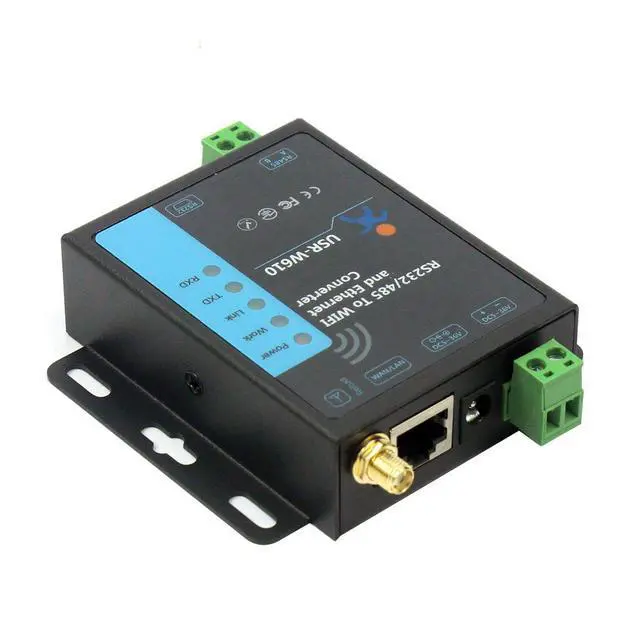

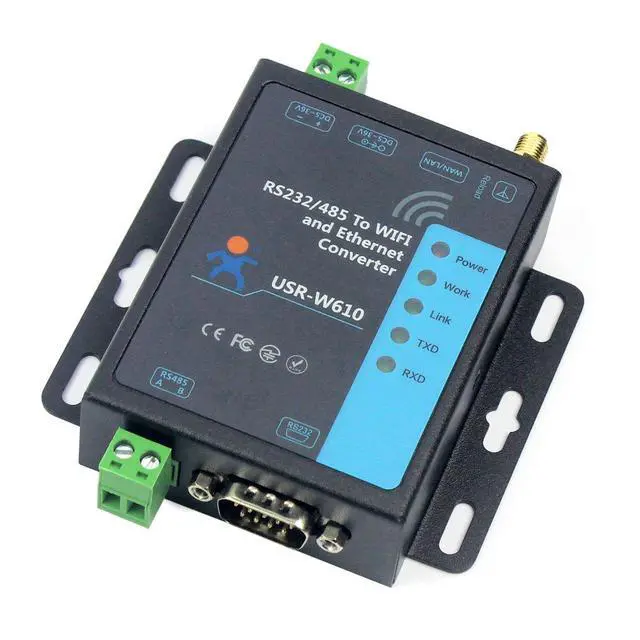

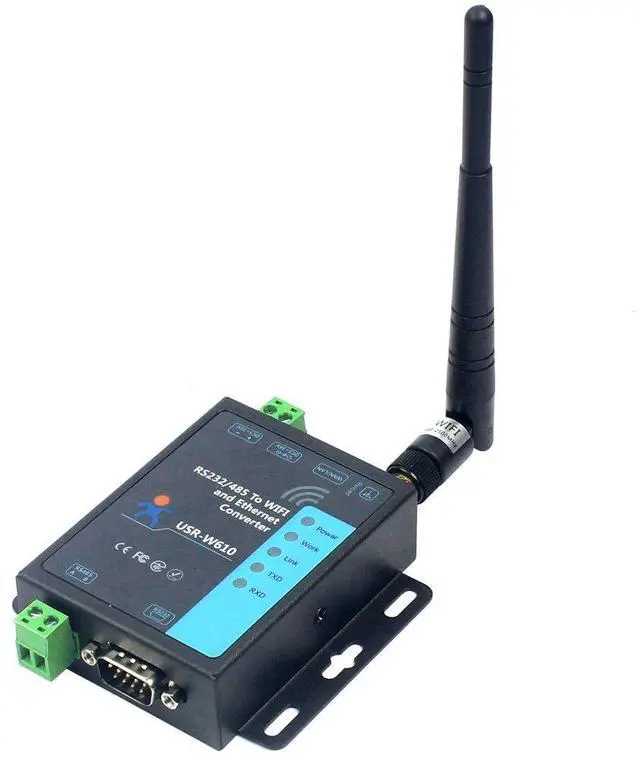

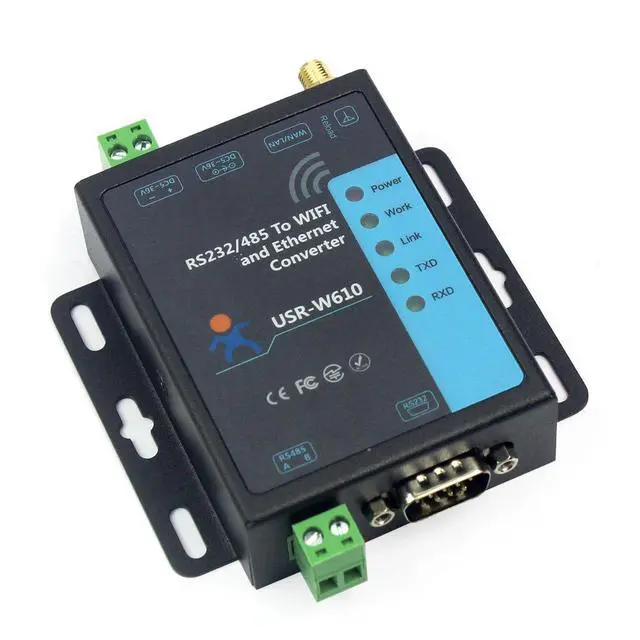

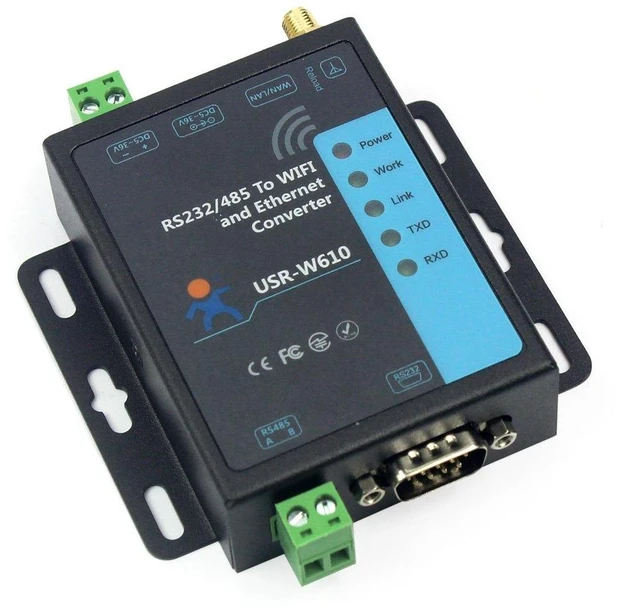

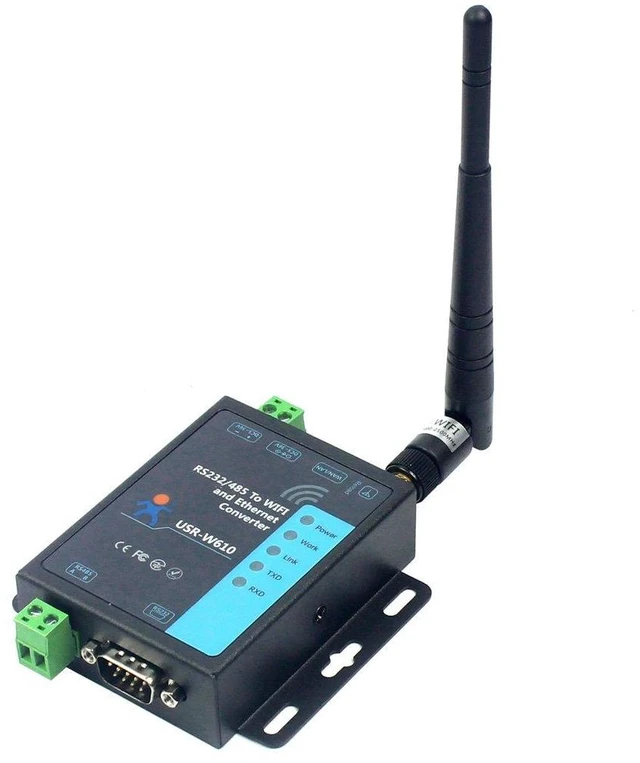

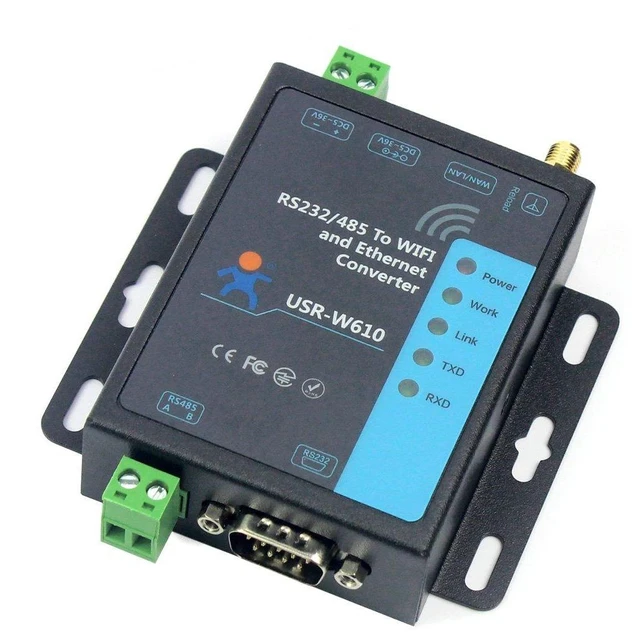

Serial to WiFi Ethernet Wireless Converter RS232 RS485 Serial Server(USR-W610)

Product description 1-port RS-232 or RS485 to 802.11 b/g/n WLAN serial device server USR-W610 is both an RS485 to WiFi Converter and an RS232 to WiFi Converter, which can realize the bi-directional transparent data transmission between RS232/RS485, WiFi and Ethernet. Links serial and Ethernet devices to an IEEE 802.11 b/g/n network Supports TCP server/client, UDP server/client, https client, Virtual COM Supports Modbus RTU to Modbus TCP Supports multiple networking mode with 1 RJ45 ethernet port Support WIFI 802.11 b/g/n wireless standards, RS232/RS485to 802.11 a/b/g/n WLAN Serial Device Server Support TCP Server/TCP Client/UDP Server/UDP Client/https Client mode.

Support AP, STA, AP+STA. Support RS232 or RS485 serial ports. Support electrostatic protection. Support hardware reload. Support identity packet function. Support heartbeat packet function. Support Websocket function. Support usrlink. Support timeout reset function, timing reset function. Support Web Server, setup software, serial/network AT command to configure module. Pass the EFT test RS232 to WiFi converter/RS485 to WiFi converter USR-W610 has passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc. ), it can ensure that the device hardware is not damaged.

Power: 2KV Ethernet interface 232 485: 2 KV Anti-static Prevent electrostatic damage equipment.

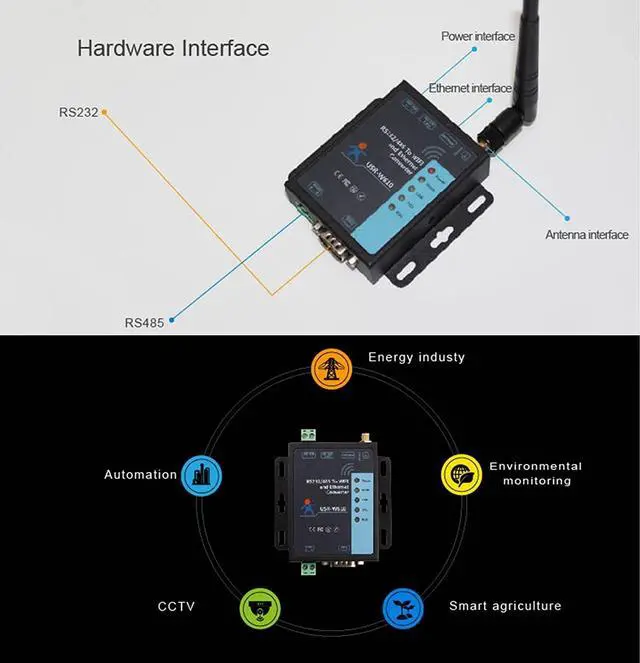

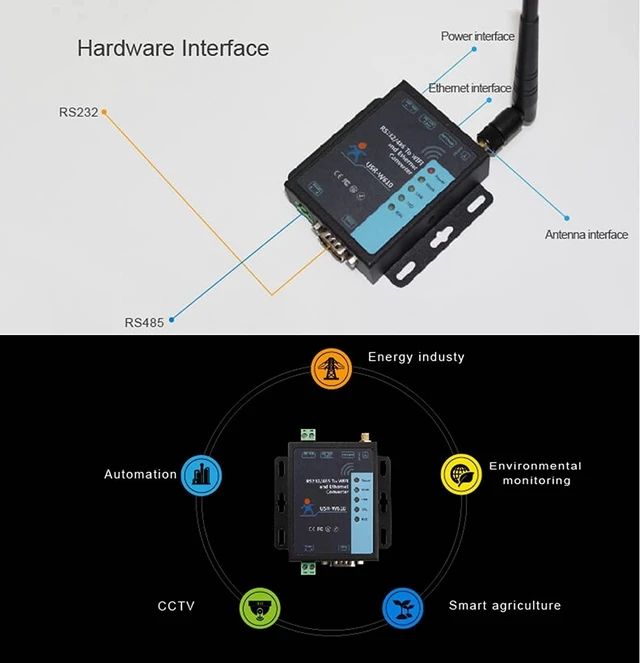

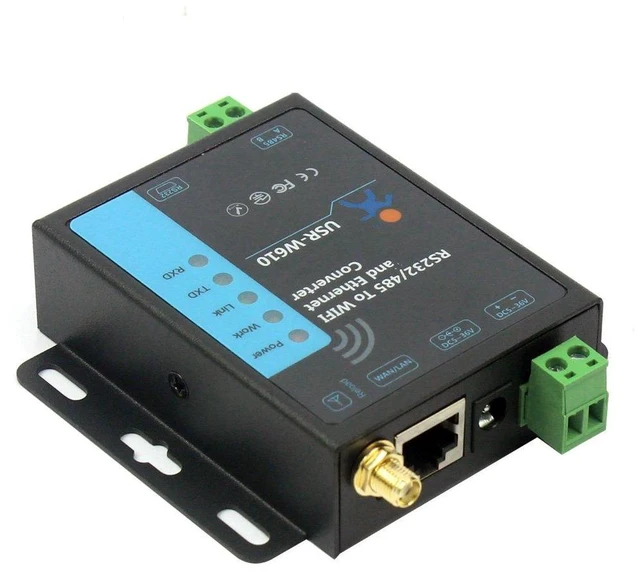

Such as: dust electrostatic, electric arc environment etc. Air± 15KV Contact ± 8KV WatchDog Built in WatchDog, hardware circuit 24 hours stable operation Regular Restart Function USR-W610 supports timing and timeout restart function, which makes the system run more stable. Hardware Interface RS232 port RS485 port Antenna Port Ethernet Port Power Port
Wi-Fi WiFi: 802.11 b/g/n
Frequency Range: 2.412GH z- 2.484GH z
Transmit Power 802.11 b: +19dBm
(Max) 802.11 g: +18dBm
(Max) 802.11 n: +17dBm (Max) Receive
Sensitivity 802.11 b: -89dBm
802.11 g: -81dBm

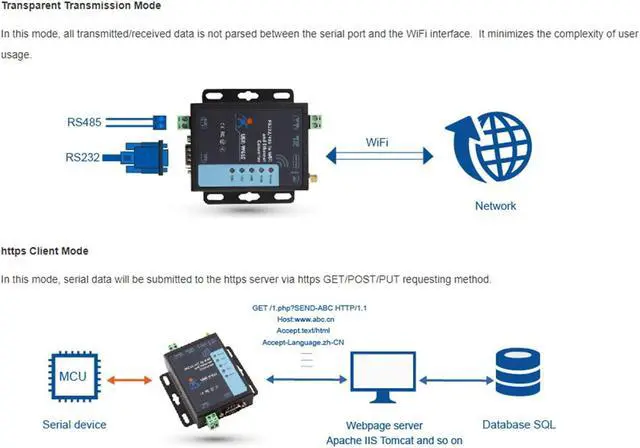

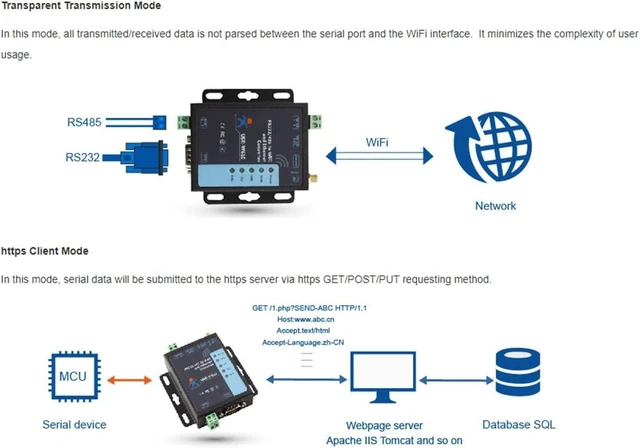

802.11 n: -73dBm AT Command Mode In this mode, user can query/set parameters via serial AT commands or network AT commands. Heartbeat Packet Function USR-W610 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet. Serial port heartbeat packet notifies the serial device that USR-W610 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push. Transparent Transmission Mode In this mode, all transmitted/received data is not parsed between the serial port and the WiFi interface. It minimizes the complexity of user usage. https Client Mode In this mode, serial data will be submitted to the https server via https GET/POST/PUT requesting method. Modbus Polling Mode In this mode, this RS232/RS485 WiFi serail server supports Modbus TCP and Modbus RTU mutual conversion. Socket Distribution Protocol USR-W610 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different socket will be added different header before they are sent to serial.
