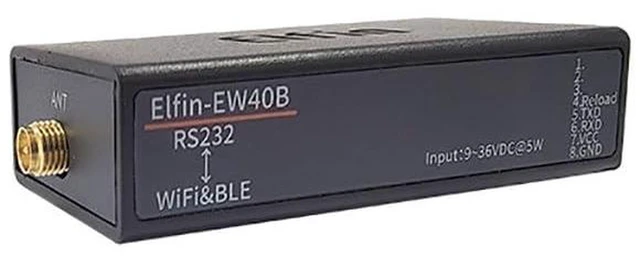

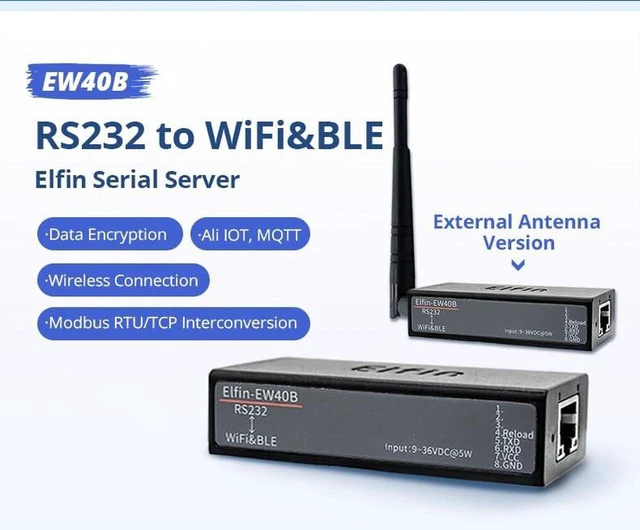

AJMRTC Elfin-EW40B-0 RS232 to WiFi & BLE Serial Server Gateway, External SMA Antenna, STA / AP / AP+STA Mode, Modbus RTU to Modbus TCP Converter, Industrial IoT Serial Wireless Module (Server Only)
- - Dual wireless: 2.4G WiFi 802.11 b/g/n + BLE 5.0 for serial data transmission and network configuration
- - Supports STA, AP, AP+STA mixed working modes, flexible deployment for industrial IoT network
- - Modbus RTU to Modbus TCP conversion function, convenient for PLC and industrial sensor networking
- - External SMA antenna port for better signal coverage, supports web page and tool configuration
- - Wide DC 5V~36V power input, supports TCP/UDP/MQTT/HTTP, TLS encryption for secure data
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC Elfin-EW40B-0 serial server converts RS232 serial signals into WiFi and Bluetooth BLE wireless signals. It works as a Modbus gateway to bridge traditional RTU serial devices to TCP IP networks. Bluetooth BLE is available for quick network provisioning. It supports remote parameter configuration, OTA firmware upgrade and multiple network protocols. It is widely used for industrial automation, PLC data collection, smart instruments and remote monitoring systems. Note this listing is server unit only, cables and accessories are not included.
Specifications
- Brand: AJMRTC
- Model: Elfin-EW40B-0
- Serial Interface: RS232
- Wireless: WiFi 2.4G 802.11 b/g/n + BLE 5.0
- Antenna: External SMA antenna interface
- WiFi Modes: STA / AP / AP+STA
- Protocol: Modbus RTU / Modbus TCP, TCP, UDP, MQTT, HTTP, WebSocket
- Security: TLS 1.2, AES 128-bit encryption
- Power Input: DC 5V ~ 36V
- Baud Rate: Up to 230400 bps
- Configuration: Web UI + IoT service tool, Smart-Link
- Firmware: Web OTA upgrade supported
- Dimension: 68.5 x 35 x 17.8 mm
- Application: Industrial IoT, PLC, sensor, remote data acquisition
- Package Includes: 1 x Elfin-EW40B-0 Serial Gateway (Server Only)
