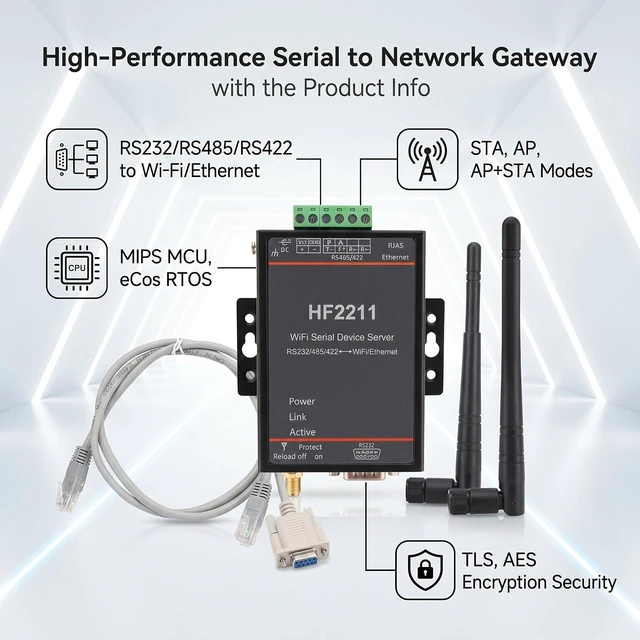

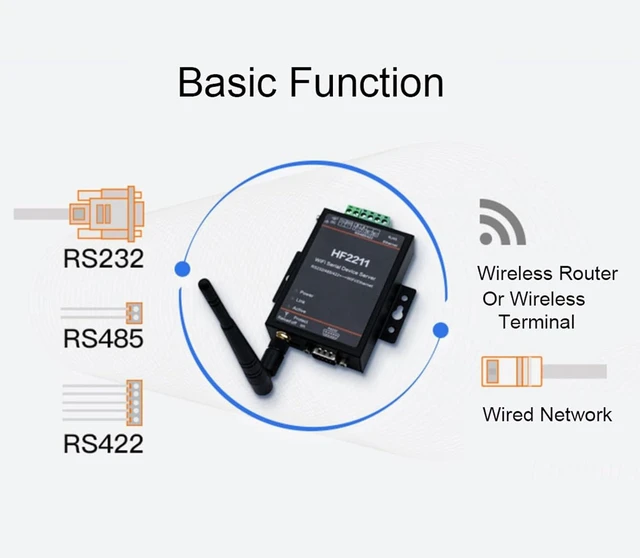

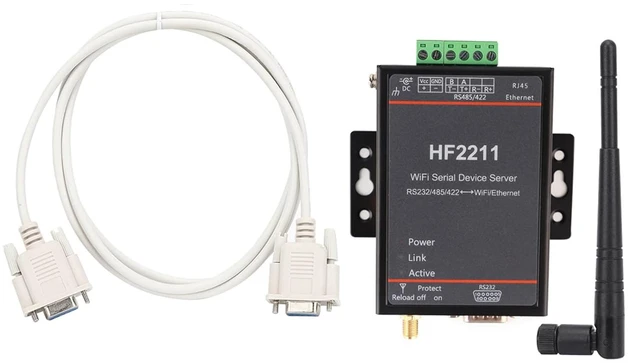

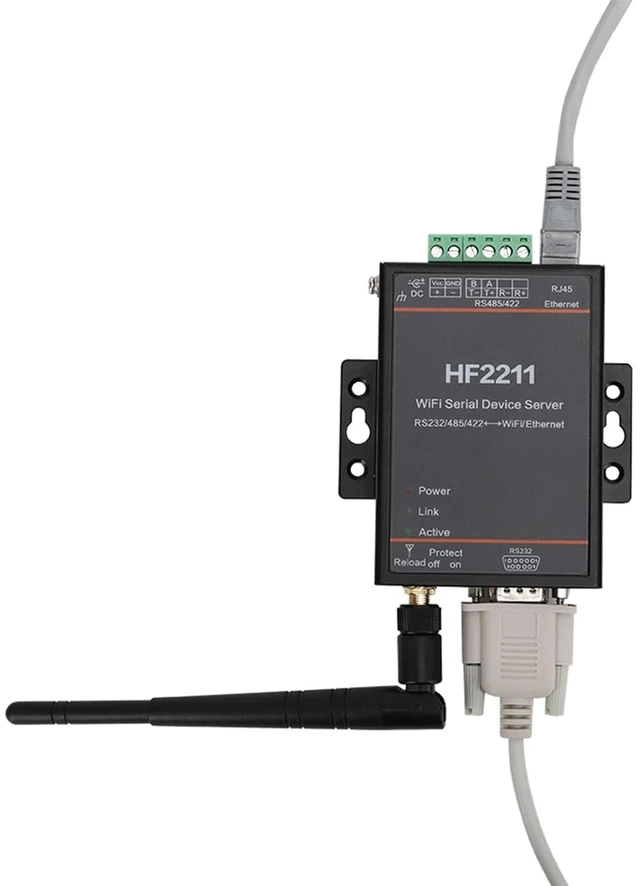

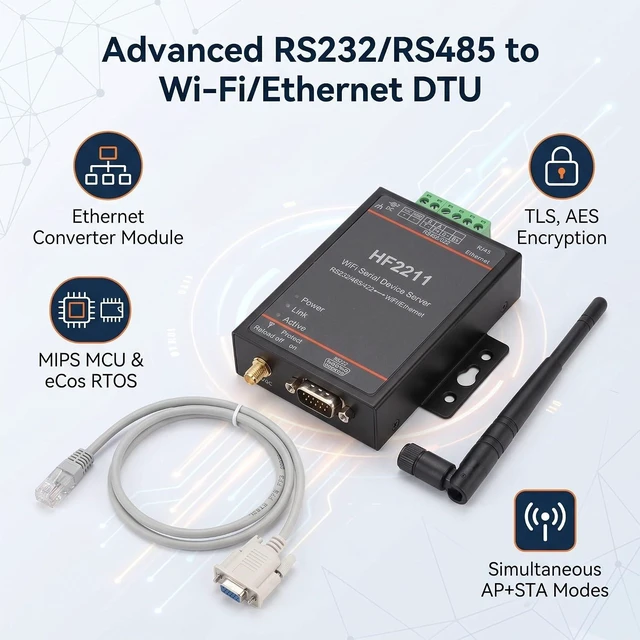

HF2211, HF2211 Serial Device Server, RS232/485/422 to WiFi and Ethernet DTU Short Message Communication Module, 5-36VDC Serial Data, Device Servers
- Using MCU (8MB for SRAM) and 4MB Flash, based on eCos operating system. Passed FCC_CE_RoHS_SRRC_REACH certification.
- NETWORK PROTOCOLS: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL

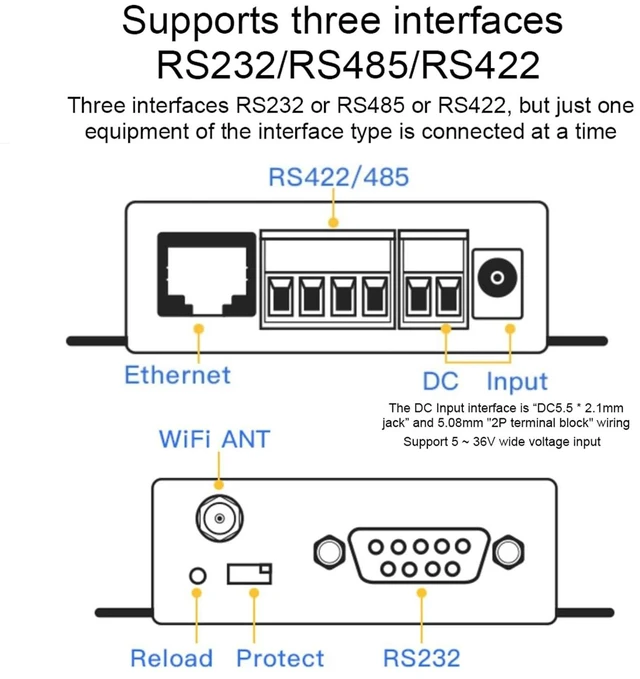

- Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 / 485/422).Interface Standard: RS232: DB9 pin type.RS485 / RS422: 5.08mm terminal block.Baud Rate: 600-230400bps.Data Bits: 8.Stop Bits: 1, 2.Parity: None, Even, Odd, Space, Mark.
- VIRTUAL SERIAL PORT SOFTWARE: For Windows XP / for Vista / 7/8/10 (32bit 64bit), for Win Server 2003/2008/2012. Configuration Method: WEB page, CLI command, for XML file , Telnet configuration, IOTService software
- Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 / 485/422) Interface Standard: RS232: DB9 pin type RS485 / RS422: 5.08mm terminal block Baud Rate: 600-230400bps Data Bits: 8 Stop Bits: 1, 2 Parity: None, Even, Odd, Space, Mark Wi-Fi Interface Parameters: Standard: 802.11 b / g / n Network Mode: for STA / for AP / for STA + AP Network Protocol: For TCP / for UDP, etc. Maximum Number Of Connections: Maximum 15 STA
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
- 1. Support routing / bridge mode network architecture.
- 2. Support webpage mode, PC software easy configuration.
- 3. Support data for TLS / for AES / for DES3 security encryption configuration.
- 4. Support web OTA wireless upgrade.
Specification:
Item Type: HF-2211 Serial Port Server
Model: HF-2211
Input Voltage: Wide voltage 5 36VDC
Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in
Working Temperature: -45-85
Interface Form: 5.5 x 2.1mm socket and 5.08mm terminal block
Working Current: 200mA
Power Consumption: <700mW
WiFiSAP
Core Resources:
Operating System: For Ecos
FLASH Resources: 4MB
RAM: 8MB
Ethernet Interface Parameters:
Ethernet Interface Form: 1 RJ45
Interface Standard: 10/100 Base-T auto-negotiation
Network Port Protection: Static: 8KV contact discharge, 15KV air discharge
Network Protocols: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP
Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL
Network technical parameters
Working Mode: TCP Server TCP Client UDP unicast UDP multicast
UDP broadcast
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
