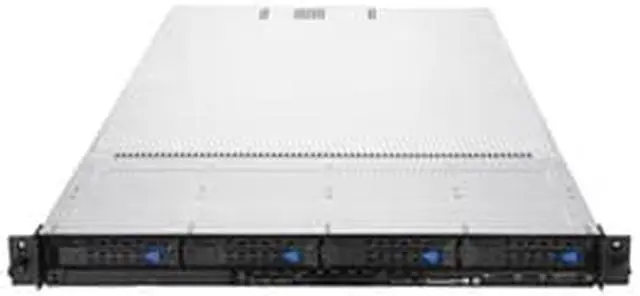

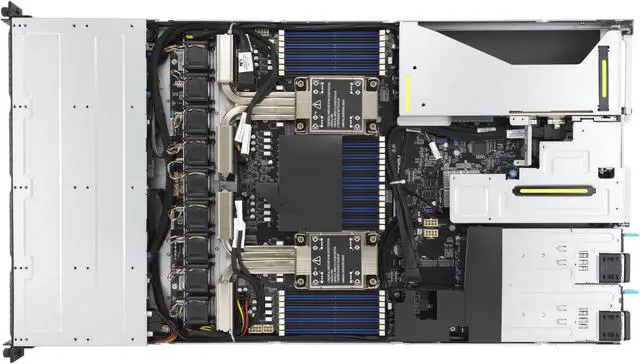

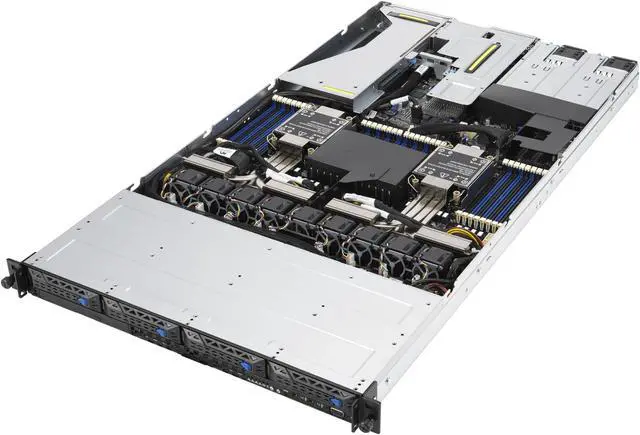

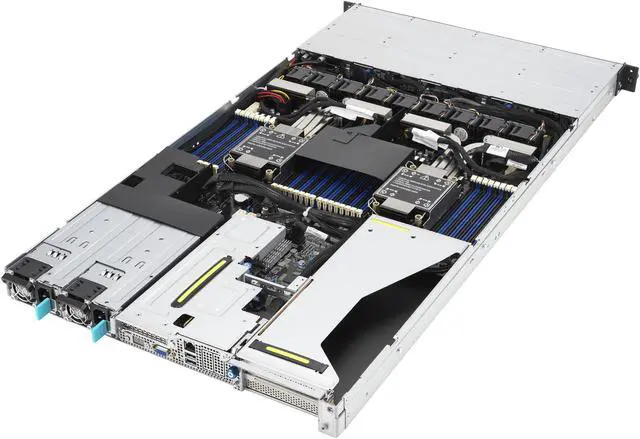

1U dual-socket server powered by 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 4 NVMe, four PCIe slots, one OCP 3.0, dual M.2 and ASUS ASMB10-iKVM.

In stock.
Ships from United States.
Most customers receive within 3-8 days.
  • Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
  • GPU-optimized design allows one dual-slot GPU for AI workloads
  • Up to 4 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
  • Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
  • Flexible air and liquid cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
Overview
Specs
Reviews
Processor / System Bus 2 x Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable Processors Family (270w) *Refer to support page for more information UPI ( 11.2 GT/s) Generation E10 Core Logic Intel® C621A Chipset
MemoryTotalSlots: 32 (8-channel per CPU, 16 DIMM per
CPU)Capacity: Maximum up to 6TB per socket
MemoryType: DDR4 3200/2933 RDIMM DDR4 3200/2933 LRDIMM DDR4 3200/2933 RDIMM 3DS Dual
Channel3200/2933MemorySize: 64GB, 32GB, 16GB, 8GB RDIMM 256GB, 128GB, 64GB RDIMM 3DS 128GB LRDIMM/LR-DIMM 3DS 512GB, 256GB, 128GBIntel® Optane DC persistent memory 200 Series (DCPMM) * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Expansion Slots Up to 3 x Expansion slots + 1 x Internal PIKE slot 1 x PCIe Gen4 x16, FHFL (CPU1) 1 x PCIe Gen4 x16, FHFL or OCP 3.0 (CPU2) 1 x PCIe Gen4 x8 or x16, LP (if PCIe M. 2 in use, it will operate at x8 link) (CPU2) *Installing GPU cards will occupied expansion slots.
StorageStorageController: Intel C621A Intel® Rapid Storage Technology Enterprise (RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 )
SASController: ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (Optional) Broadcom MegaRAID 9560-16i (Optional) Drive Bays 4 x 3.5" hot-swap bays (4 x NVMe/SAS*/SATA) 2 x M. 2 connector (NGFF 2280/2260. PCIe Gen4x4 link) *SAS support only from SAS HBA/RAID card System Fan 9 (if support GPU SKU, it will have external fan) Networking Option 1 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN or Option 2 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN or None x + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM Multi-GPU Support Please find the latest

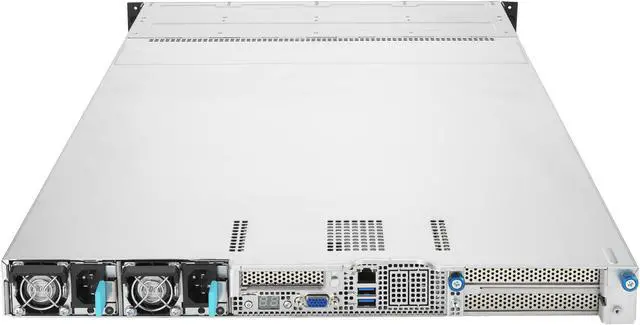

GPUsupportfromhttps: //servers. asus. com/support/gpu Front I/O Ports 2 x USB 3.2 Gen1 ports 1 x VGA port Rear I/O Ports 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 4/2 x NIC ports* * The number of NIC ports available depends on the LAN Controller card installed.
Switch/LEDFrontSwitch/LED: 1 x Power Switch (w/ LED) 1 x Reset Switch 1 x Location Switch (w/ LED) 1 x HDD Access LED* 1 x Message LED LAN 1-4 LED (on NIC module) ** * The HDD Access LED is only functional when an ASUS PIKE II card is installed and connected. ** The number of LAN LEDs available depends on the LAN Controller card installed.
RearSwitch/LED: 1 x Port 80 LED (Q-Code) 1 x Power Switch w/ LED 1 x Location Switch w/ LED OS Support Please find the latest
OSsupportfromhttps: //servers. asus. com/support/os Management Solution ASUS Control Center (Classic) On-Board ASMB10-iKVM for KVM-over-IP Regulatory Compliance BSMI, CE, FCC (Class A) Dimensions 842.5 mm x 449mm x 44mm (1U) 33.17 x 17.68 x 1.73 Form Factor 1U
WeightNetWeight: 13.7KG Power Supply 1+1 Redundant 1600W 80 PLUS Platinum
PowerSupplyRating: 100-127Vac/200-240Vac, 13A/ 9.5A (for each inlet), 50-60Hz, Class I 1+1 Redundant 1200W 80 PLUS Platinum
PowerSupplyRating: 100-127Vac/200-240Vac, 10A/8A (for each inlet), 50/60Hz, Class I 1+1 Redundant 800W 80 PLUS Platinum
PowerSupplyRating: 100-127Vac/200-240Vac, 10A/5A (for each inlet), 50/60Hz, Class I
EnvironmentOperationtemperature: 10 ~ 35
Nonoperationtemperature: -40 ~ 60
Nonoperationhumidity: 20% ~ 90% ( Non condensing) Note If only 1 CPU is installed, some functions might be not available. *SAS support only from SAS HBA/RAID Card CPU Heatsink/ Cooler 2 Fan 1 (For supporting GPU SKU, it will have external fan)
