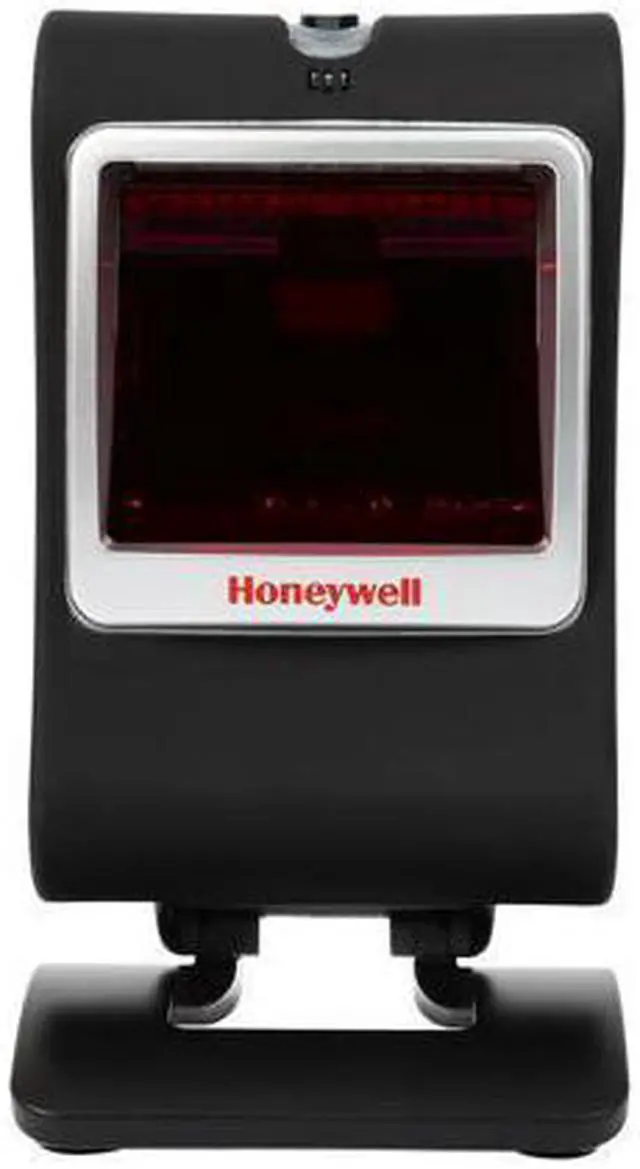

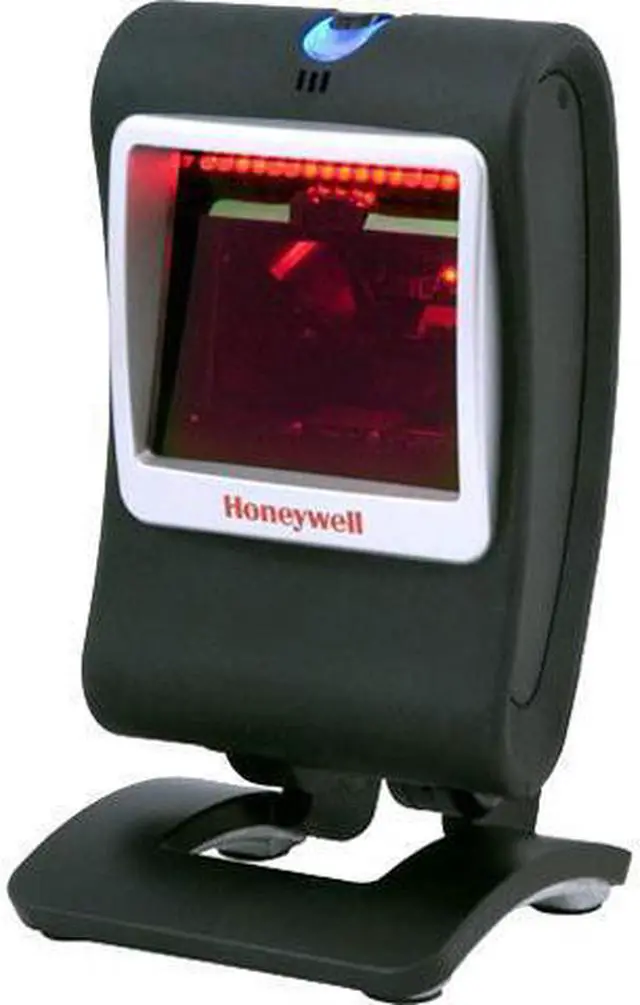

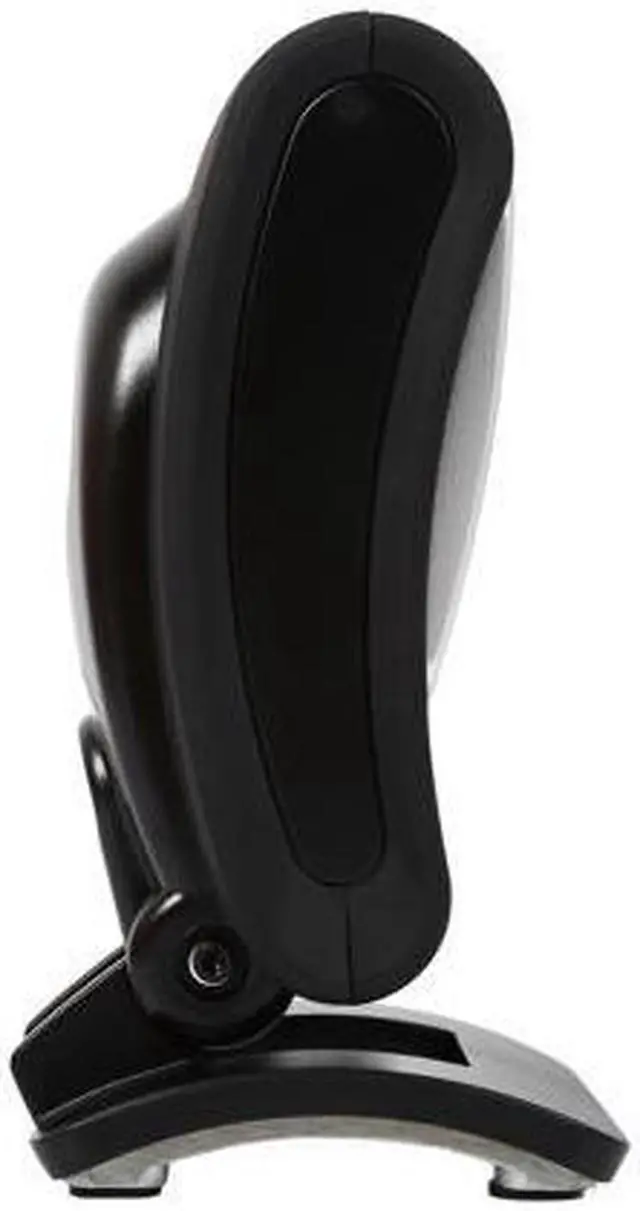

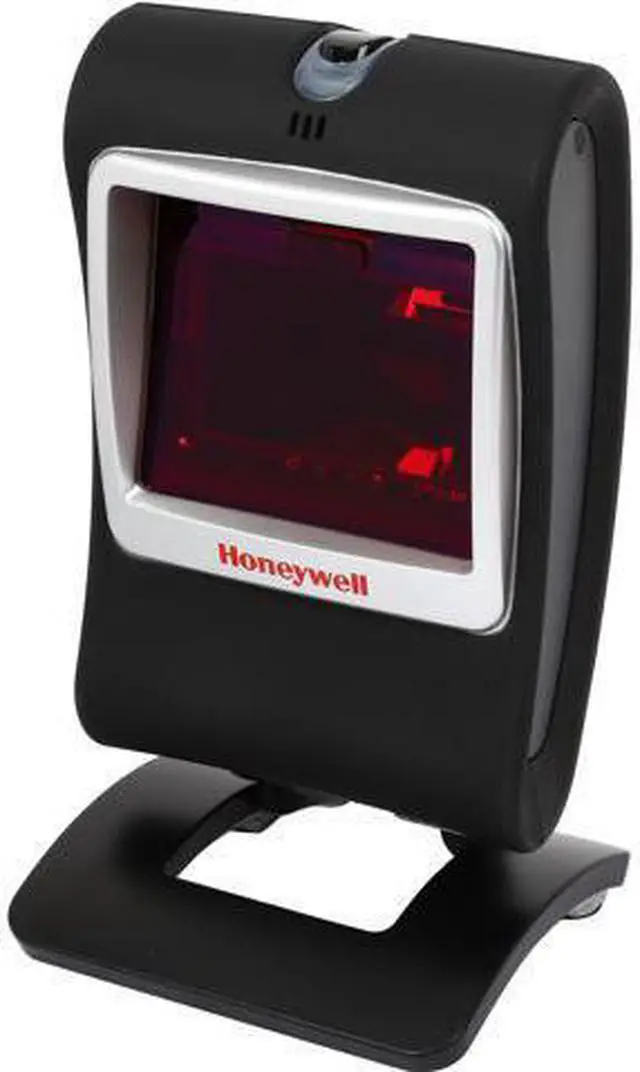

Genesis MS7580 (MK7580-30B38-02-A) Bar Code Reader
- 1D, PDF and 2D
- USB kit with Straight Cable and US Power Supply
- Horizontal: 46 degrees; Vertical: 28 degrees
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
the MS7580
General
Brand:
Series: Genesis
Model: MS7580
Part Number: MK7580-30B38-02-A
Form Factor: Presentation
Connectivity: Corded
Scan Engine: 2D Area Imager
Connectivity
Included Cables: USB Cable Included
Interfaces Supported: USB
Scan Performance
Light Source: Visible Red LED 645 nm +/- 7.5 nm
Imager Field of View: N/A
Depth of Scan Field: 1.50" - 3.20" @ 5 mil - 1D 1.10" - 4.70" @ 7.50 mil - 1D 0.60" - 5.60" @ 10.40 mil - 1D0" - 6.00" @ 13 mil - 1D
Pitch: ±70 degree
Yaw: ±75 degree
Print Contrast Ratio (Minimum): 20% minimum reflectance difference
Decoding Capability: Reads standard 1D, PDF, 2D, Postal and OCR ogies
Electrical
Input Voltage: 12 VDC +/- 0.25V
Power Consumption: Operating
Power: 2.0 W (167 mA @ 12V)Standby
Power: 1.3 W (109 mA @ 12V)
Mechanical
Color: Black
Dimensions: 5.90" x 3.30" x 3.20"
Weight: 0.75 lb.
Features
Features:
Electrical: Auxiliary
Ports: EAS with interlock (EAS model)
Environmental:
Humidity: 0% to 95% relative humidity, non-condensingEnvironmental
Sealing: Sealed to resist airborne particulate contaminantsLight
Levels: 100, 000 Lux
Drop: Designed to withstand 1.50 m ( 5.00 ft. ) drops
Additional Information
: March 03, 2022
General
Brand:
Series: Genesis
Model: MS7580
Part Number: MK7580-30B38-02-A
Form Factor: Presentation
Connectivity: Corded
Scan Engine: 2D Area Imager
Connectivity
Included Cables: USB Cable Included
Interfaces Supported: USB
Scan Performance
Light Source: Visible Red LED 645 nm +/- 7.5 nm
Imager Field of View: N/A
Depth of Scan Field: 1.50" - 3.20" @ 5 mil - 1D 1.10" - 4.70" @ 7.50 mil - 1D 0.60" - 5.60" @ 10.40 mil - 1D0" - 6.00" @ 13 mil - 1D
Pitch: ±70 degree
Yaw: ±75 degree
Print Contrast Ratio (Minimum): 20% minimum reflectance difference
Decoding Capability: Reads standard 1D, PDF, 2D, Postal and OCR ogies
Electrical
Input Voltage: 12 VDC +/- 0.25V
Power Consumption: Operating
Power: 2.0 W (167 mA @ 12V)Standby
Power: 1.3 W (109 mA @ 12V)
Mechanical
Color: Black
Dimensions: 5.90" x 3.30" x 3.20"
Weight: 0.75 lb.
Features
Features:
Electrical: Auxiliary
Ports: EAS with interlock (EAS model)
Environmental:
Humidity: 0% to 95% relative humidity, non-condensingEnvironmental
Sealing: Sealed to resist airborne particulate contaminantsLight
Levels: 100, 000 Lux
Drop: Designed to withstand 1.50 m ( 5.00 ft. ) drops
Additional Information
: March 03, 2022
