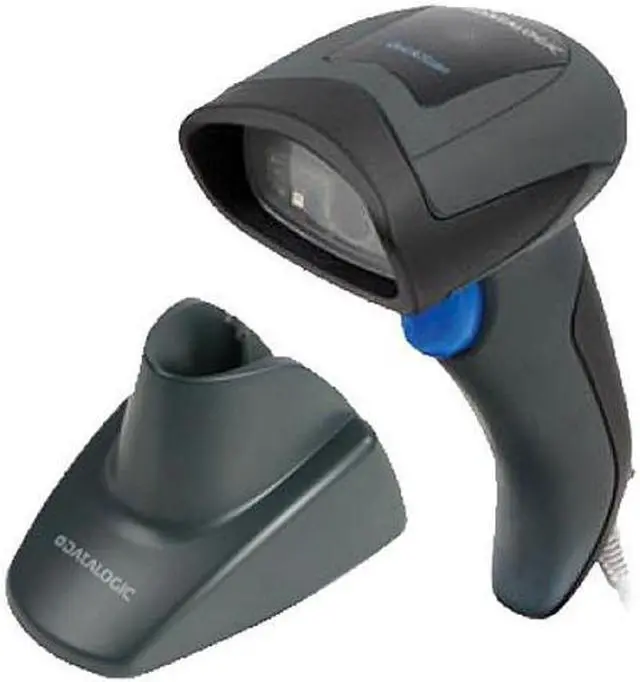

Main image of QuickScan QD2430 General Purpose Corded Handheld 2D Area Imager Bar Code Reader, USB Kit, Black - QD2430-BKK1B

Shop All Earthbath Products | Visit USASHOP Store

QuickScan QD2430 General Purpose Corded Handheld 2D Area Imager Bar Code Reader, USB Kit, Black - QD2430-BKK1B

The QuickScan QD2400 2D imager was specifically created to address the needs of retailers & meet the market demand w/ outstanding omnidirectional reading performance on virtually all codes at an affordable price
Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination & aiming system developed w/ the unique intent to reduce visual stress of the operator during the daily scanning activities
It consists of a soft, dark red illumination combined w/ two blue LED triangles pointing at the targeted bar code resulting in a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency
Reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards
Provides a fast, reliable scan from an elegant and robust 2D imager
Includes 90A052065 Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified) Cable & Auto-Stand

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

the QD2400
General
Brand:
Model: QD2400
Part Number: QD2430-BKK1B
Form Factor: Handheld
Connectivity: Corded
Scan Engine: 2D Area Imager
Connectivity
Included Cables: USB Cable and Auto-Stand Included
Interfaces Supported: Keyboard Wedge / OEM (IBM) USB / RS-232 / USB
Scan Performance
Light Source:
Aiming: 2 Blue LEDs;
Illumination: Red LED 610 - 650 nm
Resolution: 0.102 mm / 4 mils (Linear Codes)
Pitch: ±65 degree
Roll: ±360 degree
Yaw: ±60 degree
Print Contrast Ratio (Minimum): 25%
Electrical
Input Voltage: 4.5 -14V
Current: Operating (Typical): 140 mA @ 5 VDC
Standby/Idle (Typical): 50 mA @ 5 VDC
Mechanical
Color: Black
Dimensions: 6.40" x 3.60" x 1.60"
Weight: 0.32 lbs.
Features
Drop: 5 feet
Additional Information
: July 01, 2022
