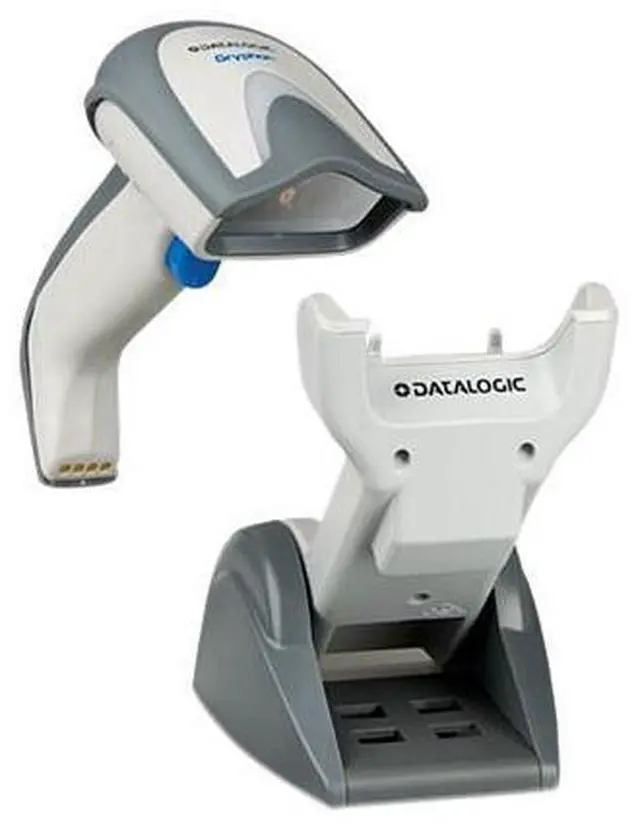

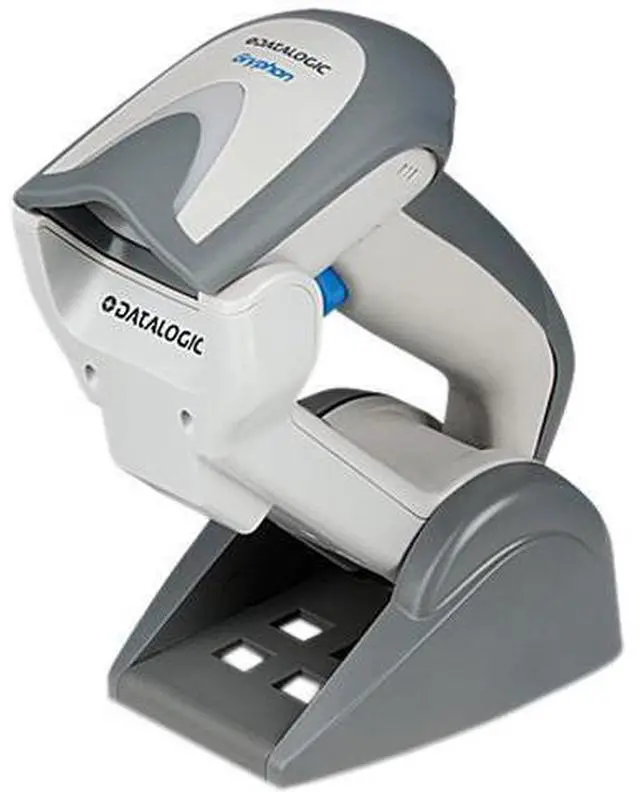

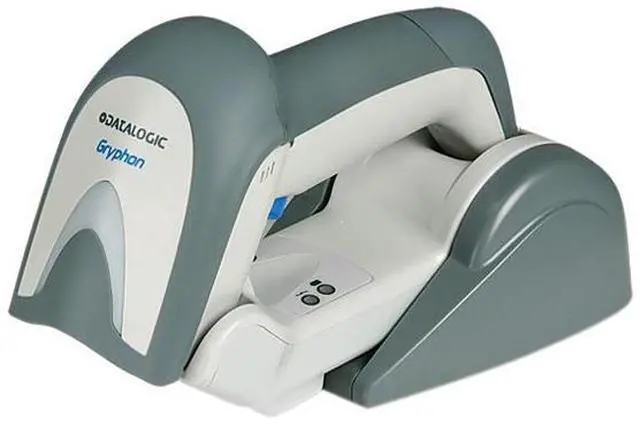

Gryphon GM4132 General Duty Handheld Cordless Linear Imager w 's STAR Cordless System, 910MHz, USB, RS-232, KBW, Wand Emulation, White, USB Kit - GM4132-WH-910K1
- Fastest speed-to-read: 325 reads/second
- Radio frequency: 910 MHz
- Radio Range (open air) up to 15.0 m / 49.2 ft for 910 MHz
- Point-to-point and multi-point transmission
- s patented 2-position cradle with Scan-While-Charging capability
- Batch Mode capability (>1200 codes stored in memory)
- Drop resistance to 1.8 m / 5.9 ft
- s patented Green Spot technology for good-read feedback
- Long lasting user-replaceable Lithium-Ion battery
- Includes base station BC4032-WH-910 (910 Mhz, BC4032, Multi-Interface, White) and USB Cable 90A051945
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
the GM4132
General
Brand:
Series: GRYPHON I GM4100
Model: GM4132
Part Number: GM4132-WH-910K1
Form Factor: Handheld
Connectivity: Cordless
Scan Engine: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
Connectivity
Included Cables: USB Cable Included
Interfaces Supported: USB, RS-232, Keyboard Wedge
Cordless Type: Radio / STAR Cordless System
Scan Performance
Light Source: Illumination: LED Array 630 - 670 nm
Resolution: 0.076 mm / 3 mils
Depth of Scan Field: Minimum distance determined by length and scan angle. Printing resolution, contrast, and ambient light dependent. 5 mils: 6.00 to 18.00 cm / 2.30" to 7.00" 7.5 mils: 3.50 to 30.00 cm / 1.40" to 11.70" 10 mils: 2.00 to 45.00 cm / 0.80" to 17.70" 13 mils: 3.00 to 60.00 cm / 1.20 to 23.40" 20 mils: 3.00 to 80.00 cm / 1.20" to 31.20"
Pitch: ±65 degree
Roll: ±35 degree
Yaw: ±65 degree
Print Contrast Ratio (Minimum): 15%
Electrical
Battery: Battery
Type: Lithium-Ion, 2100 mAhCharge
Time: External Power: 4 Hours @ 12 VDC
Input Voltage: 4.75 - 14 VDC +/- 5%
Current: Charging
(Typical): < 8 WattsOperating (Typical): < 2.5 Watts @ 5 VDC
Standby / Idle (Typical): < 2.5 mA @ 5 VDC
Mechanical
Color: White
Dimensions:
Cradle: 7.30" x 3.90" x 2.20"
Reader: 7.10" x 2.80" x 3.90"
Weight:
Cradle: 246.00 g / 8.70 oz. / 0.54 lb. Reader (with
Display): 246.00 g / 8.70 oz. / 0.54 lb.
Features
Features:
Cradle Indicator LEDs: Battery Charging (Red); Charge Completed (Green); Power / Data (Yellow) Read Rate (Max. ): 325 reads/sec
Star Cordless SystemEffective Radiated Power: 433.92
MHz: <10 mW; 910 MHz: <1 mWMulti-Point Configuration: Max. Readers per Radio Receiver: 16; Point-to-Point ConfigurationRadio Frequency: 910 MHzRadio Range (Open Air): 910 MHz: 15.00 m / 49.20 ft.
Drop: Withstands repeated drops from 1.80 m / 5.90 ft. onto a concrete surface
Packaging
Package Contents: Gryphon GM4132, 910 Mhz, Kit, USB, BlackBase / Charger, 910 Mhz, BC4032, Multi-Interface, BlackCable (90A051945)
Additional Information
: April 08, 2022
General
Brand:
Series: GRYPHON I GM4100
Model: GM4132
Part Number: GM4132-WH-910K1
Form Factor: Handheld
Connectivity: Cordless
Scan Engine: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
Connectivity
Included Cables: USB Cable Included
Interfaces Supported: USB, RS-232, Keyboard Wedge
Cordless Type: Radio / STAR Cordless System
Scan Performance
Light Source: Illumination: LED Array 630 - 670 nm
Resolution: 0.076 mm / 3 mils
Depth of Scan Field: Minimum distance determined by length and scan angle. Printing resolution, contrast, and ambient light dependent. 5 mils: 6.00 to 18.00 cm / 2.30" to 7.00" 7.5 mils: 3.50 to 30.00 cm / 1.40" to 11.70" 10 mils: 2.00 to 45.00 cm / 0.80" to 17.70" 13 mils: 3.00 to 60.00 cm / 1.20 to 23.40" 20 mils: 3.00 to 80.00 cm / 1.20" to 31.20"
Pitch: ±65 degree
Roll: ±35 degree
Yaw: ±65 degree
Print Contrast Ratio (Minimum): 15%
Electrical
Battery: Battery
Type: Lithium-Ion, 2100 mAhCharge
Time: External Power: 4 Hours @ 12 VDC
Input Voltage: 4.75 - 14 VDC +/- 5%
Current: Charging
(Typical): < 8 WattsOperating (Typical): < 2.5 Watts @ 5 VDC
Standby / Idle (Typical): < 2.5 mA @ 5 VDC
Mechanical
Color: White
Dimensions:
Cradle: 7.30" x 3.90" x 2.20"
Reader: 7.10" x 2.80" x 3.90"
Weight:
Cradle: 246.00 g / 8.70 oz. / 0.54 lb. Reader (with
Display): 246.00 g / 8.70 oz. / 0.54 lb.
Features
Features:
Cradle Indicator LEDs: Battery Charging (Red); Charge Completed (Green); Power / Data (Yellow) Read Rate (Max. ): 325 reads/sec
Star Cordless SystemEffective Radiated Power: 433.92
MHz: <10 mW; 910 MHz: <1 mWMulti-Point Configuration: Max. Readers per Radio Receiver: 16; Point-to-Point ConfigurationRadio Frequency: 910 MHzRadio Range (Open Air): 910 MHz: 15.00 m / 49.20 ft.
Drop: Withstands repeated drops from 1.80 m / 5.90 ft. onto a concrete surface
Packaging
Package Contents: Gryphon GM4132, 910 Mhz, Kit, USB, BlackBase / Charger, 910 Mhz, BC4032, Multi-Interface, BlackCable (90A051945)
Additional Information
: April 08, 2022
