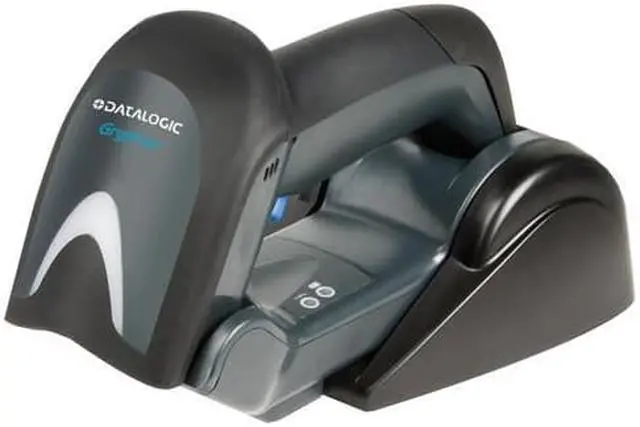

Gryphon 4130 Handheld Bar Code Reader

Bluetooth Wireless Technology eliminates the need for cables that limit operator movement & create safety concerns in the workplace; w/ up to 30 m / 98 ft range
Fastest speed-to-read: 325 scans/second
Can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device
s unique 2-position cradle provides multiple features for the user; when in the up position, this imager can be used as a hands-free or presentation style reader; w/ the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity
The Gryphon GBT4100 readers batch mode capability allows more than 1200 bar codes to be stored in the memory
Combined w/ a 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility & reliable data collection when out-of-range
Includes Base/Charger BC4030-BK-BT & Cable 90A052065

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

the GBT4100
General
Brand:
Model: GBT4100
Part Number: GBT4130-BK-BTK1
Form Factor: Handheld
Connectivity: Cordless
Scan Engine: 1D Linear Imager
Connectivity
Included Cables: USB Cable Included
Interfaces Supported: Multi-Interface
Cordless Type: Bluetooth
Scan Performance
Light Source: LED Array 630 - 670 nm
Resolution: 0.076 mm / 3 mils
Pitch: ±65 degree
Roll: ±35 degree
Yaw: ±65 degree
Scan Speed: 325 reads/sec
Print Contrast Ratio (Minimum): 15%
Decoding Capability: 1D /
Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
Postal Codes: China
PostStacked Codes: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Electrical
Battery: Battery
Type: Lithium-Ion, 2100 mAhCharge
Time: External Power (12
VDC): 4 HoursReads per
Charge: 33, 000Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Input Voltage: 4.5 - 14.0 VDC
Current: Charging
(Typical): < 8 WOperating (Typical): < 2.5 W @ 5 VDC
Standby/Idle (Typical): < 2.5 mA @ 5 VDC
Mechanical
Color: Black
Dimensions:
Cradle: 7.25" x 3.90" x 2.20"R eader: 7.10" x 2.80" x 3.90"
Weight:
Cradle: 0.54 lb.
Reader: 0.50 lb.
Features
Features:
Ambient Liight: 0 - 100, 000 luxESD Protection (Air
Discharge): 16 kVParticulate and
Water Sealing: IP52Humidity
(Non-Condensing): 0
- 90%Temperature:
Operating: 0 to 55 °C / 32 to 131 °FStorage/Transport: -20 to 70 °C / -4 to 158 °FEnclosure: Disinfectant-Ready Enclosure Treated with
AntiMicrobial AdditivesImager Sensor: CCD
Solid-StateReading Indicators: Beeper (Adjustable Tone and Volume); 'Green Spot' Good Read Feedback; Good Read LED
Drop: Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
