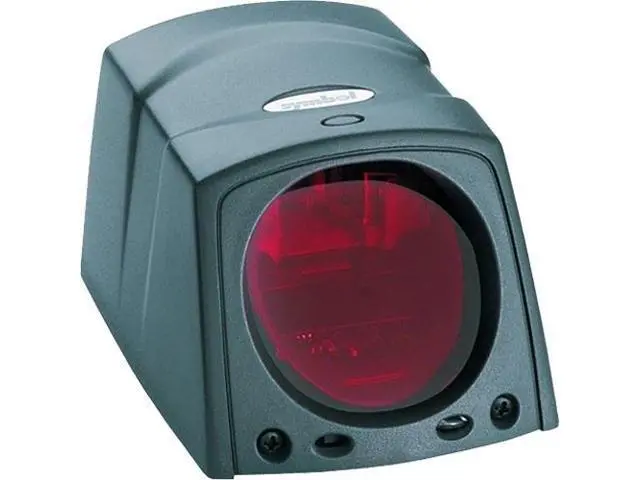

MiniScan MS1207 Bar Code Reader
- Fixed-position
- TTL, RS 232, USB, Synapse
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
the MS1207
General
Brand:
Series: MiniScan
Model: MS1207
Part Number: MS-1207FZY-I000R
Form Factor: Fixed-position
Connectivity: Corded
Scan Engine: 1D
Connectivity
Interfaces Supported: TTL, RS 232, USB, Synapse
Scan Performance
Light Source: 650 nm visible laser diode
Resolution: 5 mils
Depth of Scan Field: 3.25" - 7" at 5 mil3" - 12.50" at 7.50 mil 2.20" - 25.75" at 13 mil - 100% UPC1" - 34" at 20 mil - 80% MRD1" - 27.25" at 20 mil - 25% MRD 2.20" - 66.75" at 40 mil4" - 75" at 55 mil
Pitch: ±65 degree
Roll: ±20 degree
Yaw: ±50 degree
Scan Speed: 36 sps
Print Contrast Ratio (Minimum): 25%
Electrical
Current: 160 mA (scanning), 20 mA (standby)
Regulatory: Laser
Classification: CDRH Class II, IEC Class 2Electrical
Safety: Certified to UL1950, CA
C22-2 NO950 ENG60950/IEC950EMI/RFI: FCC Part 15 Class B, ICES-003 Class B EuropeanUnion EMC Directive, Australian SMA
Environmental: RoHS-compliant
Mechanical
Dimensions: 1.60" x 2.28" x 2.94"
Weight: 0.28 lb.
Features
Drop: 2.49 ft.
Additional Information
: April 08, 2022
General
Brand:
Series: MiniScan
Model: MS1207
Part Number: MS-1207FZY-I000R
Form Factor: Fixed-position
Connectivity: Corded
Scan Engine: 1D
Connectivity
Interfaces Supported: TTL, RS 232, USB, Synapse
Scan Performance
Light Source: 650 nm visible laser diode
Resolution: 5 mils
Depth of Scan Field: 3.25" - 7" at 5 mil3" - 12.50" at 7.50 mil 2.20" - 25.75" at 13 mil - 100% UPC1" - 34" at 20 mil - 80% MRD1" - 27.25" at 20 mil - 25% MRD 2.20" - 66.75" at 40 mil4" - 75" at 55 mil
Pitch: ±65 degree
Roll: ±20 degree
Yaw: ±50 degree
Scan Speed: 36 sps
Print Contrast Ratio (Minimum): 25%
Electrical
Current: 160 mA (scanning), 20 mA (standby)
Regulatory: Laser
Classification: CDRH Class II, IEC Class 2Electrical
Safety: Certified to UL1950, CA
C22-2 NO950 ENG60950/IEC950EMI/RFI: FCC Part 15 Class B, ICES-003 Class B EuropeanUnion EMC Directive, Australian SMA
Environmental: RoHS-compliant
Mechanical
Dimensions: 1.60" x 2.28" x 2.94"
Weight: 0.28 lb.
Features
Drop: 2.49 ft.
Additional Information
: April 08, 2022
