KIT:DS9208-SR IBM KIT - M01

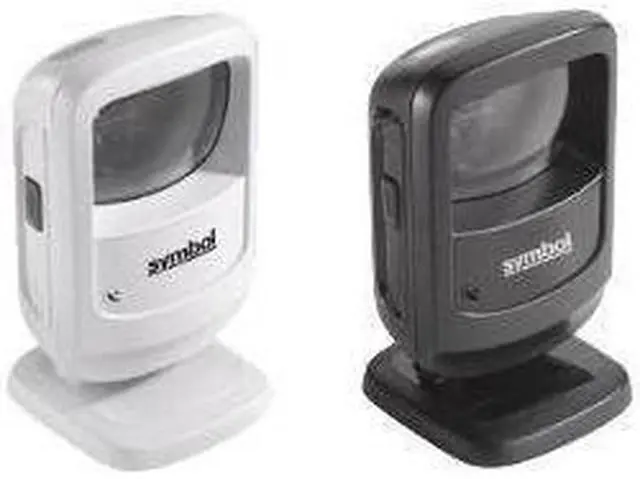

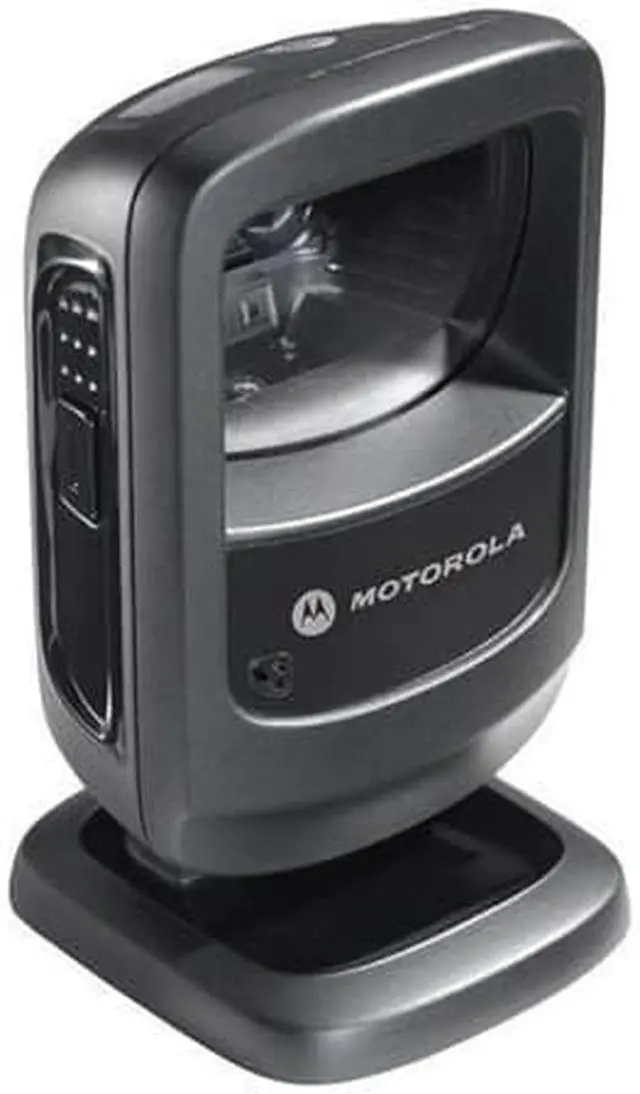

the DS9208
General
Brand:
Model: DS9208
Part Number: DS9208-SR4NNM01Z
Form Factor: Presentation
Connectivity: Corded
Scan Engine: 2D
Connectivity
Included Cables: IBM 468x/9x Port 9B Cable Included
Interfaces Supported: USB, RS-232, Keyboard Wedge, IBM
Scan Performance
Light Source: Aiming pattern: single dot, 625nm LED
Illumination: 630nm LEDs
Imager Field of View: 46° Horizontal x 29.5 ° Vertical
Resolution: 5 mils
Depth of Scan Field: 0 mil - 4.50" at 5 mil - Code 390 mil - 8.50" at 10 mil - UPC/EAN0 mil - 10.50" at 13 mil - UPC/EAN0 mil - 3.80" at 6.60 mil - PDF4170 mil - 4.70" at 10 mil - Datamatrix
Pitch: ±65 degree
Roll: ±360 degree
Yaw: ±60 degree
Scan Speed: Up to 90 in. / 2.3 m per second
Print Contrast Ratio (Minimum): 25%
Electrical
Regulatory: Electrical Safety UL6950-1, CSA C 22.2 No. 60950- 1:2 nd ed., EN60950- 1: 2 nd ed. + A 11: 2009 IEC60950- 1: 2 nd ed.
LED Safety: IEC / EN 60825- 1: 2001 Class 1M LED, EN 62471: 2008 IEC 62471: 2006
EMI/RFI: FCC CFR47 Part 15
Class B: 2007, ICES-003
Issue 4: 2004 Class B, EN 55022: 2006 + A 1: 2007, EN 55024: 1998 +A 1: 2001 + A 2: 2003 AS/NZS CISPR 22:2006, VCCI: 2007Environmental: Compliant with RoHS Directive 2002/95/EC
Mechanical
Color: Midnight Black
Dimensions: 5.51" x 3.23" x 3.15"
Weight: 0.59 lb.
Features
Drop: 5 feet
