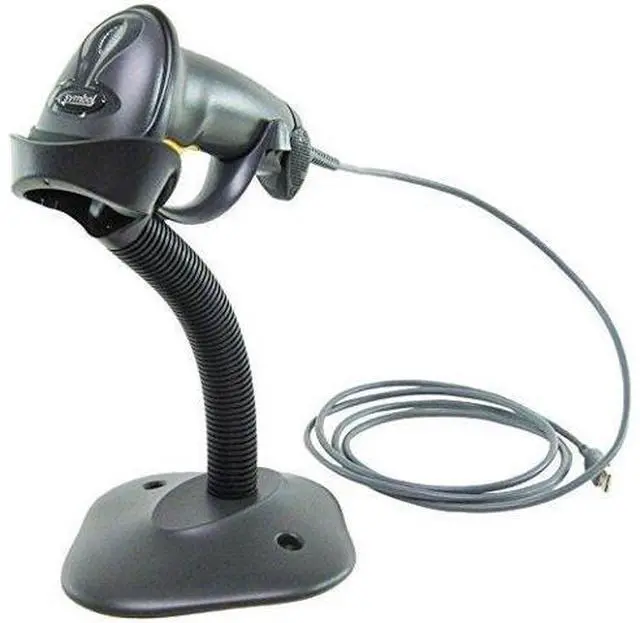

LS2208 SCNR KITTWBUSBSTAND
- Handheld
- USB, RS-232, Keyboard Wedge, IBM
- USB Cable w/ Stand
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
the LS2208
General
Brand:
Model: LS2208
Part Number: LS2208-SR20007R-NA
Form Factor: Handheld
Connectivity: Corded
Scan Engine: 1D Laser
Connectivity
Included Cables: USB Cable w/ Stand
Interfaces Supported: USB, RS-232, Keyboard Wedge, IBM
Scan Performance
Light Source: 650 nm visible laser diode
Resolution: 5 mils
Depth of Scan Field: Code 39 - 5 mil 2.50" - 6.00"C ode 39 - 7.5 mil 1.50" - 10.00"C ode 39 - 10 mil 1.00" - 14.25" 100% UPC - 13 mil 0 - 17.00"C ode 39 - 20 mil 0 - 23.00"C ode 39 - 40 mil 0 - 30.00"
Pitch: ±65 degree
Roll: ±30 degree
Yaw: ±60 degree
Scan Speed: 100 sps
Print Contrast Ratio (Minimum): 20%
Decoding Capability: UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5
Electrical
Input Voltage: 5 volts +/- 10% at 130 mA
Regulatory: Electrical
Safety: Certified to UL1950, CSA C 22.2 No. 950, EN60950/IEC950EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, TaiwanEMC, Japan VCCI/MITI/Dentori.
Laser Safety: CDRH Class II, IEC
Class 2Environmental: Compliant with RoHS directive 2002/95/EEC
Mechanical
Color: Twilight Black
Dimensions: 6.00" x 2.50" x 3.34"
Weight: 0.33 lb.
Features
Drop: 5 feet
Additional Information
: April 02, 2022
General
Brand:
Model: LS2208
Part Number: LS2208-SR20007R-NA
Form Factor: Handheld
Connectivity: Corded
Scan Engine: 1D Laser
Connectivity
Included Cables: USB Cable w/ Stand
Interfaces Supported: USB, RS-232, Keyboard Wedge, IBM
Scan Performance
Light Source: 650 nm visible laser diode
Resolution: 5 mils
Depth of Scan Field: Code 39 - 5 mil 2.50" - 6.00"C ode 39 - 7.5 mil 1.50" - 10.00"C ode 39 - 10 mil 1.00" - 14.25" 100% UPC - 13 mil 0 - 17.00"C ode 39 - 20 mil 0 - 23.00"C ode 39 - 40 mil 0 - 30.00"
Pitch: ±65 degree
Roll: ±30 degree
Yaw: ±60 degree
Scan Speed: 100 sps
Print Contrast Ratio (Minimum): 20%
Decoding Capability: UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5
Electrical
Input Voltage: 5 volts +/- 10% at 130 mA
Regulatory: Electrical
Safety: Certified to UL1950, CSA C 22.2 No. 950, EN60950/IEC950EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, TaiwanEMC, Japan VCCI/MITI/Dentori.
Laser Safety: CDRH Class II, IEC
Class 2Environmental: Compliant with RoHS directive 2002/95/EEC
Mechanical
Color: Twilight Black
Dimensions: 6.00" x 2.50" x 3.34"
Weight: 0.33 lb.
Features
Drop: 5 feet
Additional Information
: April 02, 2022
