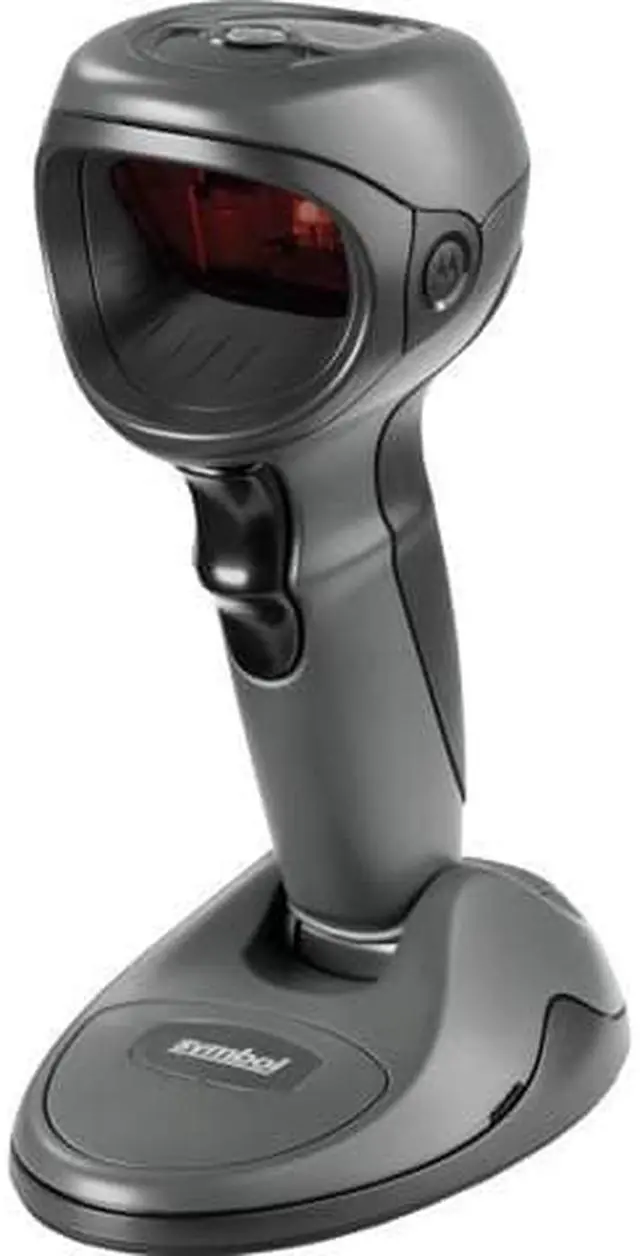

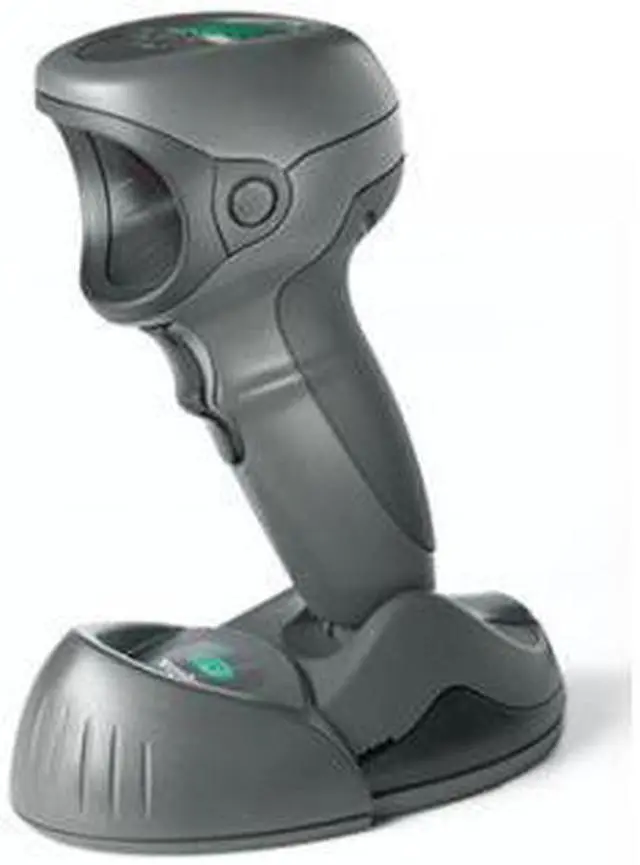

DS9808 Hybrid Presentation Imager Kit (DS9808SR RS232 Kit) - Color: Twilight Black

the Detailed

Specifications

General
Brand:
Series:
Part Number: DS9808-SR7NNR01AR
Form Factor: Presentation
Connectivity: Corded
Scan Engine: 2D
Connectivity
Included Cables: RS-232 Series Cable Included
Interfaces Supported: USB, RS-232, Keyboard Wedge, IBM
Scan Performance
Light Source: Aiming Pattern: 650nm laser diodeIllumination: 630nm LED
Imager Field of View: 39° H x 25° V
Resolution: 5 mils
Depth of Scan Field: 0 mil - 4.50" at 5 mil - Code 390 mil - 8.50" at 10 mil - UPC/EAN0 mil - 10.50" at 13 mil - UPC/EAN0 mil - 5" at 6.60 mil - PDF4170 mil - 6" at 10 mil - Data Matrix
Pitch: ±65 degree
Roll: ±360 degree
Yaw: ±60 degree
Scan Speed: Programmable up to 100 in. /254 cm per second (Horizontal Read Rate)
Electrical
Regulatory: Electrical
Safety: UL6950-1, CSA C 22.2 No. 60950-1, EN60950-1 /
IEC60950-1Laser Safety: EN 60825-1, IEC 60825-1, 21CFR 1040.10, CDRH Class II, IEC
Class 2EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024 AS/NZS 4268:2008, Japan VCCI
Environmental: Compliant with RoHS directive 2002/95/EEC
Mechanical
Color: Twilight Black
Dimensions: 8.00" x 3.40" x 5.40"
Weight: 0.75 lb.
Features
Drop: 5 feet
Additional Information
: January 09, 2022
