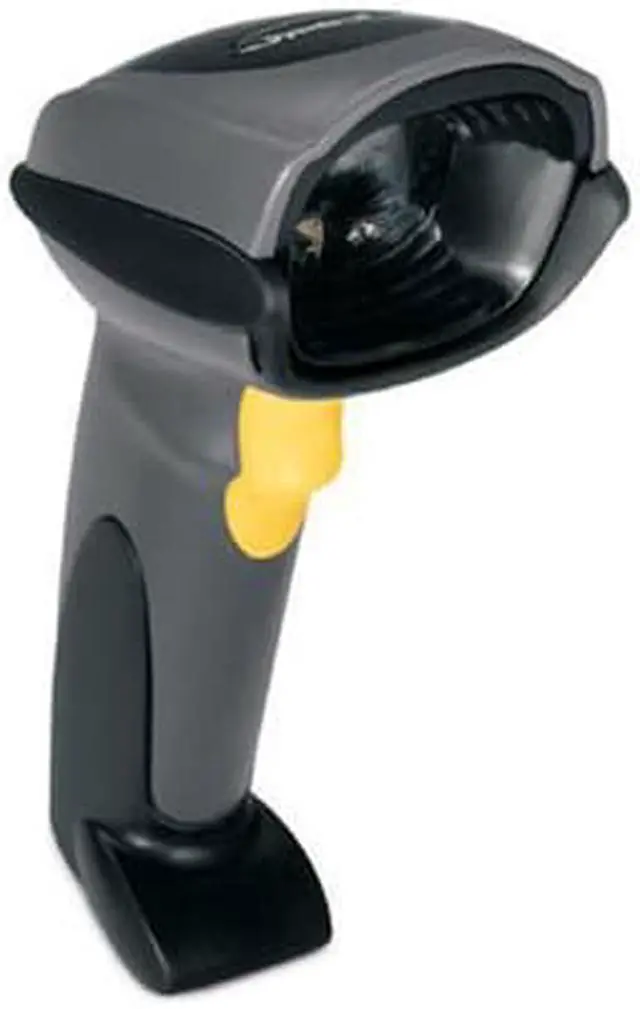

DS6707 DC Bar Code Reader

the DS6707
General
Brand:
Series:
Model: DS6707
Part Number: DS6707-DC20007ZZR
Form Factor: Handheld
Connectivity: Corded
Scan Engine: 2D
Connectivity
Included Cables: Scanner Only - No Cable
Interfaces Supported: USB, RS-232
Scan Performance
Light Source:
Aiming: 650 nm laser diodeIllumination: 630 nm LED
Imager Field of View: SR -
Standard range: 34° V x 43° HDC -
Document capture: 35° V x 44° H
Resolution: 5 mils
Depth of Scan Field: 2.50" - 10" at 5 mil - Code 390.80" - 16.80" at 13 mil - 100% UPC/EAN 0.70" - 28.30" at 20 mil - Code 391.90" - 11.80" at 10 mil - PDF 4172.60" - 12.20" at 10 mil - Data Matrix
Pitch: ±65 degree
Roll: ±360 degree
Yaw: ±60 degree
Print Contrast Ratio (Minimum): 25%
Electrical
Regulatory: Electrical
Safety: UL6950-1, CSA C 22.2 No. 60950-1, EN60950-1 /
IEC60950-1Laser Safety: EN60825- 1:1994 +A 1: 2002 +A2: 2001, IEC60825-1, 21CFR 1040.10 and 21CFR 1040.11, CDRH Class II, IEC
Class 2EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24;
Medical electrical equipment: EN60601-1- 2: 2002
Environmental: Compliant with RoHS directive 2002/95/EEC

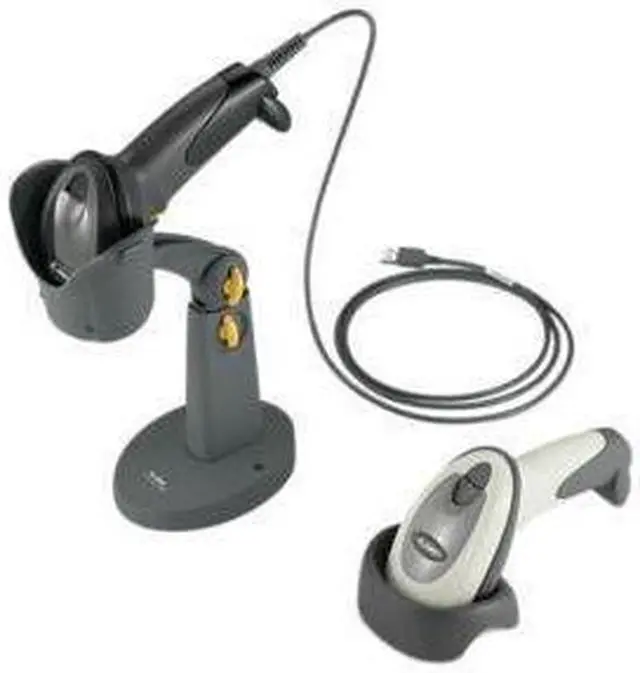

Mounting Options (Accessories): Intellistand
with adjustable height: 5'10 in. ( 12.7 ' 25.4 cm) and adjustable angle: 0°'90° Desktop and wall-mount holders are also available.
Power Supplies: Power supplies are available for applications that don't supply power over the host cable.
Mechanical
Color: Twilight Black
Dimensions: 6.55" x 2.82" x 4.72"
Weight: 0.40 lb.
Features
Drop: 6 feet
Additional Information
: February 26, 2022
