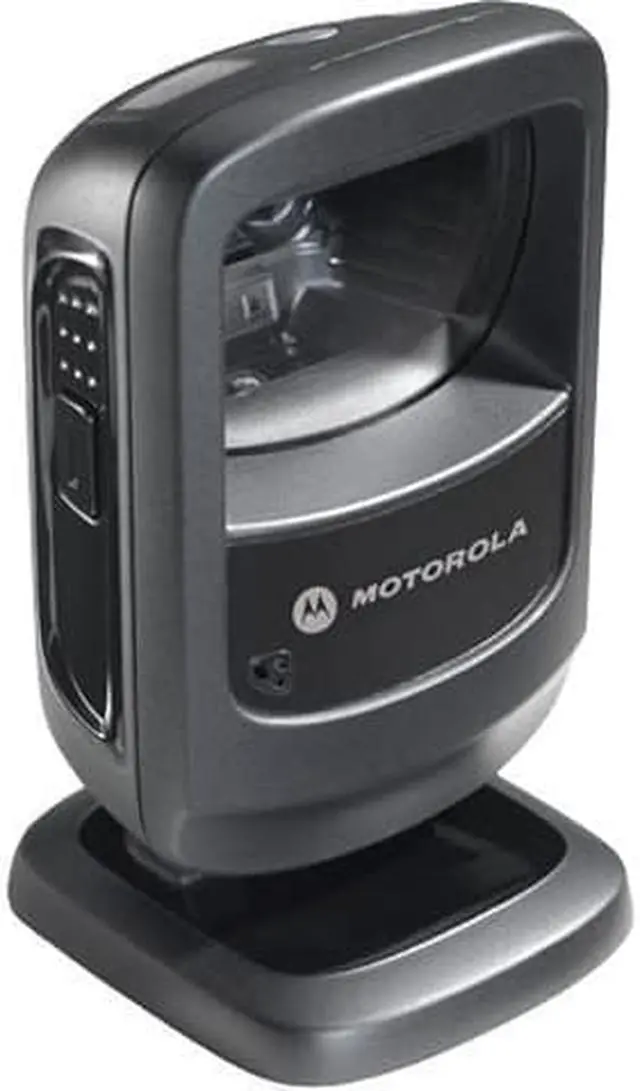

Ds9208 Desktop Bar Code Reader - Cable Connectivity1d, 2d - Led - Imager - Omni-directional -

the DS9208
General
Brand:
Model: DS9208
Part Number: DS9208-DL00004NNWW
Form Factor: Presentation
Connectivity: Corded
Scan Engine: 2D
Connectivity
Included Cables: Scanner Only - No Cable
Interfaces Supported: USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge
Scan Performance
Light Source: Aiming pattern: single dot, 625nm LED
Illumination: 630nm LEDs
Imager Field of View: 46° Horizontal x 29.5 ° Vertical
Pitch: ±65 degree
Roll: ±360 degree
Yaw: ±60 degree
Print Contrast Ratio (Minimum): 25%
Electrical
Input Voltage:
Idle: 5 +/- 10% V DC at 150ma average
Scanning: 5 +/- 10% V DC at 230ma average
Regulatory: Electrical
Safety: UL6950-1, CSA C 22.2 No. 60950- 1:2 nd ed., EN60950- 1: 2 nd ed. + A 11: 2009, IEC60950- 1: 2 nd ed.
LED Safety: IEC / EN 60825- 1: 2001 Class 1M LED, EN 62471: 2008, IEC 62471: 2006
EMI/RFI: FCC CFR47 Part 15
Class B: 2007, ICES-003
Issue 4: 2004 Class B, EN 55022: 2006 + A 1: 2007, EN 55024: 1998 +A 1: 2001 + A 2: 2003, AS/NZS CISPR 22:2006, VCCI: 2007Environmental: Compliant with RoHS Directive 2002/95/EC
Mechanical
Color: Midnight Black
Dimensions: 5.51" x 3.23" x 3.15"
Weight: 0.59 lb.
Features
Drop: 5 feet
