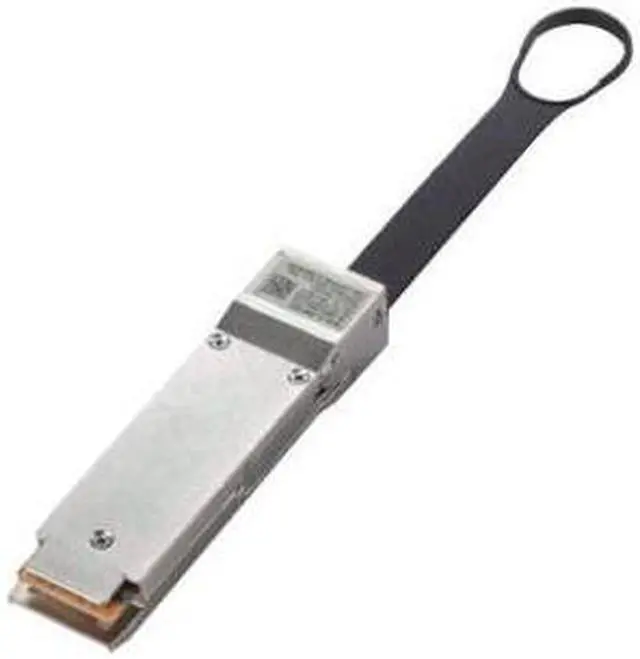

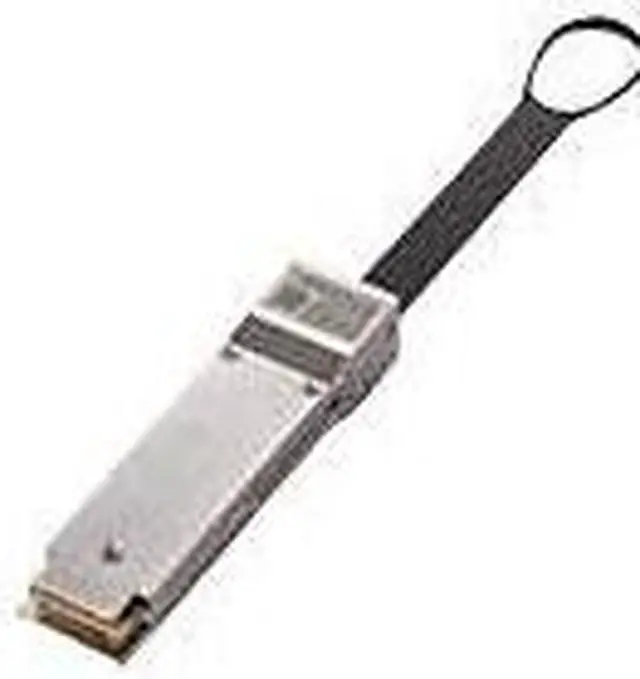

MELLANOX TECHNOLOGIES MMA1B00-C100D TRANSCEIVER 100GBE QSFP28 MPO

Mellanox MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant. The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd. The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds: -Temperature with warning/alarm -Supply voltage with warning/alarm -Laser bias current -Transmitted optical power with warning/alarm -Received optical power with warning/alarm Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
