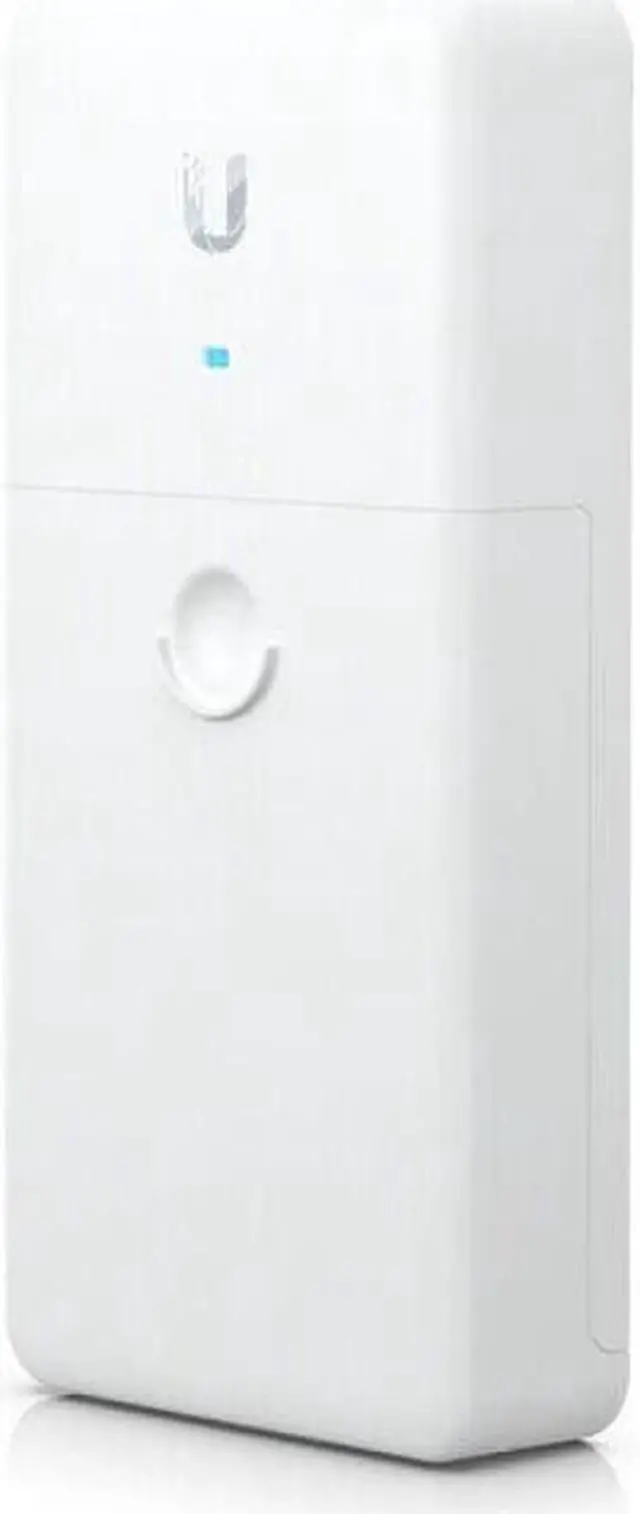

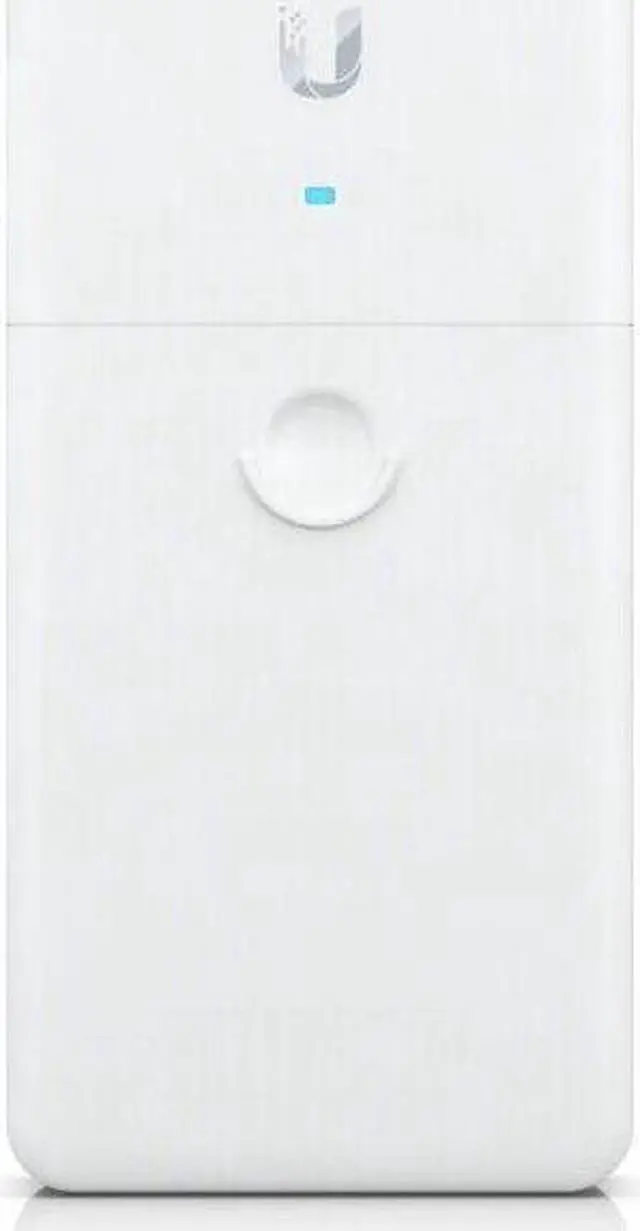

Ubiquiti UACC-LRE Long-Range Ethernet Repeater PoE/PoE+ / (2) GbE RJ45 ports
- The Long-Range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage. Supports up to 1 km link distances (Deployment tested: (9) daisy-chained UACC LRE units connected to an endpoint device (e.g., camera, AP) using (10) 100 m UISP Cable Pros, all powered a by UniFi PoE+ switch).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Establishes long-range connections between PoE switches and devices
Chains with other UACC LRE units
(1) GbE RJ45 port for PoE/PoE+ input
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
Specification:
Mechanical
Dimensions 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5" )
Weight 350 g ( 12.3 oz)
Enclosure material UV stabilized polycarbonate

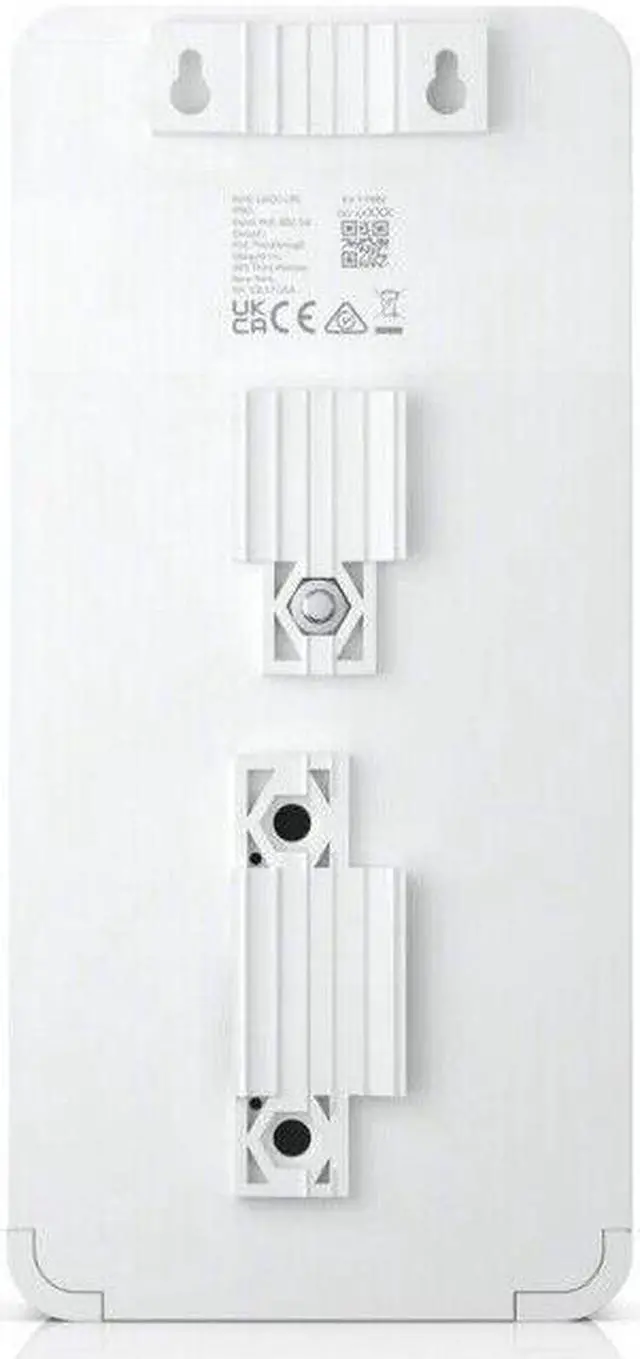

Mounting material Stainless steel
Weatherproofing IPX5
Hardware

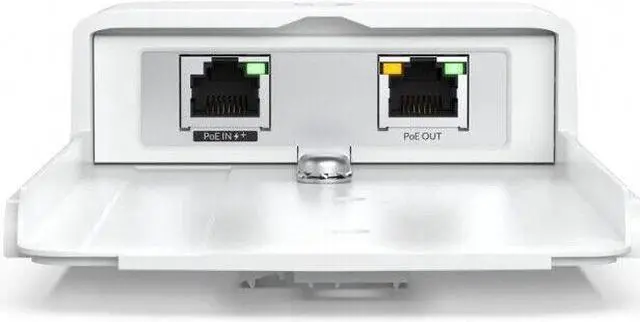

Networking interfaces (2) GbE RJ45 ports
Power method PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)
Max power consumption (excluding PoE out) 1.5W
Voltage range 37 to 57VDC
PoE interfaces (1) Passthrough PoE output 2-pairs (pins 1, 2+; 3, 6-)
ESD/EMP protection Air/contact: ± 30kV
DC sparkover voltage 90V at 100V/s
Max. impulse sparkover voltage 700V at 1kV/s
Discharge current 10kA+
Modes Long-range indoor
Outdoor ethernet repeater
Operating temperature -40 to 80° C (-40 to 176° F)
Operating humidity 10 - 95% non-condensing
Certifications CE, FCC, IC
LEDs
System (1) Blue: power ON
Ethernet (2) Green: 1 Gbps, Amber: 10/100 Mbps
PoE (1) Amber: passthrough PoE out
Chains with other UACC LRE units
(1) GbE RJ45 port for PoE/PoE+ input
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
Specification:
Mechanical
Dimensions 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5" )
Weight 350 g ( 12.3 oz)
Enclosure material UV stabilized polycarbonate
Mounting material Stainless steel
Weatherproofing IPX5
Hardware
Networking interfaces (2) GbE RJ45 ports
Power method PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)
Max power consumption (excluding PoE out) 1.5W
Voltage range 37 to 57VDC
PoE interfaces (1) Passthrough PoE output 2-pairs (pins 1, 2+; 3, 6-)
ESD/EMP protection Air/contact: ± 30kV
DC sparkover voltage 90V at 100V/s
Max. impulse sparkover voltage 700V at 1kV/s
Discharge current 10kA+
Modes Long-range indoor
Outdoor ethernet repeater
Operating temperature -40 to 80° C (-40 to 176° F)
Operating humidity 10 - 95% non-condensing
Certifications CE, FCC, IC
LEDs
System (1) Blue: power ON
Ethernet (2) Green: 1 Gbps, Amber: 10/100 Mbps
PoE (1) Amber: passthrough PoE out
