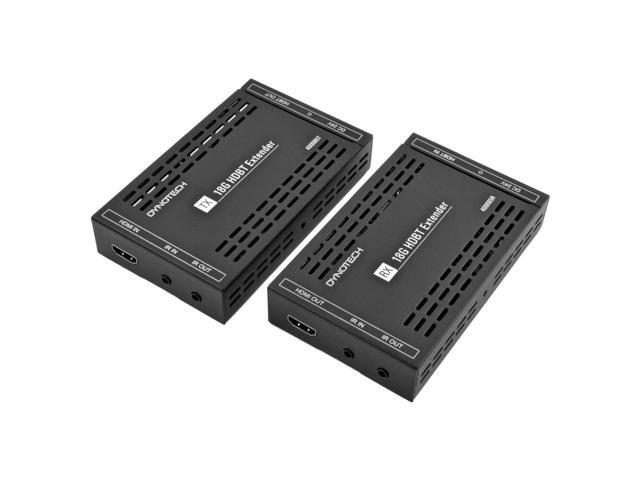

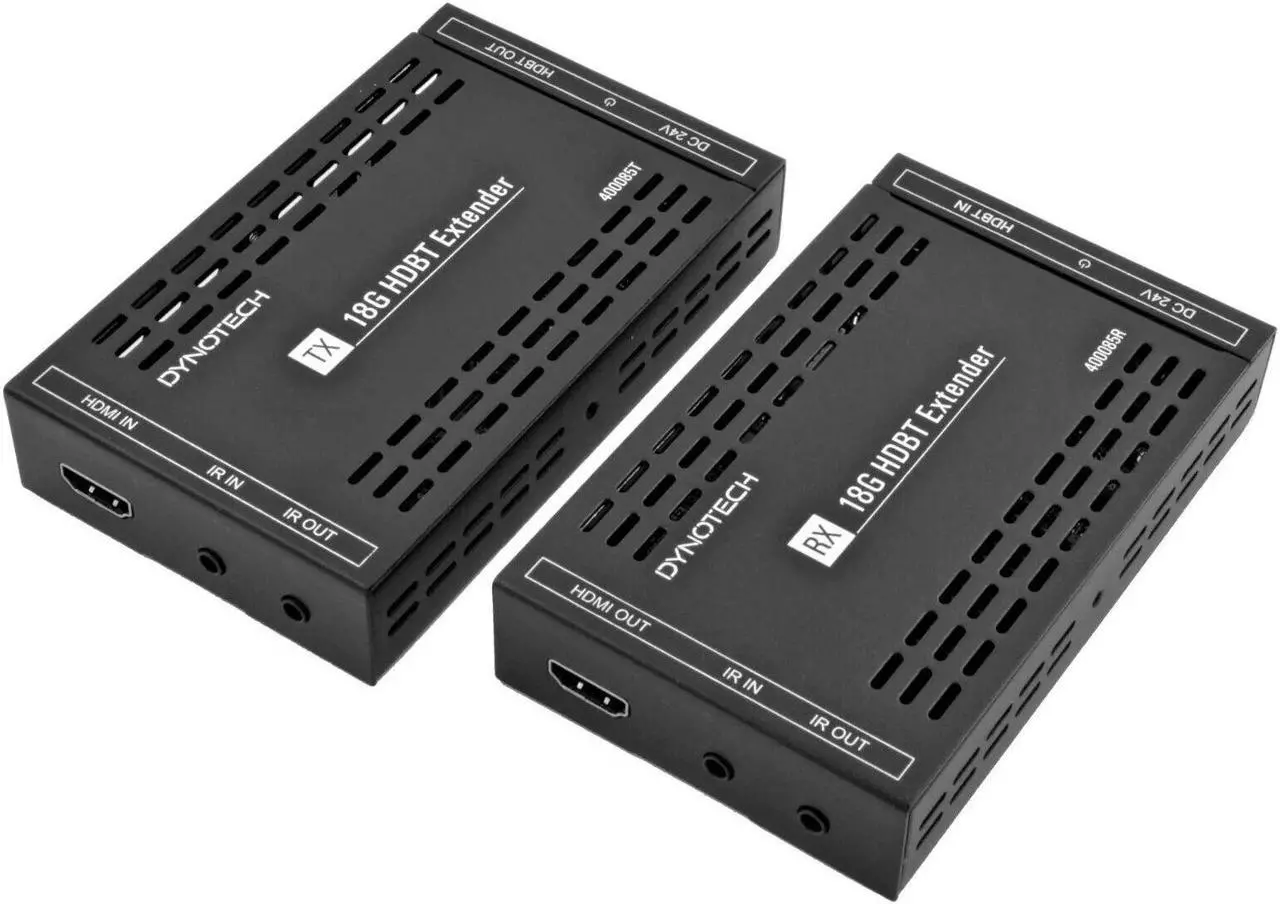

18G HDMI 2.0 HDBT Extender Kit over HDBaseT with Single CAT5e/CAT6 Cable 4K@60Hz Up to 230FT

18G HDMI 2.0 HDBT Extender Kit over HDBaseT with Single CAT5e/CAT6 Cable 4K@60Hz Up to 230FT

With Premium HD technology, you will get the best picture quality because this technology maintains your Ultra HD 4K picture quality with super stability/reliability, even at 230 feet away from your video source via single CAT5/CAT6 network cable.

18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate transmission channel

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. Its powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.

Features:

HMDI V2.0 standard and HDCP 2.2 compliant

Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR

Transmission distance is up tp 131ft/40m for 4Kx2K, and 230ft/70m for 1080P

Supports bi-directional IR pass-through for long-distance control

Supports bi-directional 24V PoC

Supports EDID and CEC pass-through

Specification

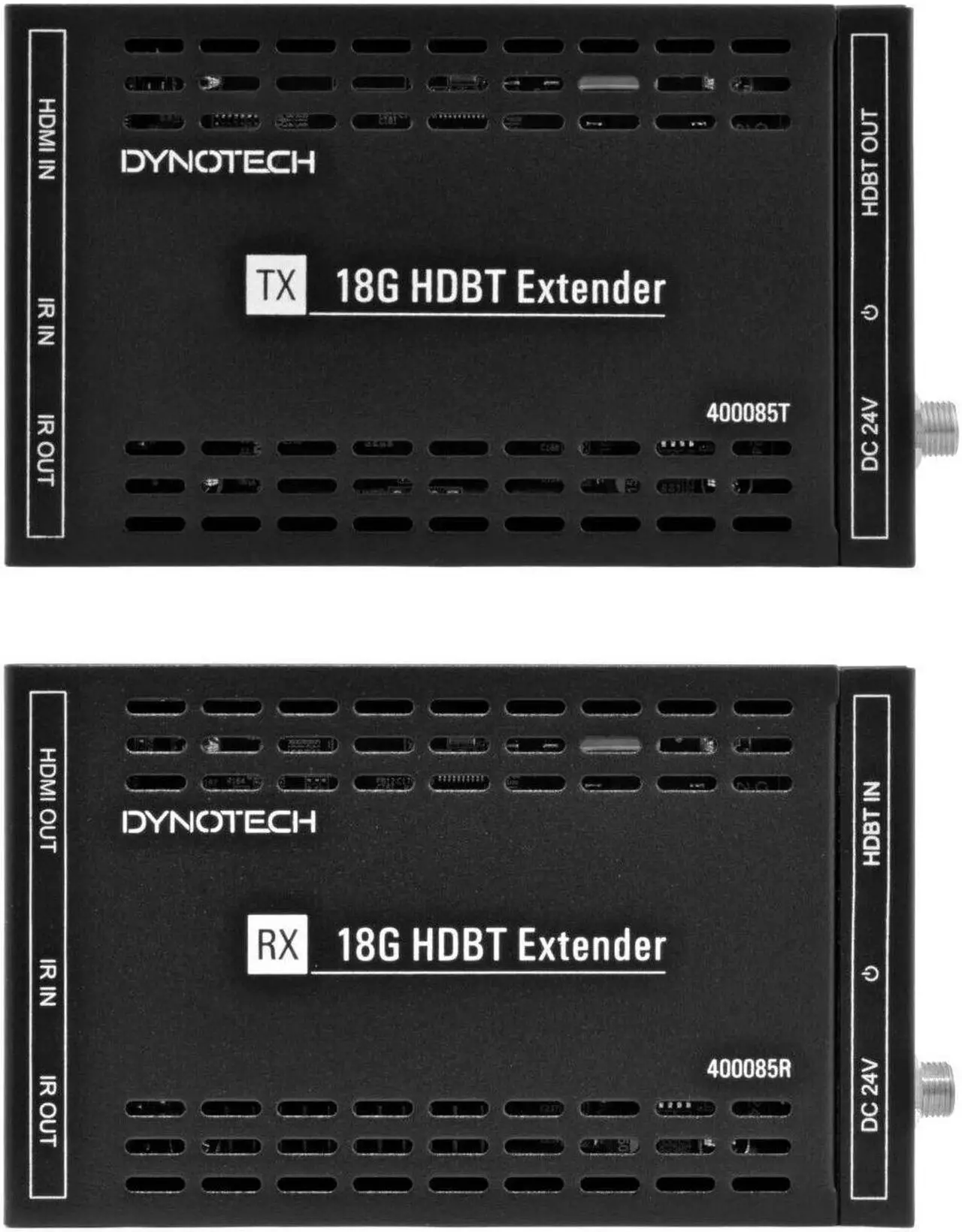

Transmitter (Tx)

Input: (1) HDMI

Input Connector: (1) Female type-A HDMI

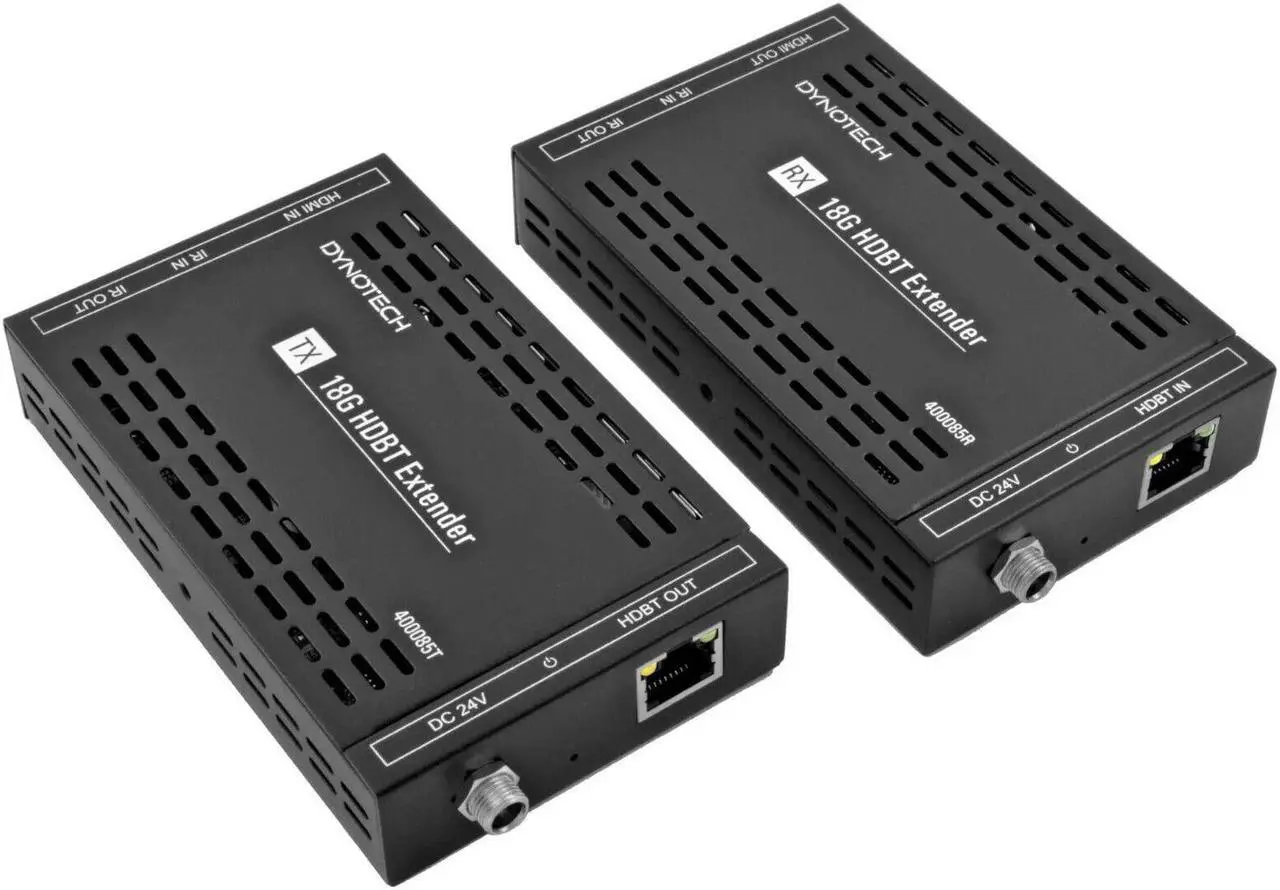

Output: (1) HDBT

Output Connector: (1) RJ45

Control: (1) IR IN, (1) IR OUT

Control Connector: (2) 3.5mm mini jacks

Receiver (Rx)

Input: (1) HDBT
Input Connector: (1) RJ45
Output: (1) HDMI
Output Connector: (1) Female type-A HDMI
Control: (1) IR IN, (1) IR OUT
Control Connector: (2) 3.5mm mini jacks

General

Video Resolution: Up to 4Kx2K@60Hz 4:4:4

Transmission Mode: HDBaseT

Transmission Distance: 1080P@60Hz

HDMI Version : 2.0

HDCP Version 2.2

Bandwidth: 18Gbps

Power Consumption: 11.2W (Max)

Operation Temperature: -10 degree celcius ~ +55 degree celcius

Storage Temperature: -25 degree celcius ~ +70 degree celcius

Relative Humidity: 10%-90%

Dimension (W*H*D): 74mm x 24mm x 120mm

Net Weight: Tx: 200g, Rx: 210g

What's in the Box

1x Transmitter (TX)

1x Power Adaptor (24V DC, 1.25A)

1x IR Receiver

1x Receiver (RX)

1x User Manual

1x IR Emitter
