Specification:
- Support resolution:3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
- Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max transmission bandwidth: 1.65Gbps
- Input/Output HDMI cable distance:16ft(5m) AWG26 HDMI standard cable
- Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V

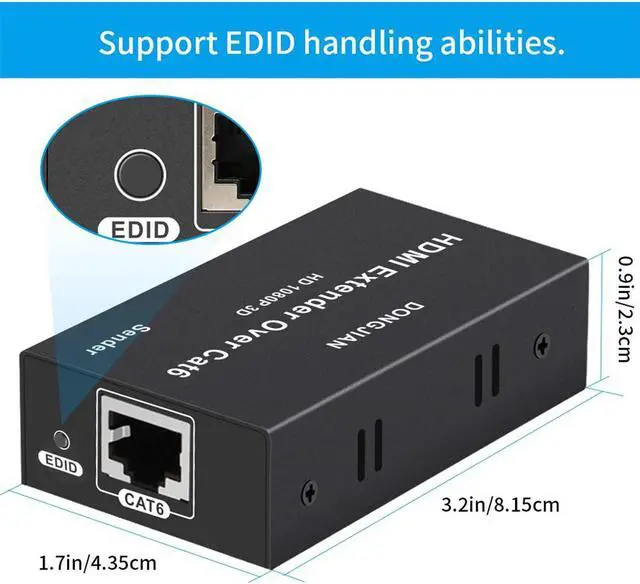

EDID copy
- Connect the sender and the monitor with an HDMI cable.
- Connect the power and press the EDID button,indicator will flash 3 times.
- After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.
- (Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)

Long distance
- Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
- Our equipment supports 3D effects to give you an immersive experience
- Note: Requires both your input and output to support 3D functionality

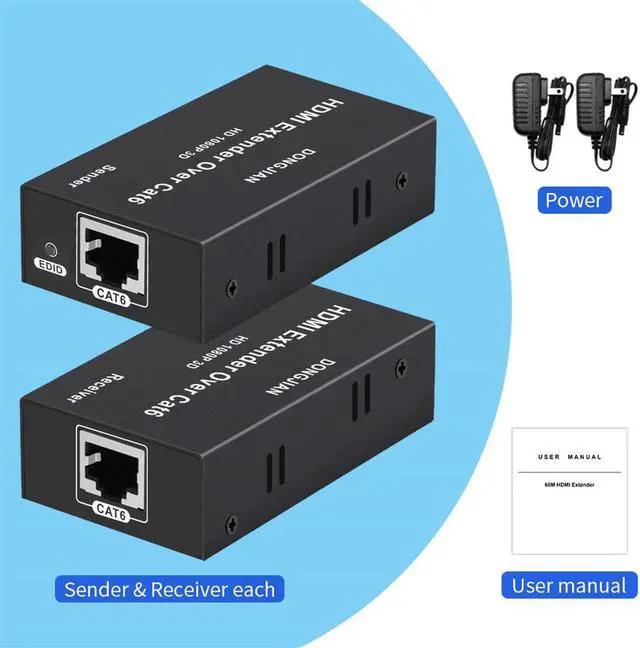

Products include
- HDMI sender x 1
- HDMI Receiver x 1
- 5V DC power supply x 2
- User's Manual x 1
