Specification:
- Support resolution:3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz
- Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max transmission bandwidth: 1.65Gbps
- Input/Output HDMI cable distance:16ft(5m) AWG26 HDMI standard cable
- Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V

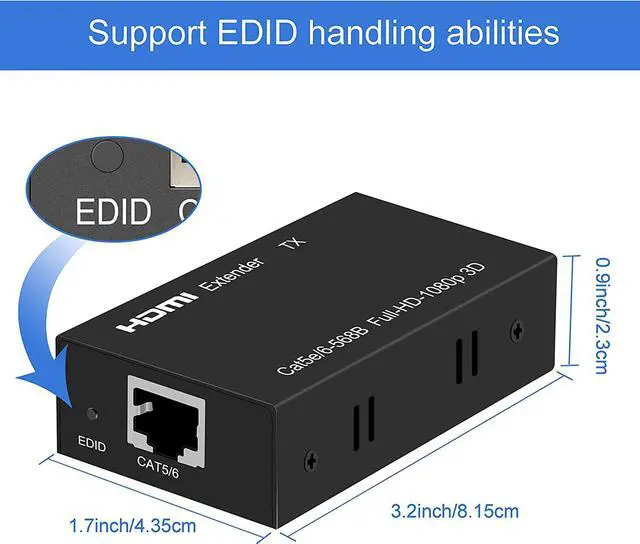

EDID copy
- Connect the sender and the monitor with an HDMI cable.
- Connect the power and press the EDID button,indicator will flash 3 times.
- After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.
(Sender is connected to the power supply, press and hold the EDID button for 3 seconds, the signal indicator lights up, and then turns off, which means to restore the factory settings)
Long distance

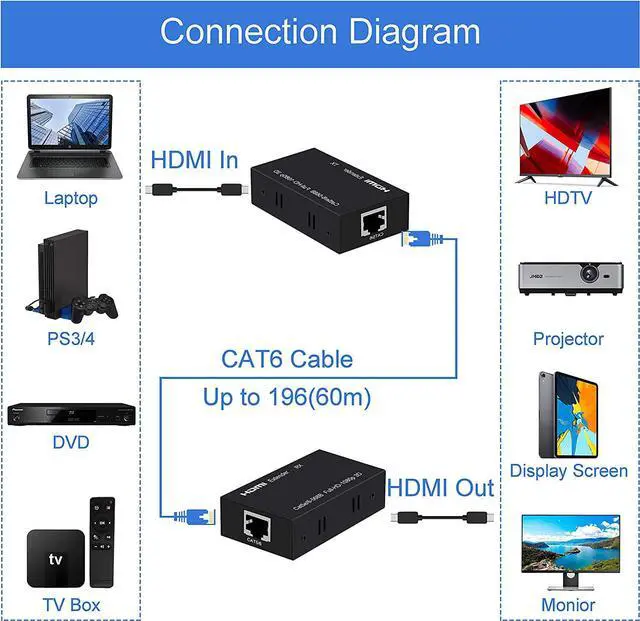

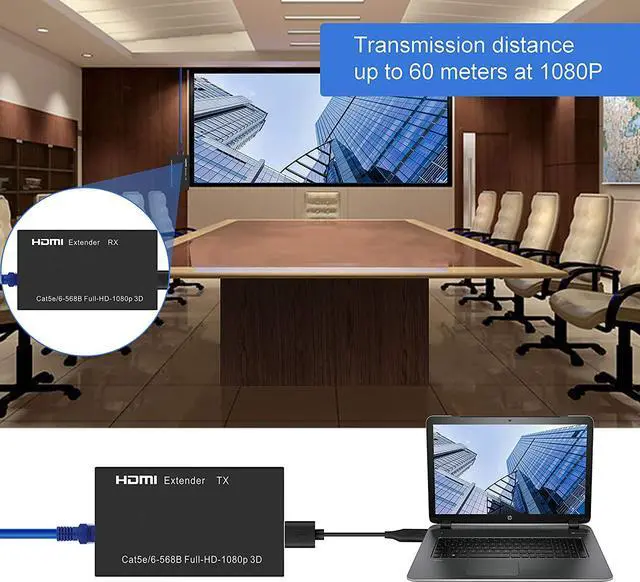

- Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
- Our equipment supports 3D effects to give you an immersive experience
- Note: Requires both your input and output to support 3D functionality

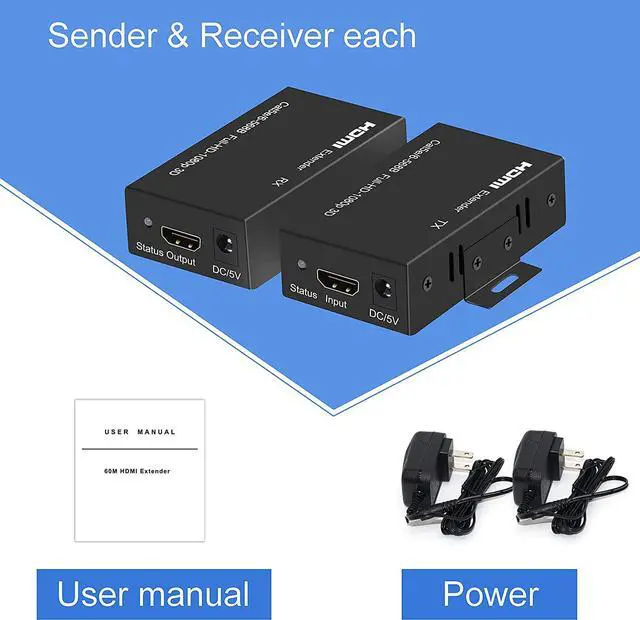

Products include

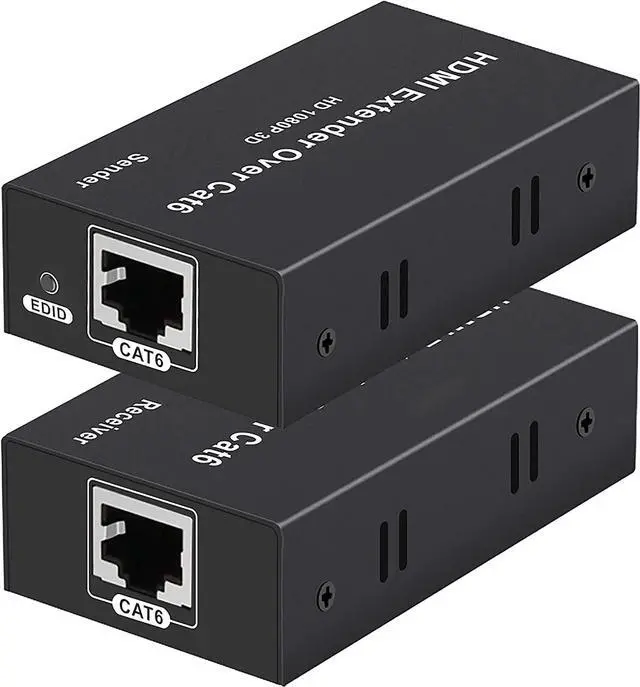

- HDMI sender x 1
- HDMI Receiver x 1
- 5V DC power supply x 2
- User's Manual x 1
- Brackets x4
