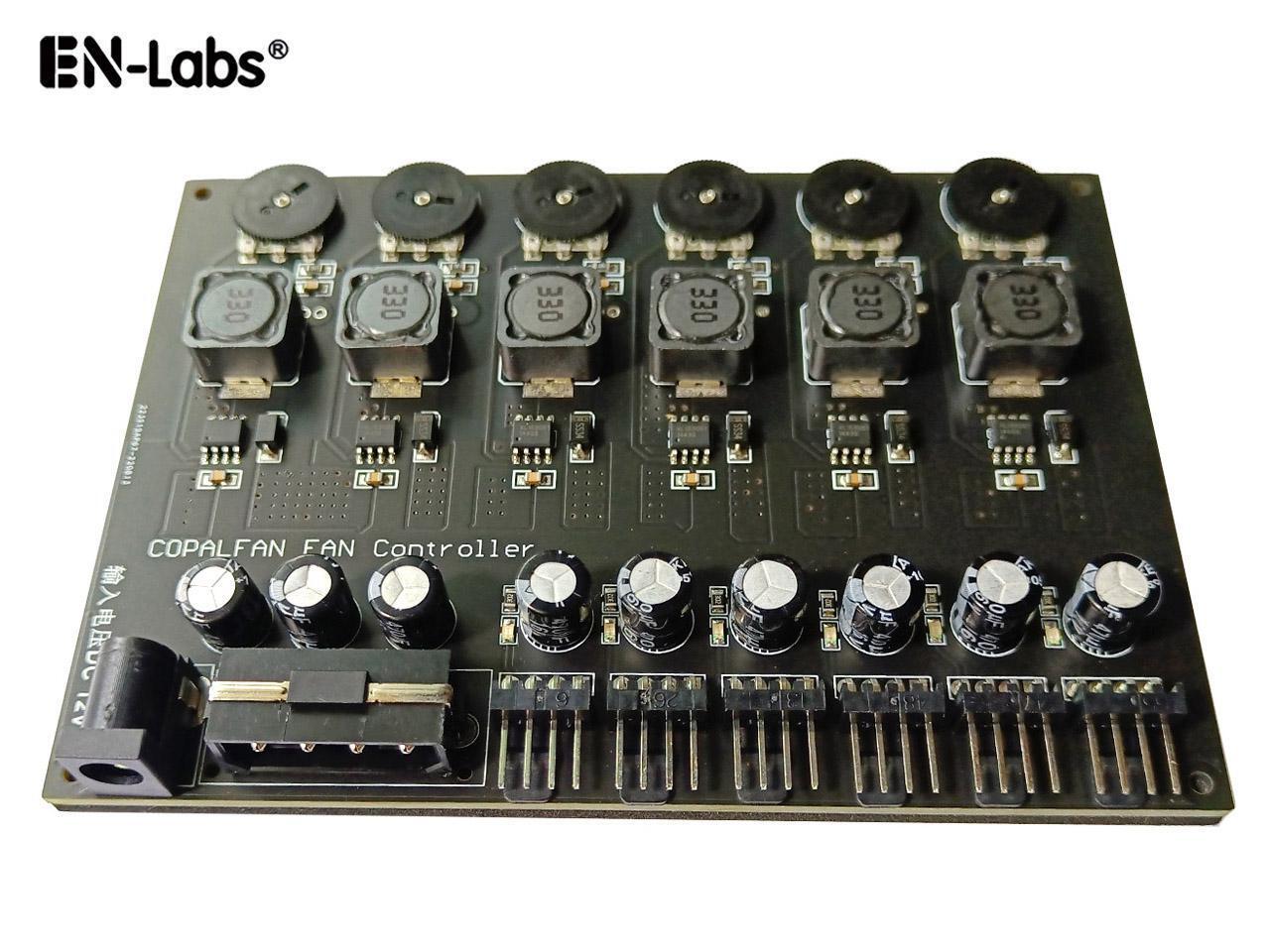

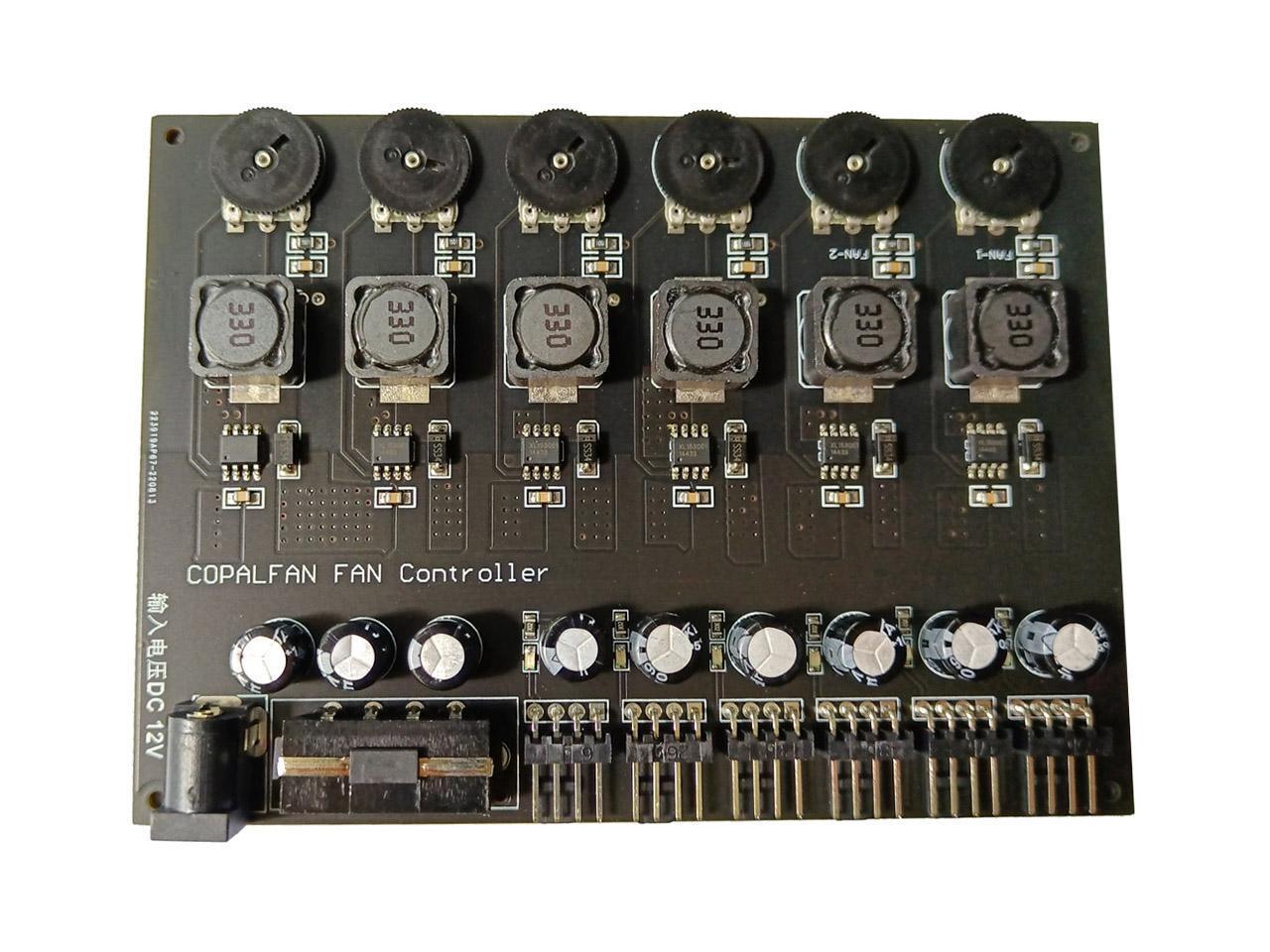

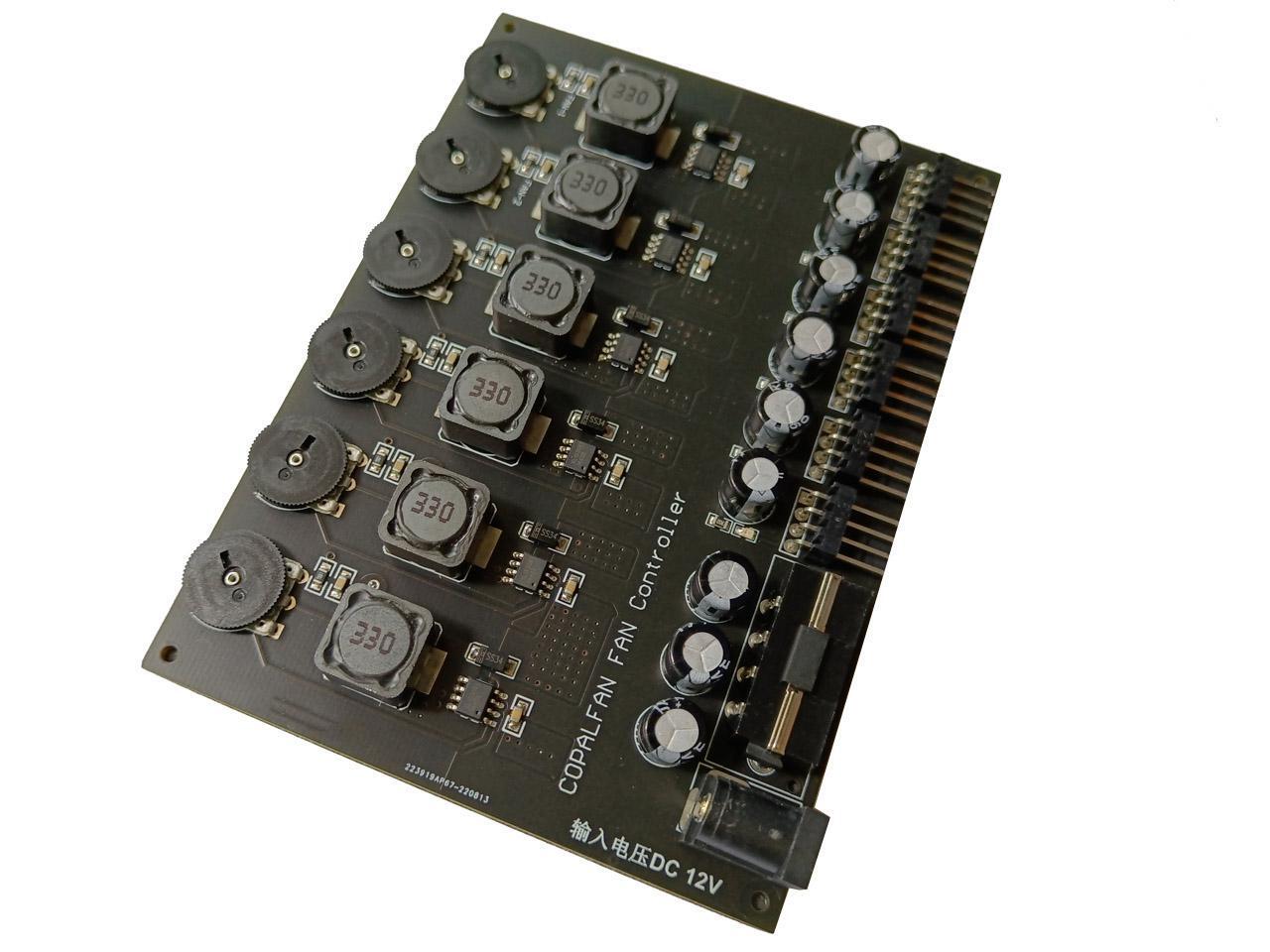

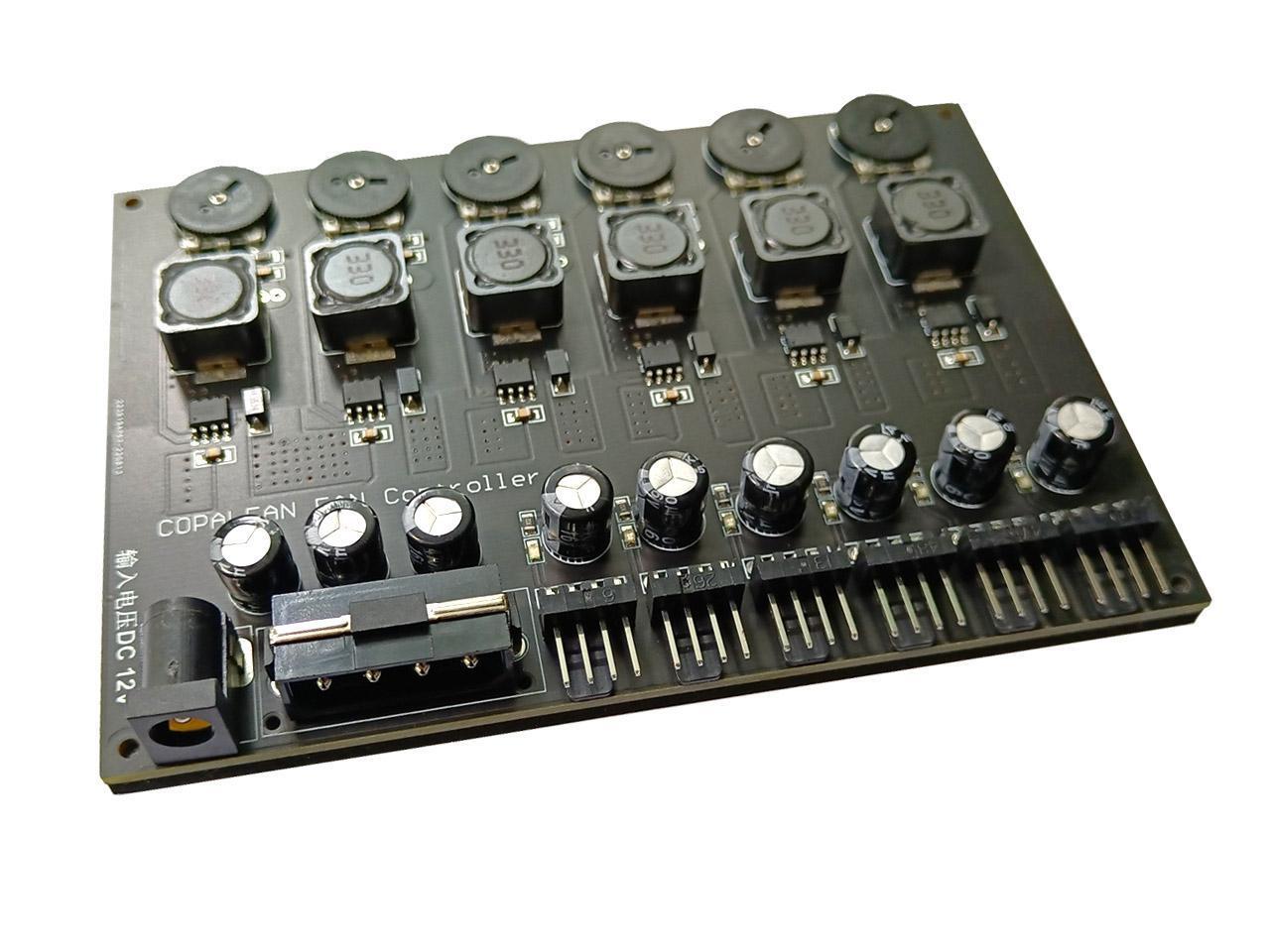

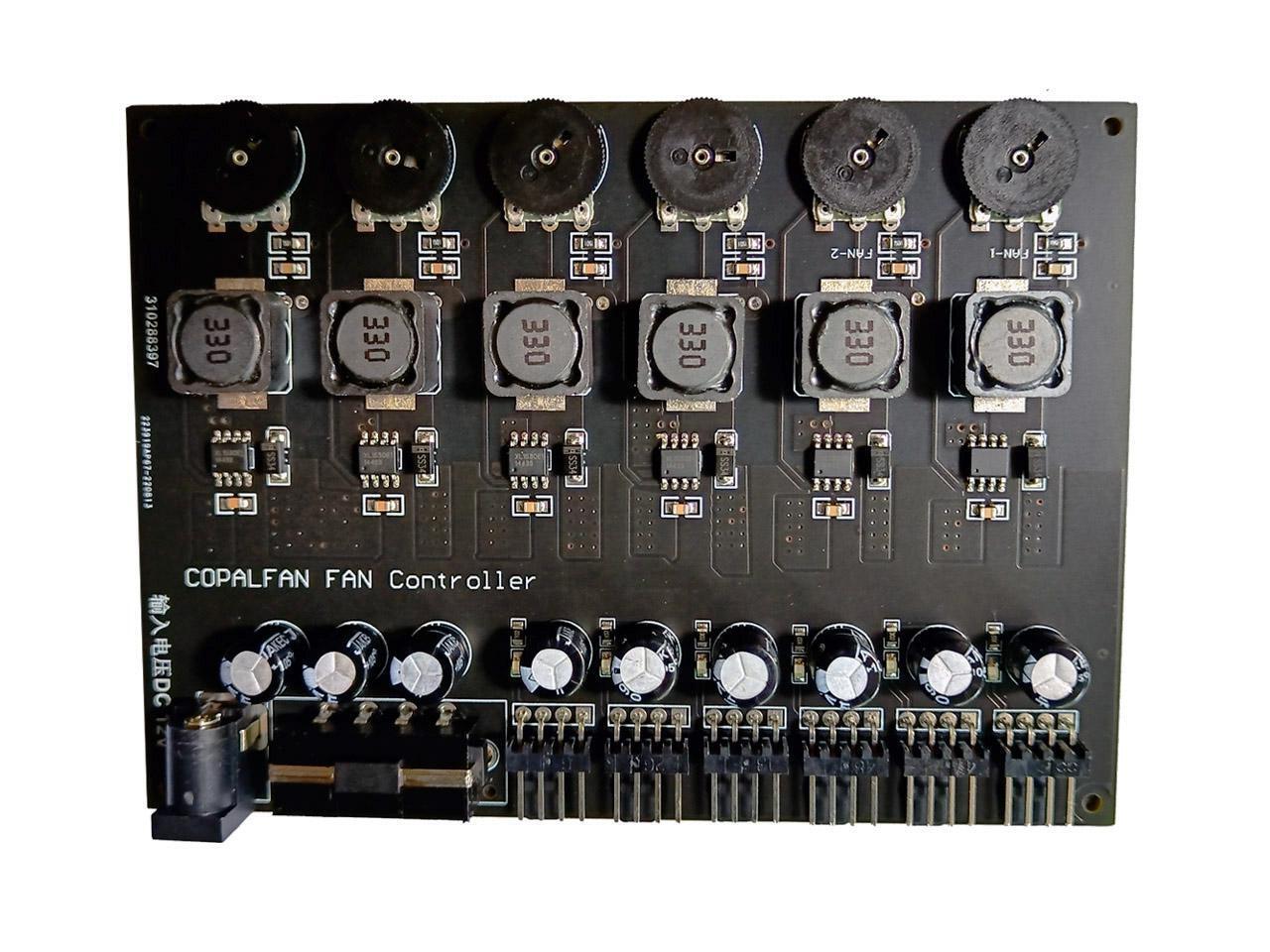

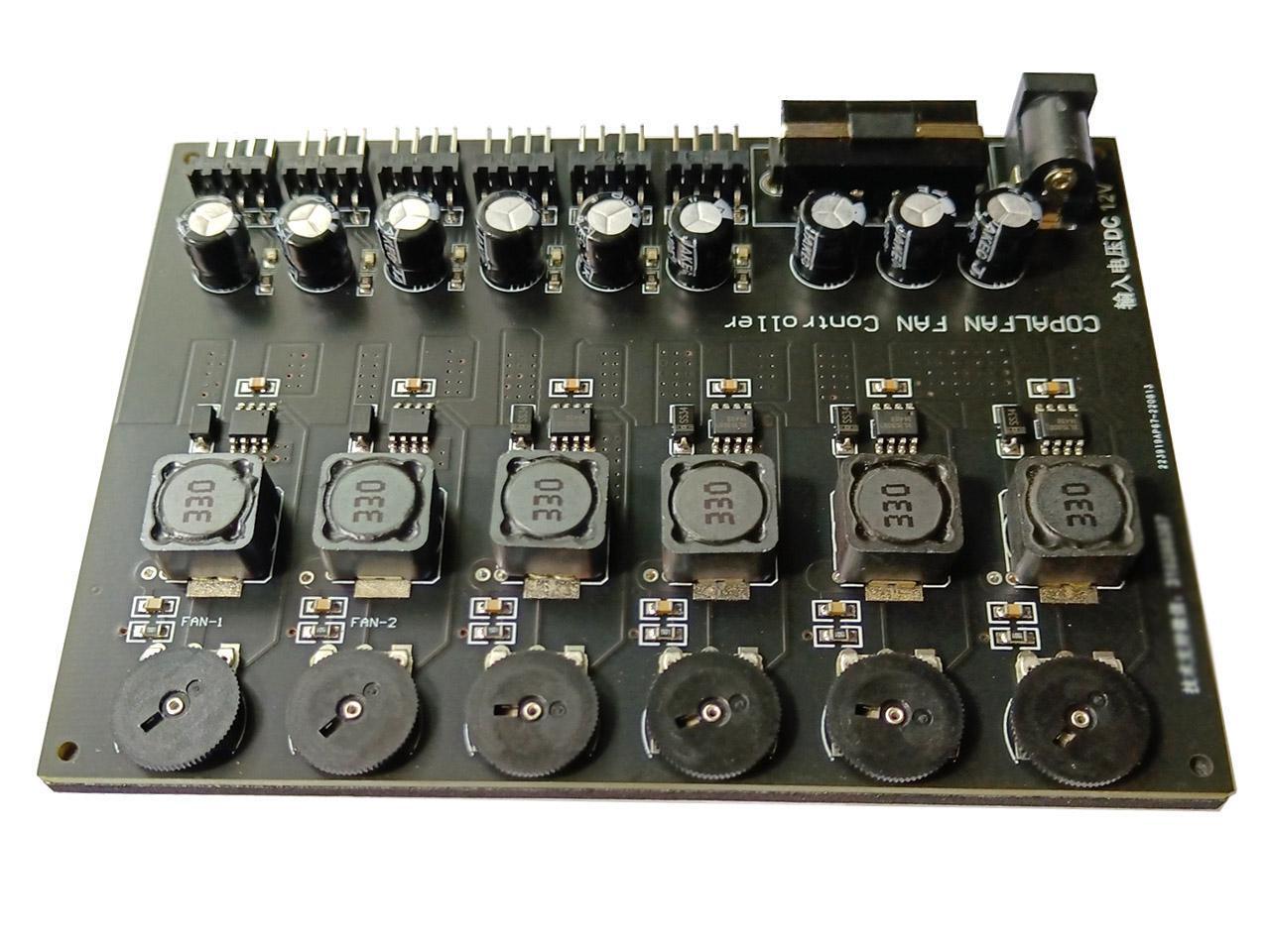

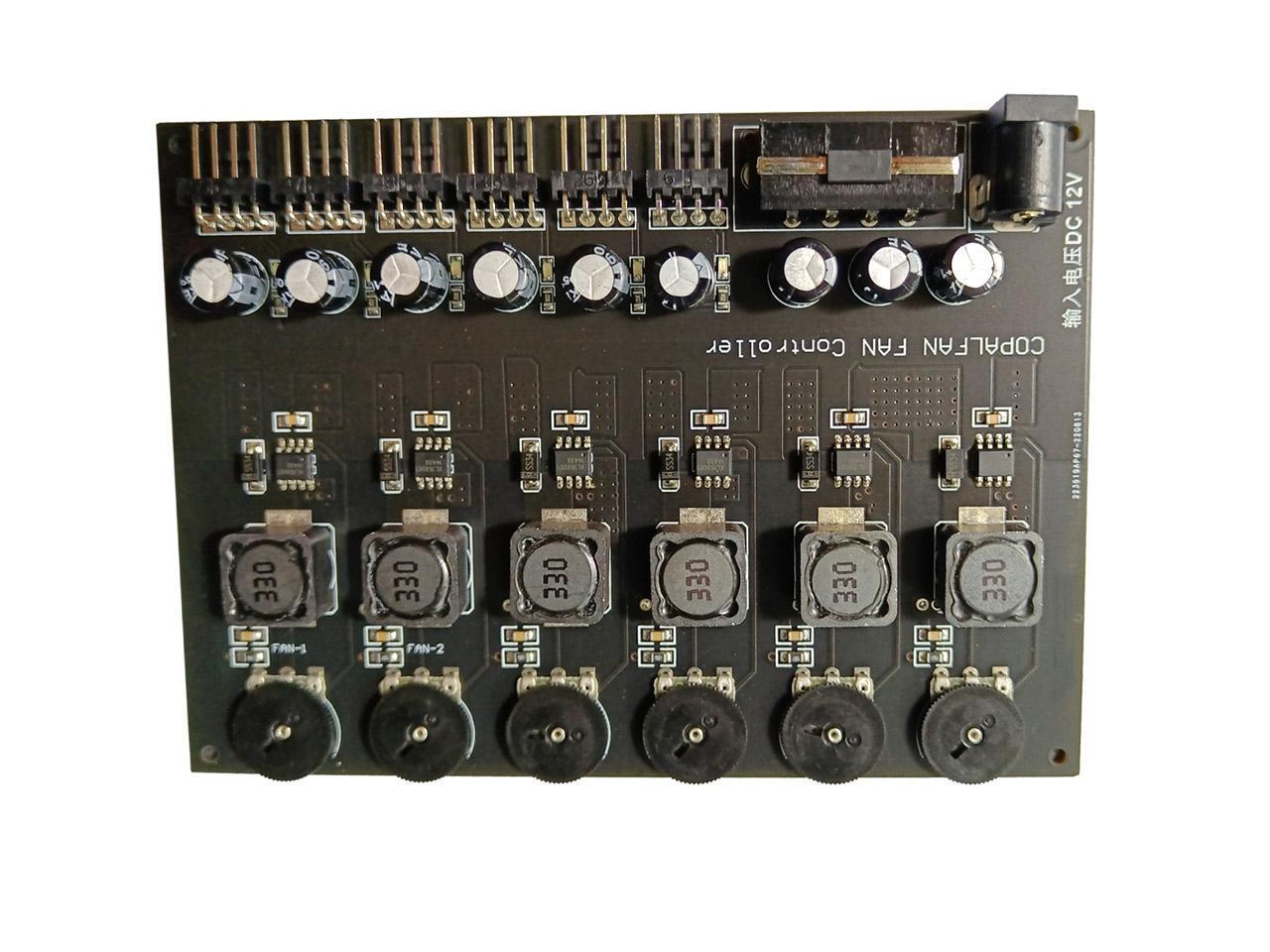

Six-channel 120 Watt. High-Power computer fan speed controller
- Gain full control of up to six fans, like CPU fan, chassis fan, video card fan, hard disk fan and chipset fan, to achieve a balance of cooling performance and noise levels.
- This gadget comes with six 4-pin connectors compatible with 3-pin/4-pin fans, works with 12V fans, and includes six dials to adjust each corresponding fan speed from 0% to 100% trough voltage adjustment (not PWM control).
- A 4-pin Molex connector or DC 12V connector draws power from computer PSU or power adapter to power the gadget and connected fans.
- Adhesive tape at the back lets you mount the controller at a convenient place inside the chassis.
- Supports computer parts with cooling fan, including CPU, HDD, DDR, VGA, etc.
- Power by Molex 4pin female or DC 12V header(5.5*2.1 or 5.5*2.5 connector)
- Support 6 channels fan speed adjustment individually
- Each channel can be turned off or adjusted to 100% full speed
- Adjustable knob available to adjust cooling fan revolution speed for each fan individually
- Each channel can control 4-pin fan or 3-pin fan (Just voltage adjustable control, NOT PWM CONTROL)
- Support current 3A max each channel,support total 120Watt.(12V/10A)output
- 6 Channel computer 3pin / 4pin fan speed controller
- Voltage adjustable control, NOT PWM CONTROL
- Speed controling rang is 0% to 100%
- Support connected fan shut down
- Power by molex or DC12V
- Support DC 12V power adapter equipped 5.5*2.1 or 5.5*2.5 connector
- High quality power manage IC controller
- Support 3A max. high power fan's controlling
- Support total 120 Watt. output( 12V/10A total, the currect is limitted by molex header)
- Six knobs for controling,6 channels fan speed can be adjusted individually
|Type||3Pin/4Pin Fan Speed Controller|
|Controller mothed||Voltage adjustment Controller|
|Input||Molex 4pIn / DC 12V|
|Output||6 x 4Pin / 3Pin Fan|
|Output Current||Current 3A Max. each channel|
|Output Max. Watt.||120Watt. of total 6 channels|
