Features

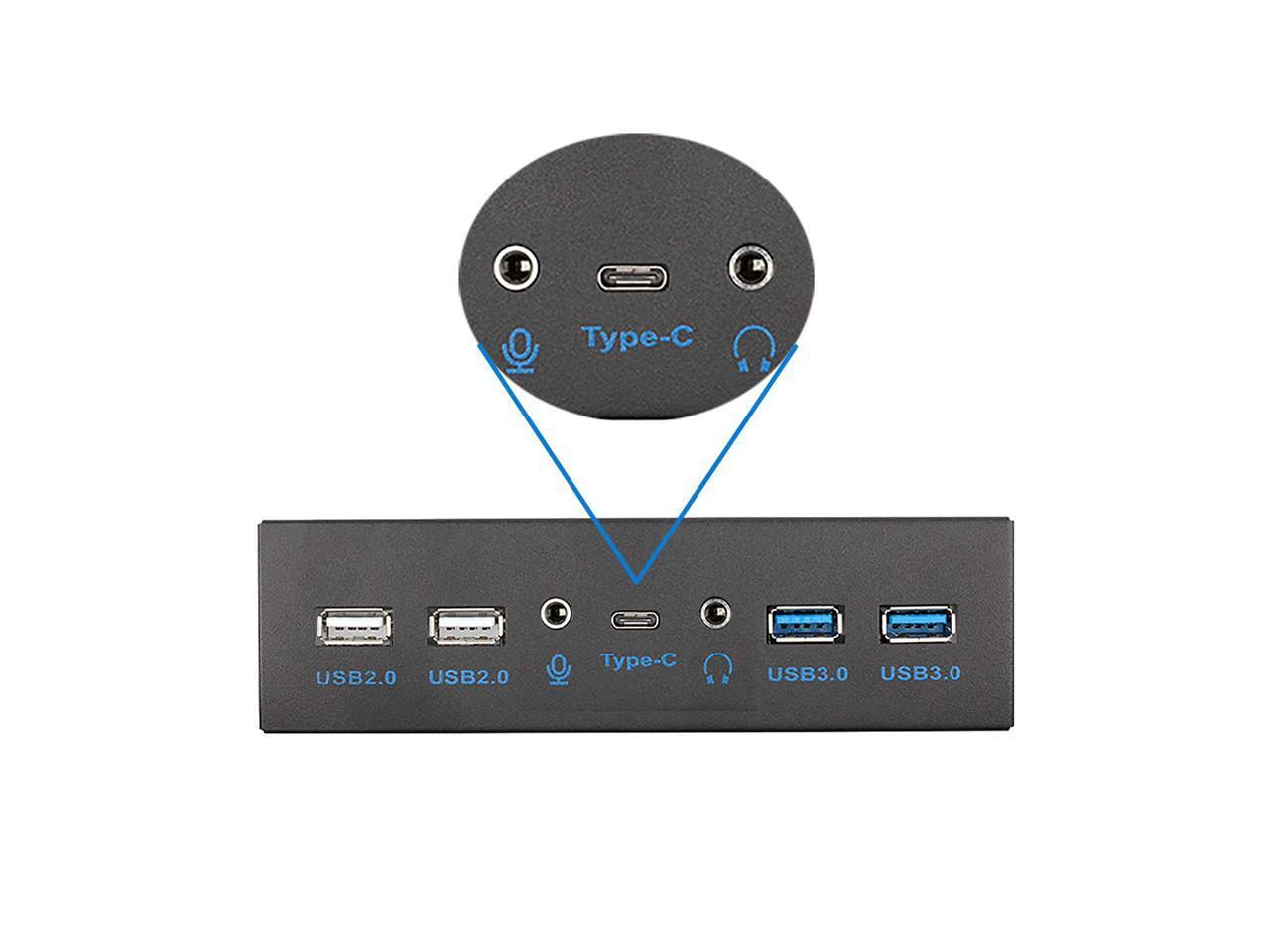

- 5.25 -inch Front Bay to 5-Port USB Panel Hub and 1 HD Audio Port/1 Microphone Port

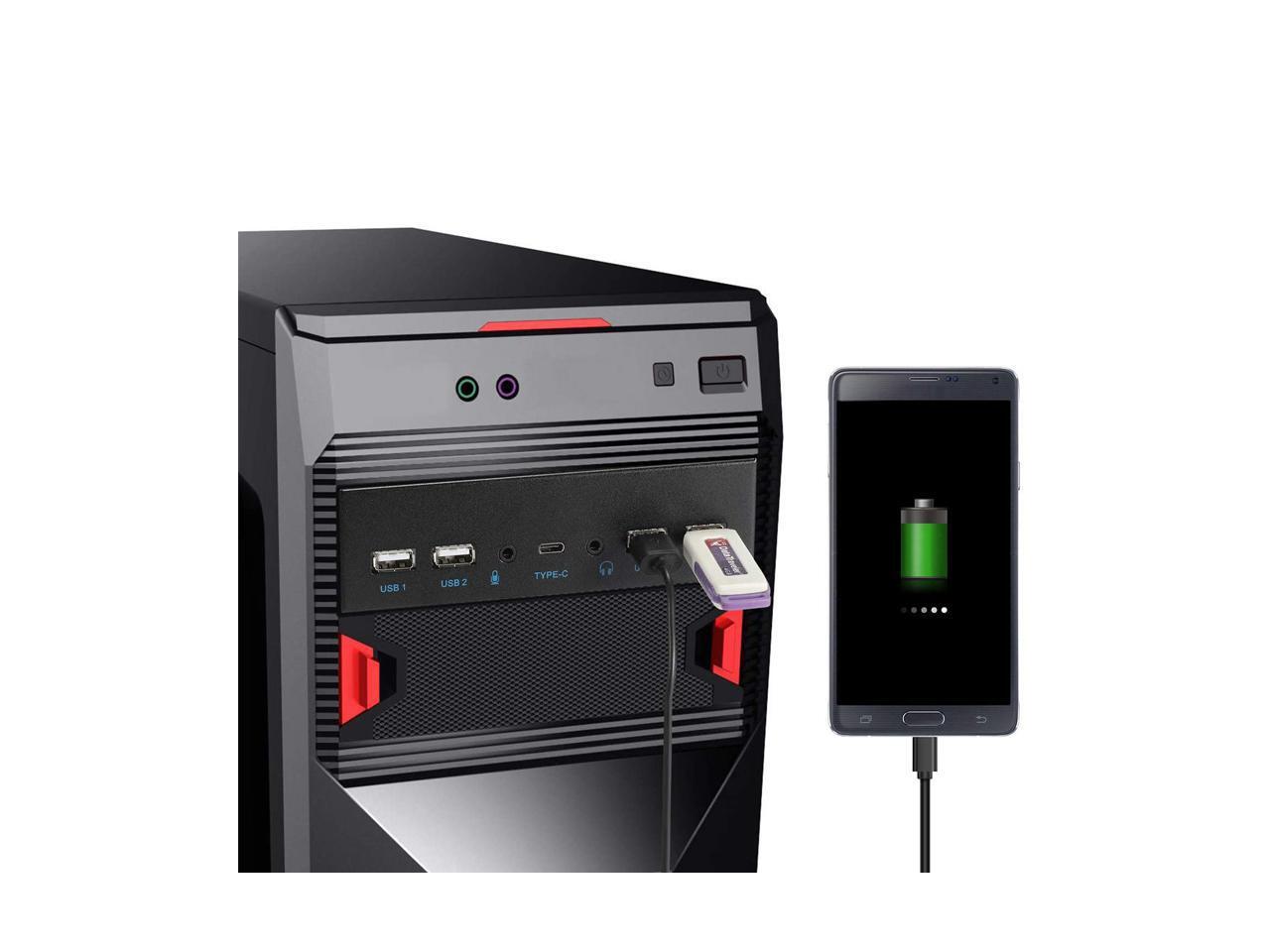

- Turns any available 5.25 -inch computer case front bay into a 5 Port USB hub, USB 3.2 Gen 2 Type-C, 2 ports USB 3.0 and 2 ports USB 2.0
- Type-C port, compliant with USB 3.2 Gen 2 10Gpbs data rate
- USB 3.0 Ports, compliant with the USB 3.0 standard which supports up to 5Gbps data transfer and up to 900mA of current output.
- USB 2.0 Ports, compliant with the USB 2.0 standard which supports up to 480Mbps data transfer and up to 500mA of current output.
- HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing
- Installation is quick and easy, and the unit is plug and play.
- Simply fit the bay into the space with the screws provided,

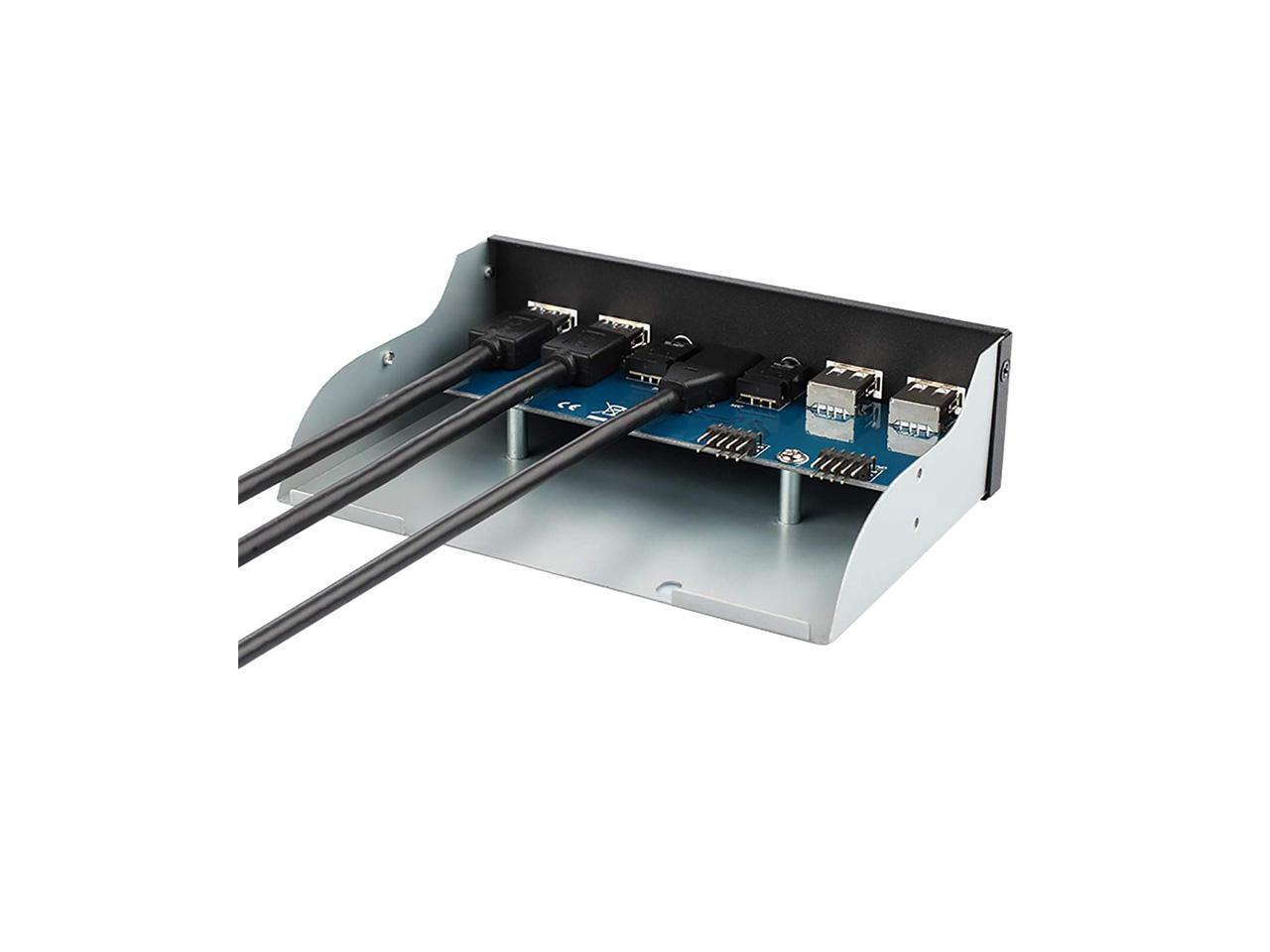

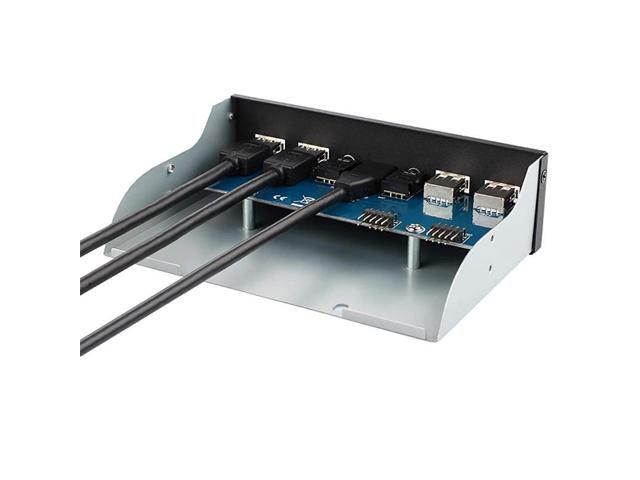

- Plug the bay into the USB 3.2 20Pin A-Key, USB 3.0 19/20 pin connector and USB 2.0 10pin connector on the motherboard, and you're all set.
Note
- One USB 3.2/3.1 20pin Motherboard header (aka Type-E) Key-A is needed for USB-C Expansion
- One 20 pin USB 3.0 and 10pin USB 2.0 header on motherboard are needed for USB 3.0 and USB 2.0 ports expansion
- AC97/HD Audio 10pin header on motherboard is needed for audio and mic. port
- 5.25" front panel
- 1x USB-C 10Gbps output
- 2x USB 3.0 output
- 2x USB 2.0 output
- 1x HD Audio output
- 1x Mic input
- USB 3.2 / 3.1 20pin Motherboard header (aka Type-E) is needed for USB-C Expansion
- One 20 pin USB 3.0 Motherboard header is needed for 2x USB 3.0 Expansion
- One 10 pin USB 2.0 Motherboard header is needed for 2x USB 2.0 Expansion
- AC97/HD Audio 10pin header on motherboard is needed for audio output and mic. input
- Newest USB 3.2 / 3.1 20pin motherboard Key-A is needed for USB-C port output
- USB 3.2 / 3.1 GEN2 data transfer speed up to 10Gbps
Specification
| Type | USB Type-C 10Gbps 5.25 Inch Front Panel |
|---|---|

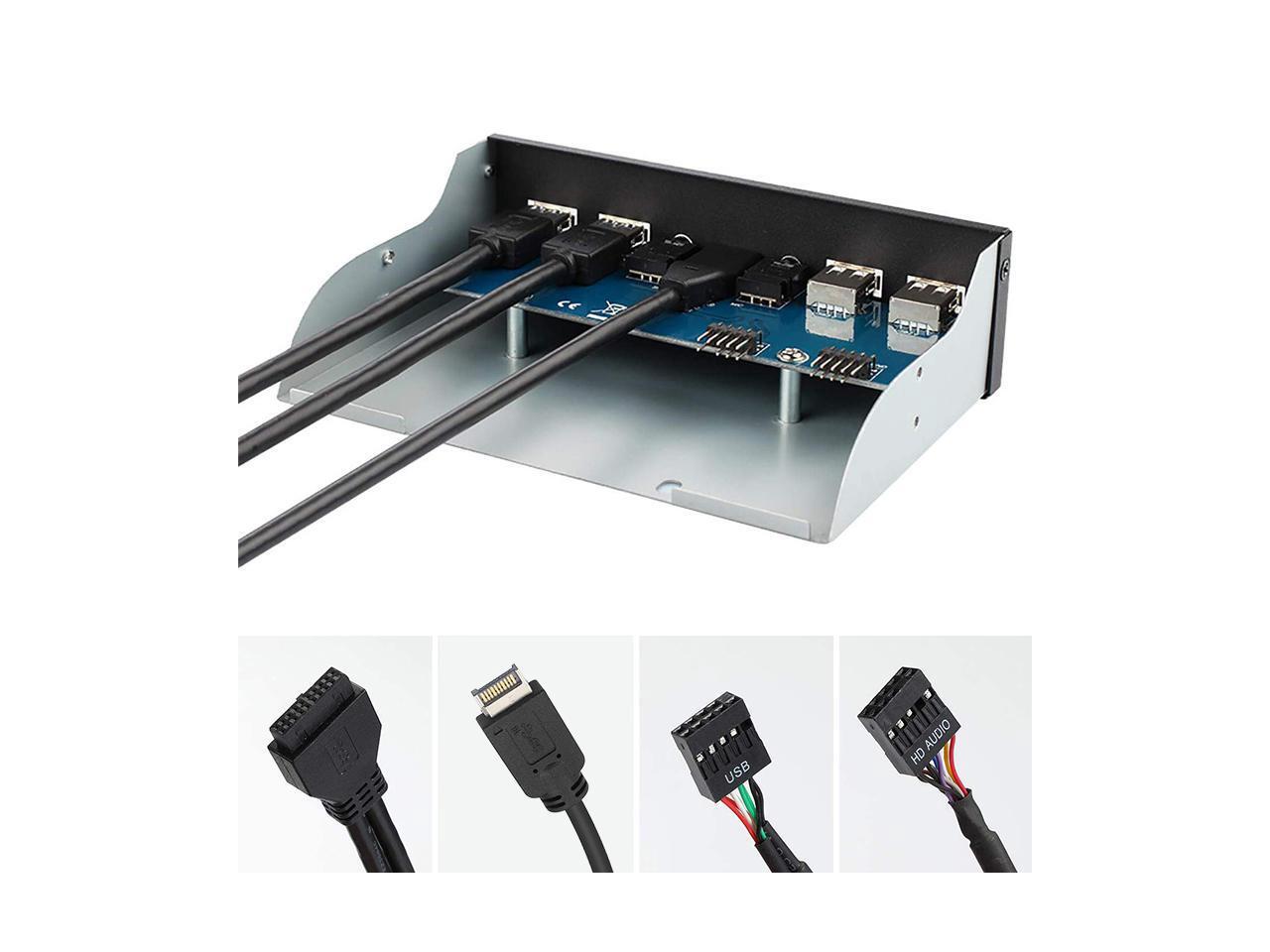

| Cable Connector-A | USB 3.2 20Pin Key-A Motherboard Header Cable |
| Cable Connector-B | USB 3.0 20Pin Motherboard Header Cable |
| Cable Connector-C | USB 2.0 10Pin Motherboard Header Cable |
| Cable Connector-D | HD Audio 10Pin Motherboard Header Cable |
| Output-1 | 1x USB Type-C (10Gbps) |
| Output-2 | 2x USB 3.0 (5Gbps) |
| Output-3 | 2xUSB 2.0 (480Mbps) |
| Output-4 | 3.5mm Stereo HD audio & Mic |
| OS Requirement | Compatible with Windows XP/Vista/7/8/ 8.1,IOS |
| Installation | 5.25" Open Bay Space |
| Cable Length | 2.6 Feet for All Cables |

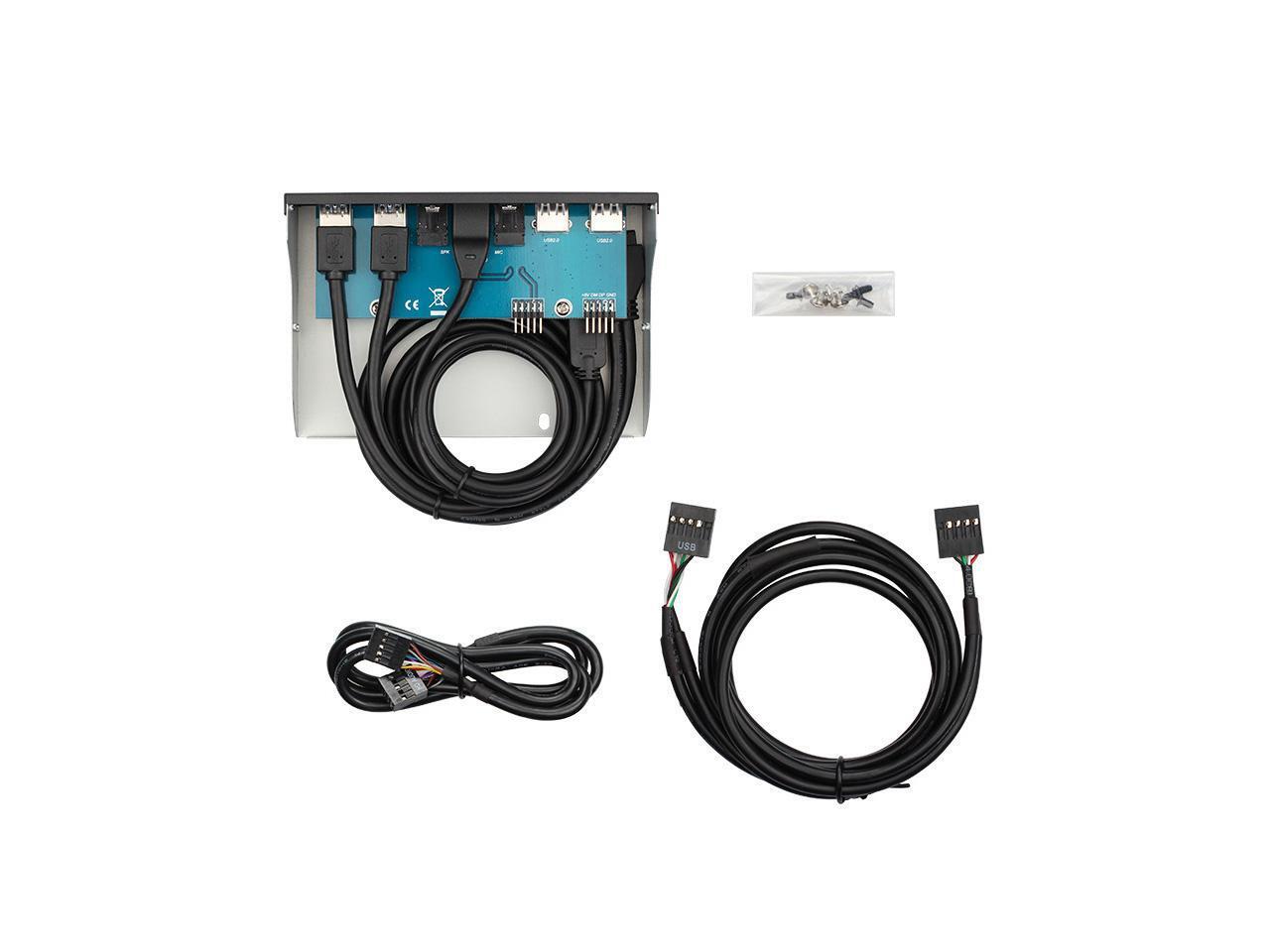

| Package Contents | Front Panel Bay & Screws |
