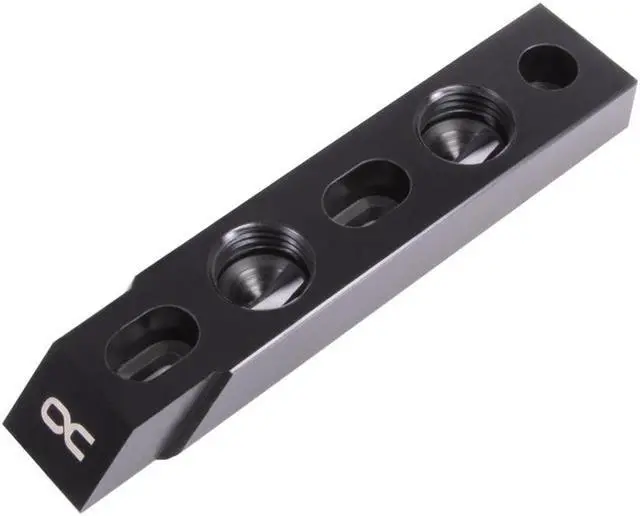

Alphacool Eisblock Aurora Terminal Flat Straight - Acetal (12987)

The conventional orientation of the connection options with the Alphacool Eisblock Aurora graphics card water coolers is vertical. If you prefer a horizontal orientation, you can now realize that with the Alphacool Aurora Flat terminal. The terminal, made of acetal, is compatible with all Alphacool Eisblock GPX Aurora coolers for Geforce and Radeon graphics cards. The terminal is only 19 mm wide and nestles closely to the Eisblock Aurora graphics card water cooler. The connectors are far enough apart to allow the use of connectors with a total diameter of up to 28 mm without collision.

The mounting is simple, the two o-rings are simply put into the respective groove on the side of the terminal, which is then placed on the graphics card cooler and screwed into place. The conversion can easily be done by anyone in a few minutes with the supplied tools. For peace of mind, we recommend the
Alphacool pressure tester (Item number: 17482) is used on the reassembled block to ensure a leak free watercooling experience.
Technical data: L x W x
H: 92 x 19 x 10, 5
mmNet weight: 18
gMaterial:
AcetalThreads: 2 x G1/4“ Downlaod data sheet
PDF: Alphacool Eisblock Aurora Terminal flat straight - Acetal
