Alphacool ES Flow and Temperature Indicator HighFlow with RPM-Signal (17558)

Integration made easy

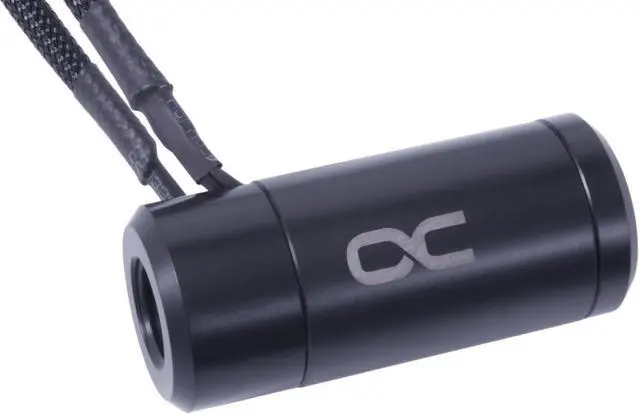

The Alphacool ES "HighFlow" flow and temperature sensor is very compact and can be integrated into any water circuit thanks to its two G1/4" internal threads. It does not matter whether the system is equipped with soft tube or HardTubes. Simply screw the appropriate connections to the sensor and then mount it at any position in the loop.

Temperature sensor

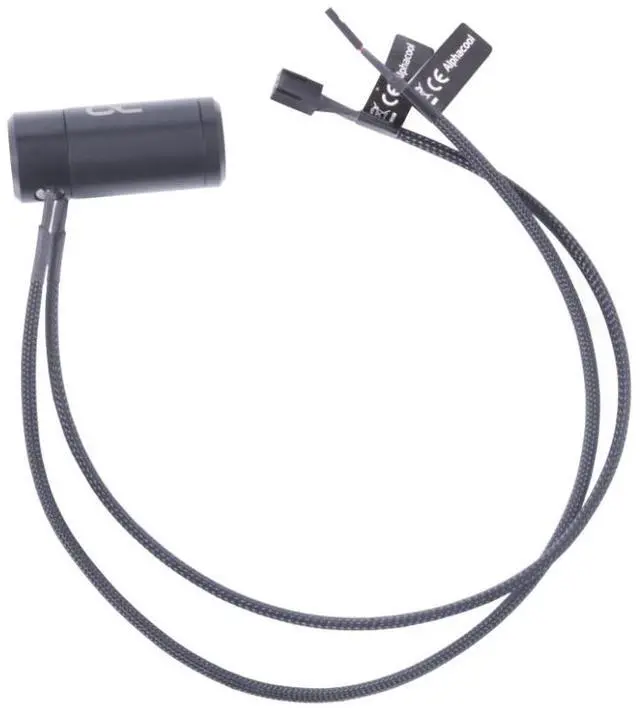

A classic NTC 10 kOhm thermistor is used as the sensor. The readable temperature range is between -40 and 125°C. The cable is 43.5 cm long and terminates in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual of your mainboard. Of course, there are also various external controllers that offer a connection for the sensor (controller with NTC connection). A corresponding readout device is not included in the scope of delivery.

Flow sensor
The flow sensor enables continuous measurement of the water flow within. The sensor has a 42cm sensor cable included in the scope of delivery and corresponding connectors.

Note: The data sheet with the measurement values for the water flow (L/h per RPM) is available for download as a PDF file under the following link. (Alphacool ES flow and temperature indicator HighFlow - flow-measurement)

Technical data
L x W x H
58 x 25 x 25 mm
Material
Acetal
Colour
Black
Weight
45 g
Threads
2x G1/4" internal thread (for max. 5mm thread length)
Cable length hall sensor
420 mm
Cable length temperature sensor
435 mm

Download data sheet PDF: Alphacool ES flow and temperature indicator "HighFlow" with RPM-Signal
