Alphacool Core 2-Part Heat Conducting Adhesive (13004)

Alphacool 2-part thermal adhesive is perfect for mounting coolers onto items such as motherboard VRMs. The 2-part epoxy-based adhesive is the optimal choice when coolers need to be mounted more securely onto the CPU or GPU of single-board computers (Raspberry PI, ODROID, Arduino, Cubieboard etc. ). The field of application is so wide that even coolers on electronic components in power amplifiers or RC vehicles can be reliably and stably bonded. PropertiesThe Alphacool 2-part thermal adhesive is electrically non-conductive. The high metallic content of aluminium nitride (70 - 73 %) guarantees optimal thermal conductivity ( 0.9 W/mK).

The thermal adhesive creates a stable adhesive bond. Due to the material composition, mechanical variances between the components to be bonded can also be compensated well. Surface curing is achieved after 2h (at 25°C ambient temperature). Complete curing takes place within 5 to 7 days (at 25°C ambient temperature). ApplicationAll surfaces must be clean and free of grease, dust or contaminants.

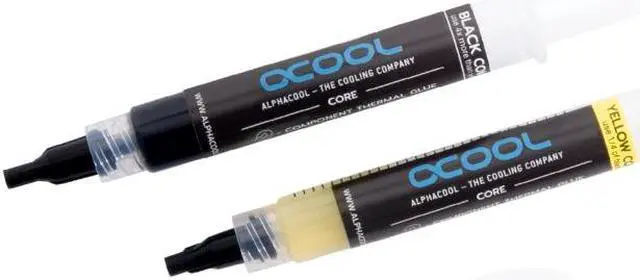

Important: The processing time is limited! As a rule, the processing time is about 10 minutes until the adhesive starts to cure. Adhesive (black) and applicator (yellow) must be thoroughly mixed in a ratio of 4:1 on a clean surface for approx. 2 to 3 minutes with a spatula. Perfect mixing is important to ensure an optimum bond. The two-part adhesive can then be applied thinly to the surfaces to be bonded using a spatula. Finally, the components to be bonded are pressed together. Higher ambient temperatures during processing ensure effective curing of the adhesive and increase strength at higher temperatures.
Technical data: Mixing
ratio (adhesive:
activator):
4: 1Thermal
conductivity: 0, 9
W/mKSurface curing (at 25°C): 2
hTotal curing (at 25°C): 5-7
TageBoiling point: >200°CFlash
point: >88°CSpecific
gravity (yellow component): 0, 97
g/cm3Specific gravity (black component): 2, 08 g/cm3Download data sheet
PDF: Alphacool Core 2
