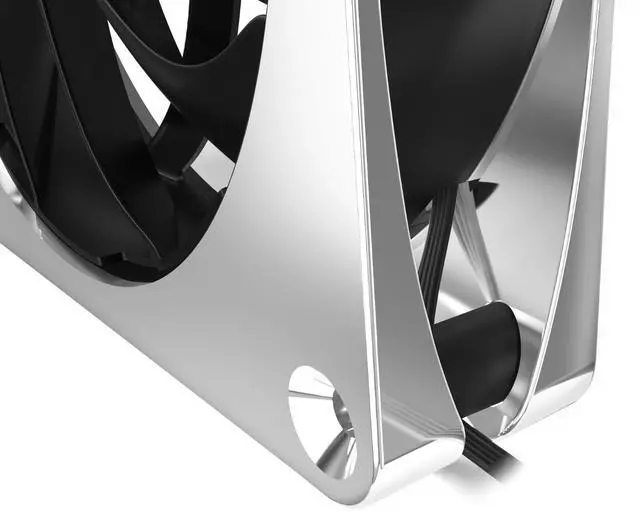

Alphacool Apex Stealth Metal Fan 3000rpm Chrome - 120x120x25mm (13824)

High-quality, elegant as well as timeless design and technical innovation - these are the features of the Alphacool Apex Stealth metal fan. With its
patent-pending decoupling technology, the robust metal frame and a special rotor, this fan certainly impresses. Not only is the Apex Stealth one of the
most powerful fans, but it also remains the quietest at any speed.

Whisper Quiet

The fan blades, motor and its suspension are completely decoupled from the metal frame. For this purpose, a special damping system was placed
between the metal frame and the fan, which absorbs all vibrations. This type of decoupling is a completely new system, which is brought to the market
by Alphacool for the first time with the Apex fan. In addition, the impeller is equipped with a closed frame that prevents the impeller tips from
fluttering at high speed, which also has a positive effect on the fan's characteristics.

Powerful All-rounder

The Alphacool Apex Stealth metal fan is a true all-rounder. It sets new standards in terms of airflow and static pressure. Therefore, this fan is not only
perfect for mounting on radiators, but also provides excellent airflow as a case fan. The Apex Stealth can be controlled between 0 to 3000 rpm via the
4-pin PWM connector. The startup speed is ~420 rpm. In addition, the Stealth offers Zero RPM control, which can be used to bring the fan to a complete
stop.

Apex Design

Alphacool's Apex product line represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique
premium product. Consisting of high-quality metal, the curved frame gives the Apex Stealth its distinctive design and fits perfectly into any PC build.

Additional Features

As usual with Alphacool, multiple fans can be effortlessly connected in series via daisy chain. The cables can be hidden in the corners of the fan so that
they are no longer visible. A 50 cm PWM cable is also included as an extension. The 6-pole motor in combination with the HDB bearing (Hydro Dynamic
Bearing) ensures extremely quiet operation and high durability.

Dimensions
120 x 120 x 25mm
Material (Frame)
Zinc Injection Molding
Material (Impeller)
Plastic
Weight
320g
Speed
0~3000±10% rpm
Bearing
Hydro Dynamic Bearing
Connector
4-Pin PWM
Cable Length (Daisy Chain)
110±10 mm
Start-up Voltage
6V DC
Rated Voltage
12V DC
Power Consumption
6.6 W
Air Flow
70.98 CFM
Static Air Pressure
4.23 mmH2O
Noise Level
40.1 dBA
MTBF (Lifespan)
100,000 Hours
PWM Control
Yes
Zero RPM Control
Yes
Tachometer Signal
Yes
Auto-Restart
Yes
Color
Chrome
