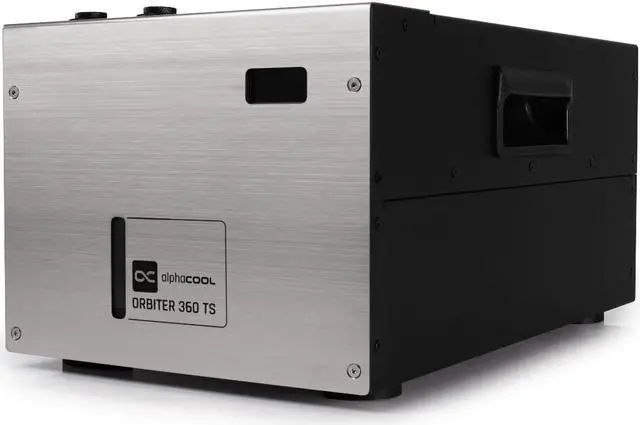

Alphacool ES Orbiter 360 TS (11932)

The Alphacool ES Orbiter 360 TS is an external cooling system designed for industrial use. It is compact and powerful. Cooling is provided by two HPE-30 NexXxoS full copper radiators with a total of 360mm cooling surface. The ES Orbiter 360 TS can dissipate waste heat of up to 1500 watts.

Powerful Cooling!

The radiators have a thickness of 30mm and are used in the HPE variant with a compact structure of the cooling channels. As a result, more coolant flows through the radiator and the cooling performance is significantly improved. A total of three in-house core 120mm fans with a long life expectancy ensure optimal ventilation of the radiators. The fans and pump are controlled and monitored by the ES Guardian Powerfan Hub. The hub sounds an alarm if the components fail. The temperature can be checked on the front of the Orbiter with the color display. Also on the front is the level indicator, which can be used to determine the liquid level in the system.

Compact Design

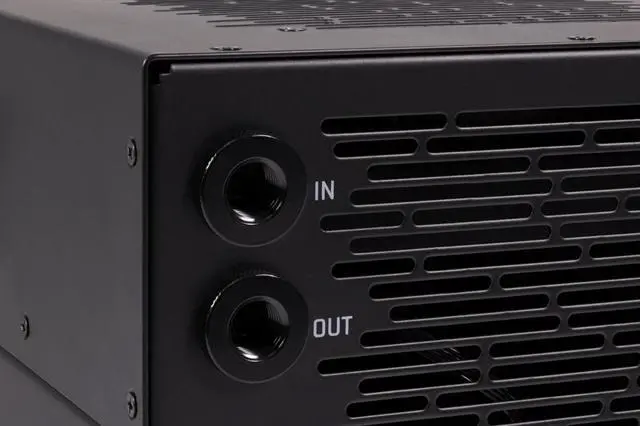

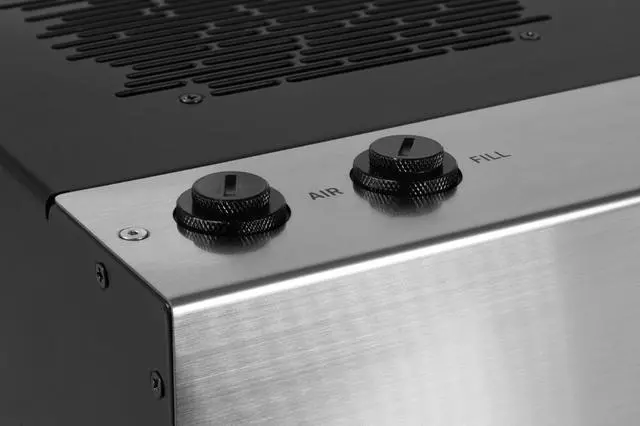

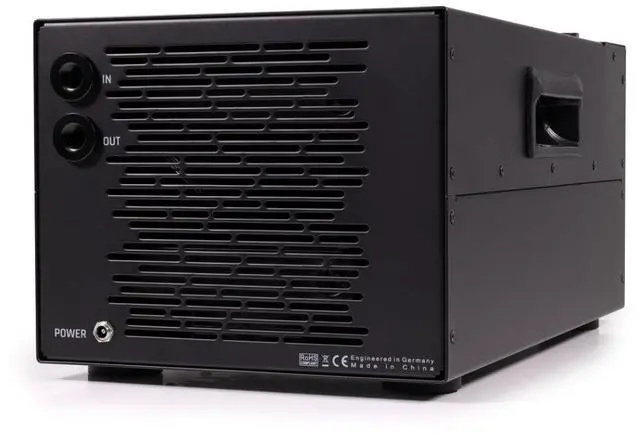

The ES Orbiter is kept clean and simple, with two recessed handles that make it easy to lift. The Alphacool Eisfach serves as an expansion tank and contains a powerful third-generation VPP755 pump. Thanks to the pump, almost any circuit can be operated reliably. Refilling the coolant is easy because the fill port is located on the top. The system can be easily vented via the adjacent valve. The inlet and outlet of the water connections are on the back of the orbiter, as is the power connection.

**Please Note**

Please only use in conjunction with clear, transparent water cooling liquids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in the manufacturer's warranty also becoming void.

Specifications - ES Orbiter
Dimensions (L x W x H)
378.80 x 224.46 x 185.30 mm
Housing - Material
Metal
Radiator - Material
Copper
Tube - Material
TPV (EPDM)
Radiator - Fins Per Inch
18
Approved Liquids
Water, Water/Glycol Mixture
Max. Cooling Capacity
1500 W
Tension
12 Vdc
Total Power Consumption
17.7 W
Approved Water Pressure
0.8 bar
Fillport
1 x G1/4"
Water Connections
2x G1/4"
Air Equalization
1 x G1/4"
Permitted Operating Temperature (PC Water Cooling)
60°C
Permitted Operating Temperature (Industrial Applications)
75°C
Hose - Service Temperature
-50°C to 155°C
Expansion Tank - Volume
445 mL
Pump - Flow
340 l/h
Pump - Max Head
3,125 m
Fan - Nominal Speed
2500 rpm
Fan - Max. Air Flow
83.3 m³/h
Display
Multicolored, Information Optionally in °C or Fahrenheit
Sensor Type
NTC 10k ohm Thermistor
Color
Black/Silver
