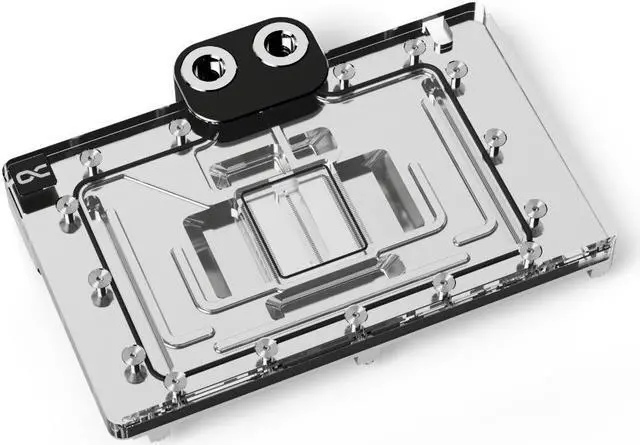

Alphacool Core Geforce RTX 4080 Reference Design with Backplate (13439)

Product InformationAlphacool's Core product series is characterized by high quality, outstanding performance and a consistent, functional design language. The core of this cooler is the copper cooler, which is milled from a piece of copper together with the end terminal. The fine workmanship in combination with the hard and durable chrome plating of the entire copper cooler meets the highest quality standards. The two integrated G1/4" brass threads, which are left in chrome, stand out visually from the terminal and are one of the key points of the new design language that is evident in all products in the Core series.

The aluminum backplate, which is adapted to the design, forms a unit together with the terminal and convinces with a clear and homogeneous look on the back of the cooler. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly and well. The technical development is reflected in the water supply to the jet plate and in the optimization of the jet plate itself. This was completely redesigned on the basis of many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been changed, the cooling surface increased and the water flow optimized to the core components with the greatest heat dissipation.

The included special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.
Compatibility: -PNY GeForce RTX 4080 16GB XLR8 Gaming Verto Epic-X RGB Triple Fan, 16GB GDDR6X (VCG408016TFXXPB1) *-PNY GeForce RTX 4080 16GB XLR8 Gaming Verto Epic-X RGB Overclocked Triple Fan, 16GB GDDR6X (VCG408016TFXXPB1-O) *-PNY GeForce RTX 4080 16GB Verto Triple Fan, 16GB
GDDR6X (VCG408016TFXPB1) **Attention: Please note that a part of the PCB isnot covered by the water block *-Inno3D GeForce RTX 4080 X3, 16GB GDDR6X-Inno3D GeForce RTX 4080 X3 OC, 16GB GDDR6X-Inno3D GeForce RTX 4080 iCHILL X3, 16GB GDDR6X (C40803-166XX-187049H)-PNY GeForce RTX 4080 SUPER Verto Overclocked Trip
