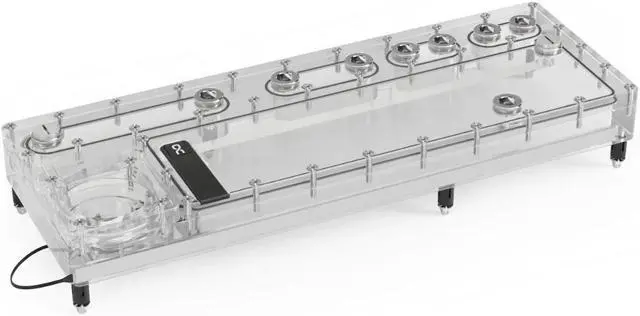

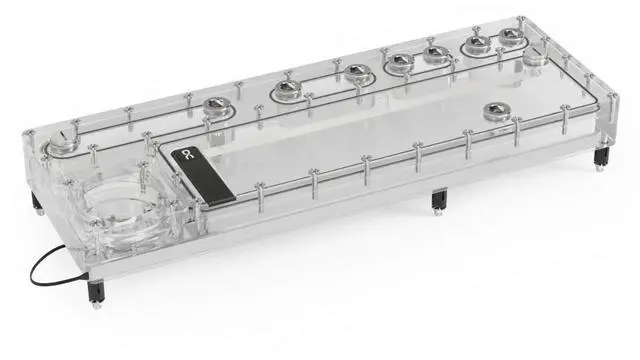

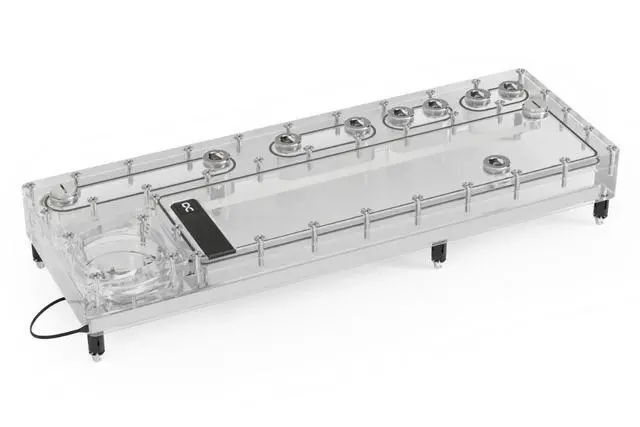

Alphacool Core Distro Plate 420 Left VPP/D5 (13890)

The Alphacool Core Distro Plate is an absolute must-have for all custom water cooling systems! With its core design, it's not only a real eye-catcher, but also a functional masterpiece that simplifies the design and planning of complex water loops and offers uncomplicated installation.

The distro plate is made of high-quality acrylic glass and features chrome-plated G1/4" brass fittings. These are recessed and intentionally not screwed in to reduce the risk of cracking and leaks while simultaneously increasing stability. The fittings are also split and feature an O-ring for maximum sealing.

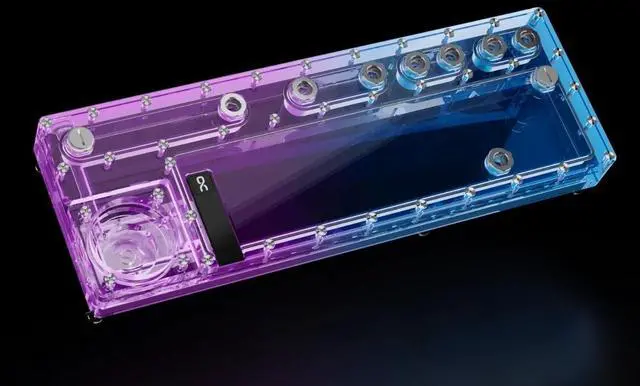

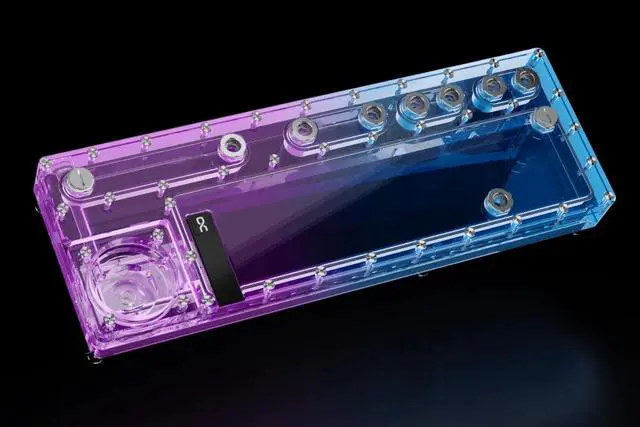

The fitting arrangement is designed to not only optimize tubing routing but also provide an attractive appearance. This is complemented by integrated aRGB lighting, which delivers impressive visual effects. The lighting can be controlled either via a digital aRGB header on the motherboard or optionally with the Alphacool Aurora Eiscontrol aRGB controller (item no.: 15360).

Included in the package is the Alphacool Core Push Mounting Kit, which significantly simplifies the installation of the distro plate. The metal pins are attached to the radiator or the PC case panel, and the corresponding female sleeves are attached to the distro plate, allowing you to simply push them onto the pins. This system ensures a secure fit. The distro plate allows for easy disassembly during maintenance or upgrades. A detailed description can be found in the enclosed instructions.

Technical data
Dimensions (L x W x H)
420.00 x 145.00 x 42.00 mm
Dimensions (L x W x H) with pump
420.00 x 145.00 x 61.00 mm
Dimensions (L x W x H) with push mounting
420.00 x 145.00 x 72.80 mm
Dimensions (L x W x H) with pump + push mounting
420.00 x 145.00 x 88.80 mm
material
Acrylic
volume
620ml
Pump compatibility
D5/VPP
Connections
10x G1/4" internal thread / 1x drain port
Maximum operating temperature
60 °C
Pressure tested
0.8 bar
Number of digital aRGB LEDs
17
Digital voltage aRGB LEDs
5V
digital power connection aRGB LEDs
3-Pin JST + 3-Pin 5V
Weight with pump
2580g
Weight without pump
2304g
Color
transparent
