Alphacool Core Geforce RTX 5090 Gamerock + Phantom Waterblock with Backplate, G1/4, Chrome Plated Copper, ARGB (10259)

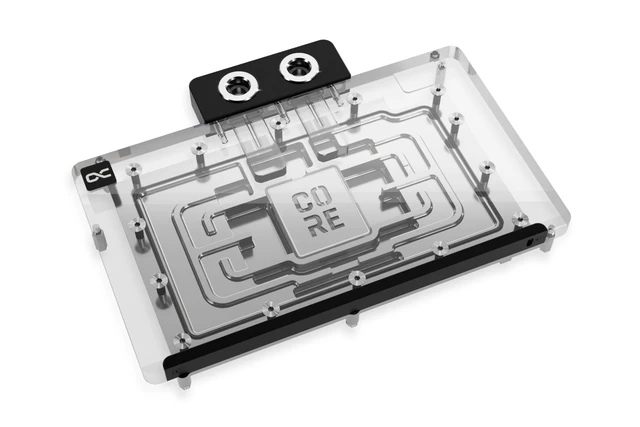

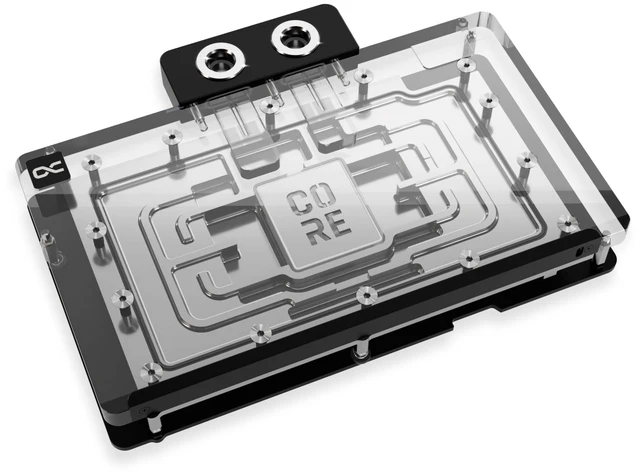

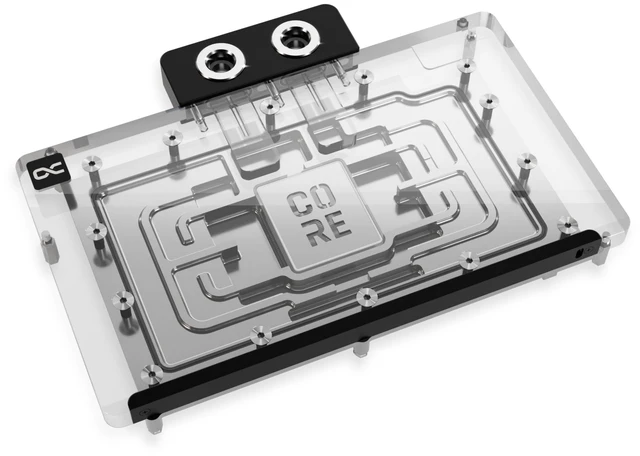

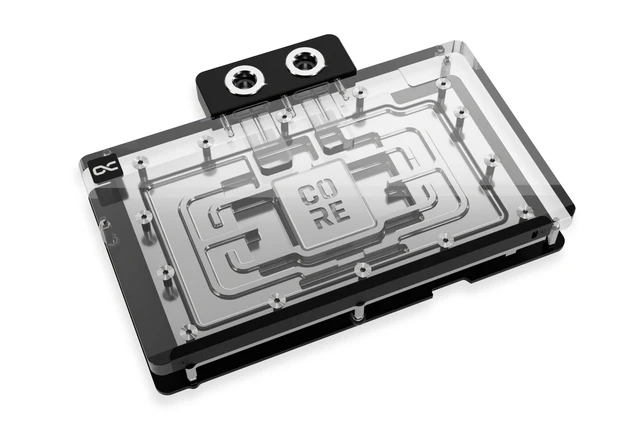

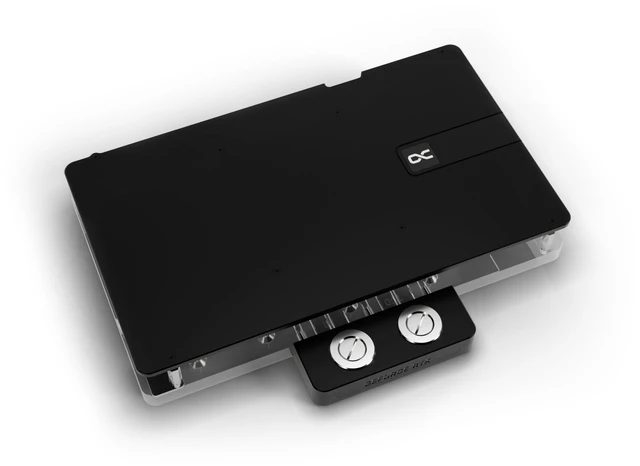

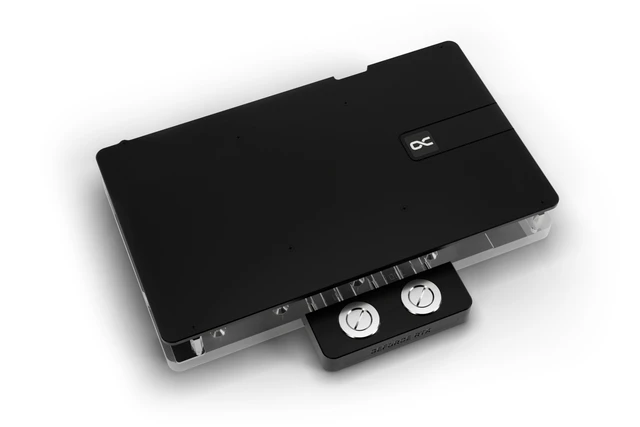

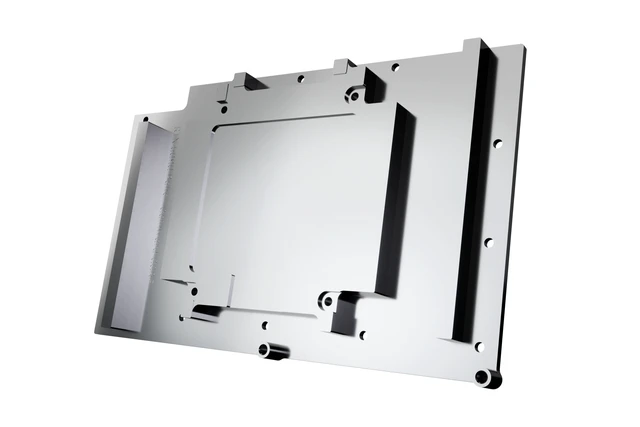

The Alphacool Core Geforce RTX 5090 Gamerock + Phantom Waterblock with Backplate is a GPU water block for the Palit GameRock and Gainward Phantom versions of the Nvidia GeForce RTX 5090 graphics card. It cools the card with a chrome-plated copper block under an acrylic top, and the aluminum backplate is in the box.

Properties

• Fits: GeForce RTX 5090, Palit GameRock and Gainward Phantom

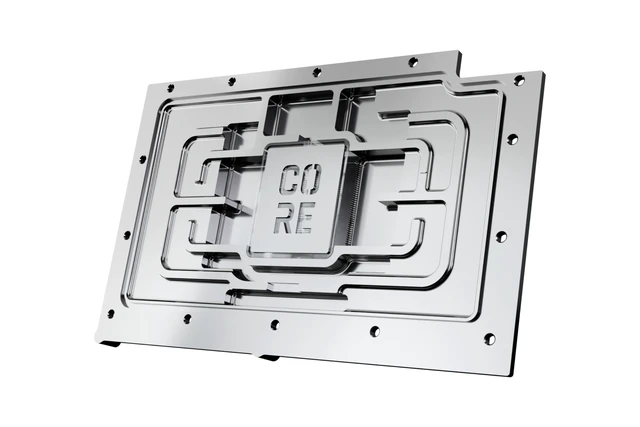

• Cold plate: Chrome-plated copper
• Top: Acrylic, transparent
• Ports: 4 x G1/4
• Backplate: Aluminum, included
• Lighting: 9 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• Gainward GeForce RTX 5090 Phantom (4878 / NE75090019R5-GB2020P)
• Gainward GeForce RTX 5090 Phantom GS (4861 / NE75090S19R5-GB2020P)
• Palit GeForce RTX 5090 GameRock (NE75090019R5-GB2020G)
• Palit GeForce RTX 5090 GameRock OC (NE75090S19R5-GB2020G)

The block was built for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards.

Technical data cooler

• Dimensions total (L x W x H): 214.40 x 153.37 x 34.38 mm

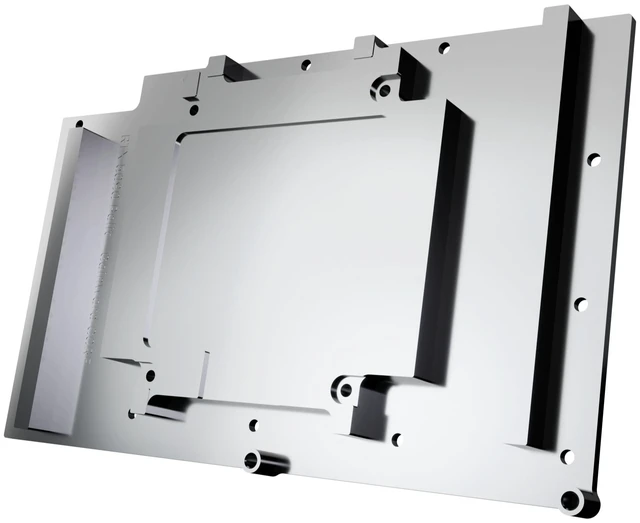

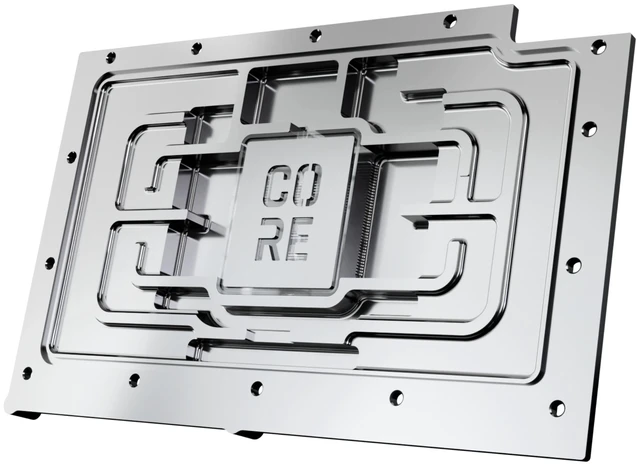

• Material cooler: chrome-plated copper
• Material cooler top: Acrylic
• Material terminal: Nylon
• Material Connection thread: Brass
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 4 x G1/4
• Thickness cooler bottom: 3.25 mm
• Thickness cooling fins: 0.4 mm
• Distance cooling fins: 0.4 mm

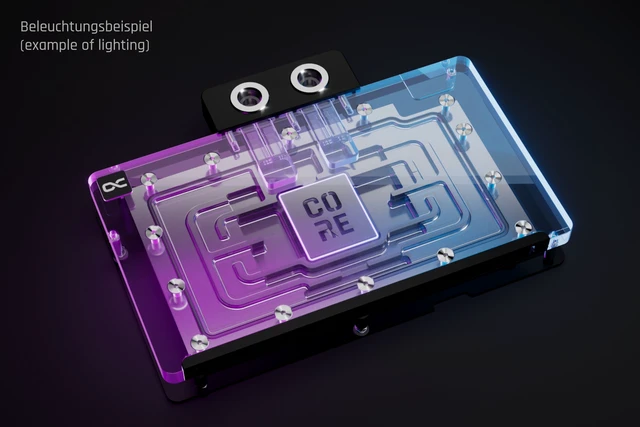

• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 9
• Color: transparent

Technical data backplate

• Dimensions (L x W x H): 214.40 x 124.80 x 6 mm
• Thick backplate without spacers: 3 mm
• Material: Aluminum

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.
• During assembly, make sure the taller parts on the card have enough space around them.

In the box

• 1x Core Geforce RTX 5090 Gamerock + Phantom cooler
• 1x Backplate
• 2x 68x15x1mm Pad
• 1x 54x15x1mm Pad
• 4x 8x8x1mm Pad
• 2x 12x15x1mm Pad
• 1x 91.5x8x1mm Pad
• 1x 101x8x1mm Pad
• 1x 20x8x3mm Pad
• 1x 54x8x3mm Pad
• 2x 68x8x3mm Pad
• 1x 45x45x3mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x ARGB Adapter
• 1x PCIe Bracket
• 1x Plug tool
• 1x Screwdriver
• 2x G1/4 Plug
• 8x M2x10mm screws
• 1x M2x5mm spring screw
• 1x washer
• 1x M2x4mm screw
