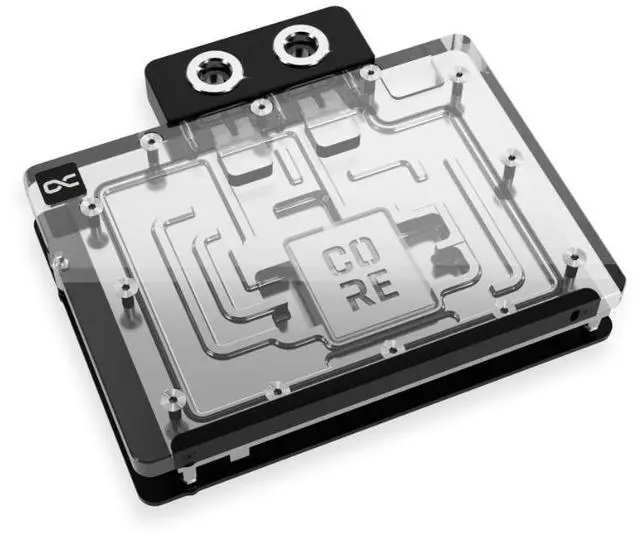

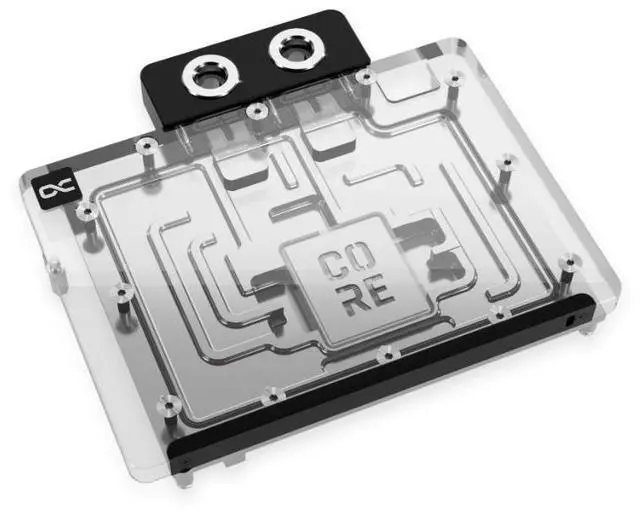

Alphacool Core Geforce RTX 5080 Gamerock + Phantom Waterblock with Backplate (10260)

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

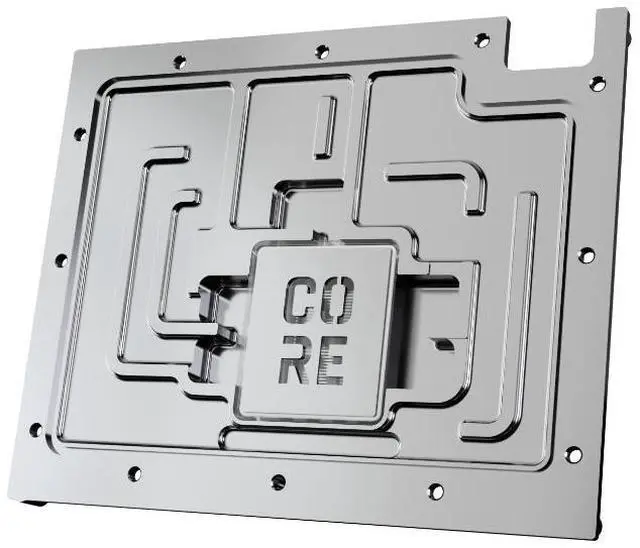

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper coolers durability and provides a smoother, more radiant surface than traditional nickel plating.

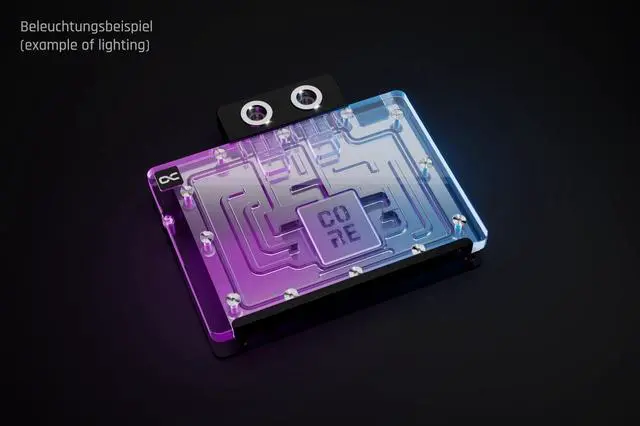

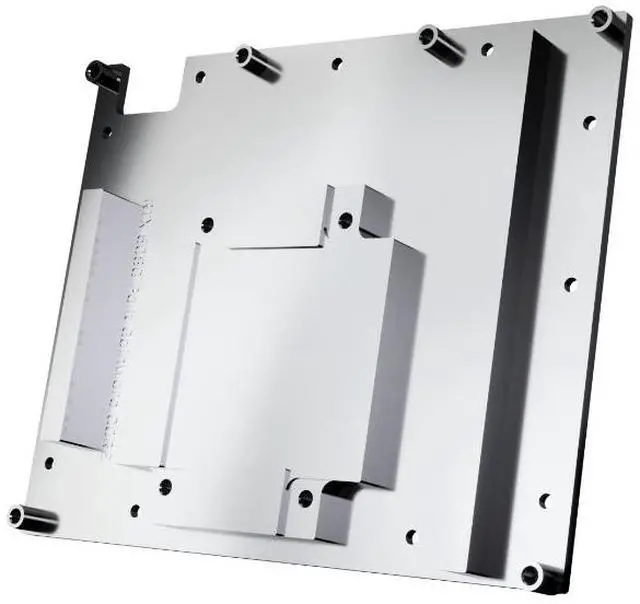

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.

The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:

- Gainward GeForce RTX 5080 Phantom - 4915 / NE75080019T2-GB2030P

- Gainward GeForce RTX 5080 Phantom GS - 4908 / NE75080T19T2-GB2030P

- Palit GeForce RTX 5080 GameRock - NE75080019T2-GB2030G

- Palit GeForce RTX 5080 GameRock OC - NE75080T19T2-GB2030G

- Palit GeForce RTX 5070 Ti GameRock - NE7507T019T2-GB2030G

- Palit GeForce RTX 5070 Ti GameRock OC - NE7507TH19T2-GB2030G

Technical data cooler
Dimensions total (L x W x H)
173,50 x 154,03 x 34,07mm
Material cooler
chrome-plated copper
Material cooler top
Acrylic
Material terminal
Nylon
Material Connection thread
Brass
Max working temperature
60°C
Pressure tested
0,8 bar
Threads
4 x G1/4"
Thickness cooler bottom
3,25mm
Thickness cooling fins
0,4mm
Distance cooling fins
0,4mm
Illumination
digital aRGB LEDs
Power connector digital aRGB LEDs
3-Pin JST
Power digital aRGB LEDs
5V
Number of digital aRGB LEDs
8
Color
transparent

Technical data backplate
Dimensions (L x W x H)
173,50 x 154,03 x 6mm
Thickness backplate without spacers
3mm
Material
Aluminium
