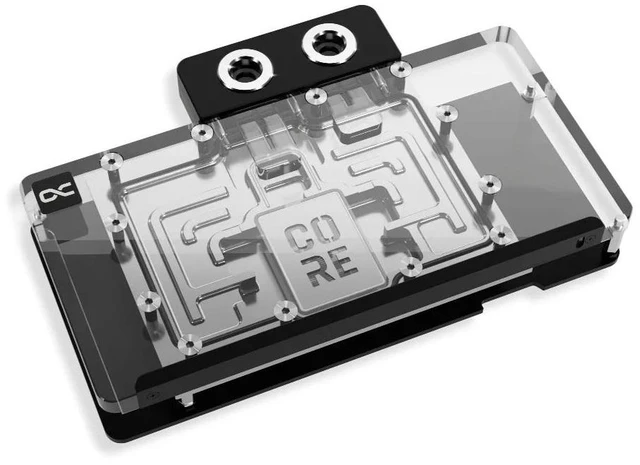

Alphacool Core RX 9070 XT Hellhound + Pure with Backplate (14782)

The Alphacool Core RX 9070 XT Hellhound + Pure with Backplate is a GPU water block for AMD Radeon RX 9070 XT and RX 9070 graphics cards from PowerColor and Sapphire. The PowerColor Hellhound and the Sapphire PURE are two of them, and every card is named under Compatibility. A chrome-plated copper block under an acrylic top cools the card, and the aluminum backplate is in the box.

Properties

• Fits: PowerColor and Sapphire Radeon RX 9070 XT and RX 9070 cards, listed below
• Cold plate: Chrome-plated copper
• Top: Acrylic, transparent
• Ports: 4 x G1/4
• Backplate: Aluminum, 3 mm thick, included
• Lighting: 10 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• PowerColor Hellhound AMD Radeon RX 9070 16GB GDDR6
• Sapphire PULSE AMD Radeon RX 9070 GPU
• Sapphire PURE AMD Radeon RX 9070 OC GPU (11349-02-20G)
• PowerColor Hellhound AMD Radeon RX 9070 XT 16GB GDDR6
• PowerColor Hellhound Spectral White Radeon RX 9070 XT 16GB GDDR6 (RX9070XT 16G-L/OC/WHITE)
• PowerColor Reaper AMD Radeon RX 9070 XT 16GB GDDR6
• Sapphire PULSE AMD Radeon RX 9070 XT GPU
• Sapphire PURE AMD Radeon RX 9070 XT GPU

The block was designed for one special PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for AMD cards.

Technical data cooler

• Dimensions total (L x W x H): 197.00 x 127.33 x 33.35 mm
• Material cooler: chrome-plated copper
• Material cooler top: Acrylic
• Material terminal: Nylon
• Material Connection thread: Brass
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 4 x G1/4
• Thickness cooler bottom: 3.25 mm
• Thickness cooling fins: 0.4 mm
• Distance cooling fins: 0.4 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 10
• Color: transparent

Technical data backplate

• Dimensions (L x W x H): 197.00 x 98.80 x 6.00 mm
• Thickness backplate without spacers: 3 mm
• Material: Aluminum

In the box

• 1x Core RX 9070 XT Hellhound + Pure cooler
• 1x Backplate
• 2x 40x15x1mm Pad
• 1x 31.5x15x1mm Pad
• 2x 8x8x1mm Pad
• 2x 56x8x1mm Pad
• 1x 15x8x1mm Pad
• 1x 31.5x8x3mm Pad
• 2x 40x8x3mm Pad
• 1x 45x45x3mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x ARGB Adapter
• 1x Plug tool
• 1x Screwdriver
• 2x G1/4 Plug
• 8x M2x10mm screws
• 1x PCI-Bracket
• 1x M3x4mm screw
• 1x Washer
• 1x 2mm Spacer
• 1x 1mm Spacer
• 1x Nut
