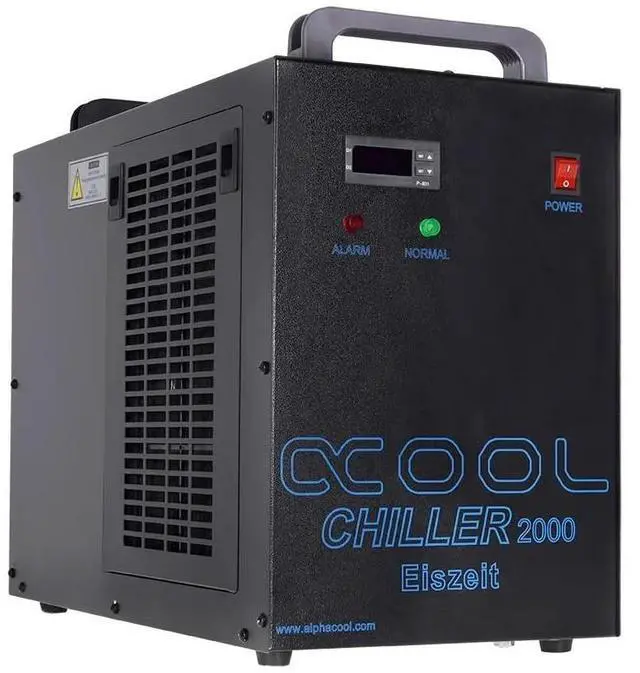

Alphacool Eiszeit 2000 Chiller - Black 110-120V / 60hz (5100104)

The Alphacool Eiszeit is a compressor chiller with a maximum cooling capacity of 1500W. Unlike most so-calledchillers or flow-through chillers, the Eiszeit features a powerful integrated pump. With the Eiszeit, you get a compressor chiller from Alphacool. This allows youto maintain your system, or multiple systems, at a preset temperature and have it automatically regulated. The Eiszeit achieves a maximumcooling capacity of 1500W. You can easily enter the settings on the Eiszeit's display. Adjustments in fine increments of 0.3 ° Kelvin are possible. If necessary, you can alsoachievetemperatures significantly below room temperature.

Another highlight is the integrated, powerful pump with a maximum delivery head of up to 10m. A separate pump is therefore no longer required. Should the pump's output prove too high, a restrictorcan be integrated into the loop using a ball valve or a check valve. The G1/4" ports are compatible with virtually all standardwater cooling fittings. This gives the Eiszeit outstanding compatibility with allcommon products, such as CPU coolers and graphics card coolers. The Eiszeit also features safety functions likeovervoltage protection for the compressor and alarms for low flow or excessive temperatures.

Using the Eiszeit is relatively simple. After connecting the water loop, youfill it via the fill port on the top of the Eiszeit. The integrated reservoir has a 9L capacity. Of course, you willalso need coolant to fill the entire loop. Performance calculationWater outlet temperature (Fw) °C810152025303540factor 0.690. 7711.221. 441.641. 822Ambient temperature (Fa) °C1520253235404550factor 1.261, 21.1110. 950.870. 80.72P ercentage of glycol in the coolant (Fg) %010152025303540factor 10.960. 950.940. 930.910.
90.88F ormula: 1.08 kW * Fw * Fa *
FgExample: A chiller delivers 1.08 kW of cooling capacity. Water
