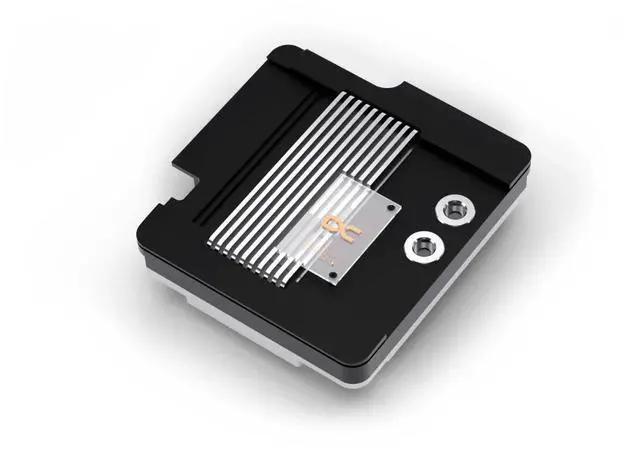

Alphacool Apex Monoblock for ASUS PROART X870E-Creator WiFi Motherboard (14684)

The Apex Monoblock is the perfect cooling solution for maximum performance, featuring an elegant design tailored to the motherboard. Specifically designed for the motherboard, the monoblock reliably cools not only the CPU but also the voltage regulator modules (VRMs) and the M. 2 NVMe SSD located below the CPU socket. All key motherboard components are actively cooled by the water block within the monoblock. Like the Apex 1 CPU cooler, the Apex Monoblock utilizes an offset cooling base plate. This directs the coolant flow precisely to the thermal hotspot of the AM5 CPU.

Combined with the proven cross-slot design and the 3D Jetplate 2.0, this design generates high water pressure, enabling exceptionally efficient heat dissipation. Ideal for overclocking or continuous operation. The cooler is milled from a solid block of copper. The G1/4" connection terminal is made of brass and, together with the copper base, ensures long-lasting durability and excellent thermal conductivity. The Apex monoblock design, tailored to each motherboard, not only offers optimal cooling performance but also integrates seamlessly into the motherboard's aesthetics. The motherboard's original I/O cover remains fully intact, preserving its distinctive design.

Combining performance, design, and functionality, the monoblock becomes the highlight of any custom water cooling system.
Compatibility: ASUS ProArt X870E-Creator WiFi (AM5) Technical dataDimensions (L x W x H) (in mm) 174.40 x 164.50 x 51.50R adiator base materialChrome-plated copper (Cu-HCP)Material CoverAluminium (AlMg 0.7S i)Cooler top materialPlexi (LXN866) Material TerminalBrass (CuZn39Pb3) Terminal connection2x G 1/4Material connection threadBrass (CuZn39Pb3) Maximum torque of the G 1/4 thread (in Nm) 1.00M aximum torque of the M3 thread (in Nm) 0.48M aximum torque of the M4 thread (in Nm) 1.12M aximum operating temperature (in °C)60Recommended operatin
