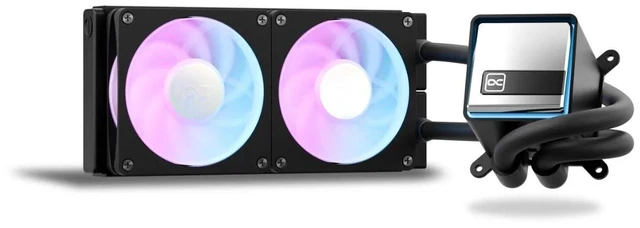

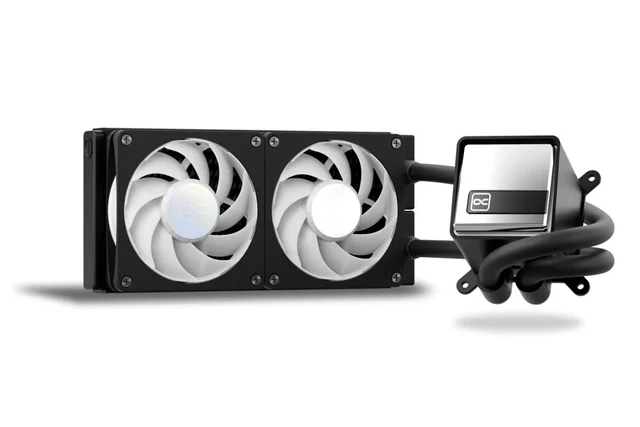

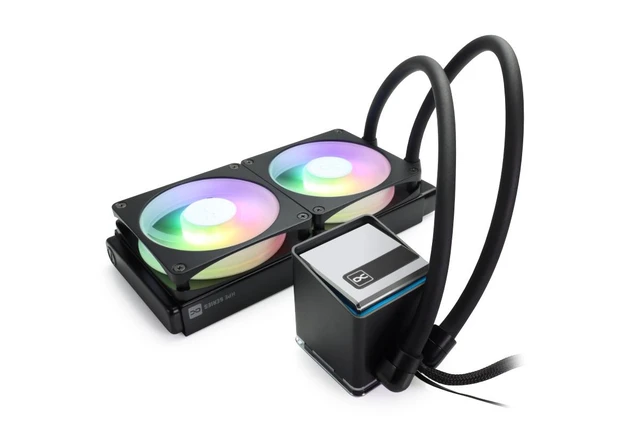

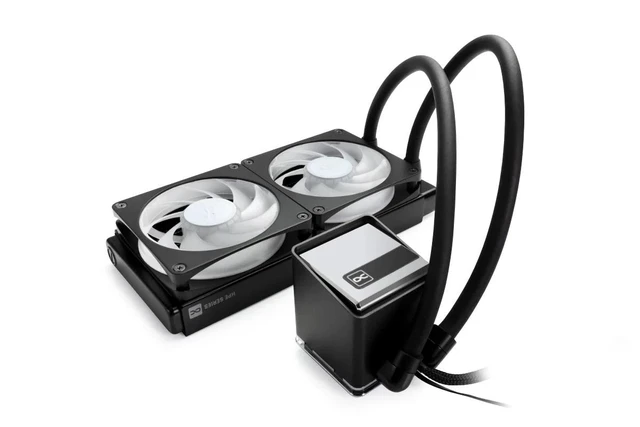

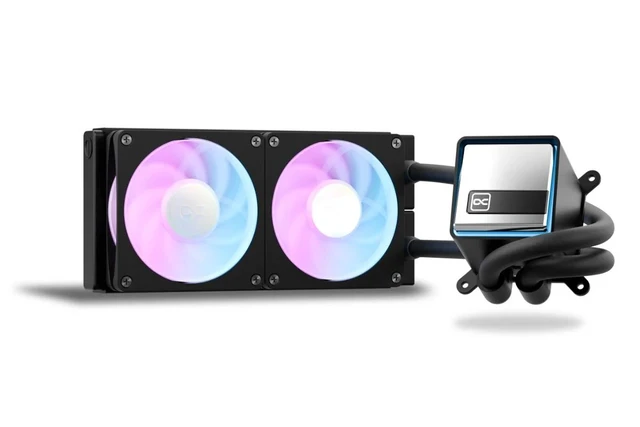

Alphacool Core 2 XT 240mm CPU AiO Cooler (14710)

The Alphacool Core 2 XT 240mm CPU AiO Cooler is an all-in-one (AIO) liquid CPU cooler with a 240 mm radiator for AMD AM4 and AM5 and Intel LGA 1700 and 1851. Unlike conventional sealed AIO coolers it has a serviceable construction, with multiple G1/4 radiator ports, including a dedicated fill and drain port. The same cooler comes with a 280 mm, 360 mm or 420 mm radiator.

Properties

• Intel sockets: LGA 1700, 1851
• AMD sockets: AM4, AM5
• Radiator: 240 mm, NexXxoS HPE Full Copper, 30 mm thick
• Fans in the box: 2 x Apex Stealth 120mm aRGB PWM, approximately 380 to 2,600 RPM
• Pump: Core DC-LT 3, up to approximately 3,800 RPM
• Tubes: TPV, flexible and durable

Fit

Socket compatibility comes from the CPU mounting hardware in the box, which covers every socket named above. For AMD, the accessories list in the manual shows a CPU bracket set and four threaded bolts, and the cooler mounts on the board's original backplate. For Intel it shows a second bracket set, four threaded bolts of their own and a CPU backplate, which the manual says is only required for the Intel socket. Four screw sleeves and four washers complete the set.

On an AMD board the manual has you remove the two-piece retention frame first. On either platform you clean the CPU, apply the thermal grease and remove the protective film before the cooler goes on. Where the socket hardware goes on, the manual says to hand tighten only. The package includes the thermal paste (1g) and a putty tool.

Technical data radiator

• Radiator: Alphacool NexXxoS HPE 240mm Full Copper Radiator
• Thickness: 30 mm
• Cooling channels: 14
• Fin density: 18 FPI
• Copper parts: Fins, cooling channels and pre-chambers
• Ports: Multiple G1/4, including a dedicated fill and drain port

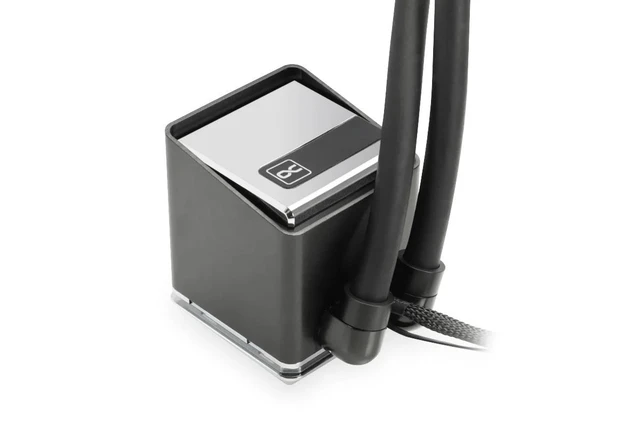

Technical data cooler and pump

• Cooling technology: Based on Alphacool Core 1
• Cold plate: Chrome-plated copper
• Housing: Aluminum, isolated from the coolant
• Pump: Integrated Alphacool Core DC-LT 3 pump
• Pump speed: Up to approximately 3,800 RPM
• Maximum pump flow rate: Approximately 2.1 L/min
• Maximum pump head pressure: 1.4 meters

Technical data tubes

• Material: TPV tubing

Technical data fans

• Fans: 2 x Alphacool Apex Stealth 120mm aRGB PWM
• Fan speeds: From approximately 380 to 2,600 RPM
• Airflow: Up to 59.79 CFM per fan
• Static pressure: Up to 3.35 mmH2O per fan
• Zero-RPM fan operation: Supported
• Lighting: Integrated 5V addressable RGB

In the box

• 1x Alphacool Core 2 XT 240mm CPU AIO
• 2x Alphacool Apex Stealth 120mm aRGB PWM Fans
• CPU mounting hardware
• 1g thermal paste
• 1x Putty tool
• 1x ARGB Adapter
• 1x PWM Extension cable
• 1x aRGB Extension
• 8x M3 Screw
• 8x M3x5mm
• 1x Plug tool
