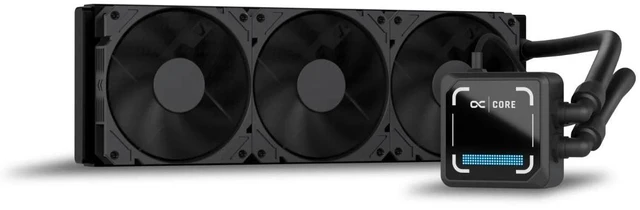

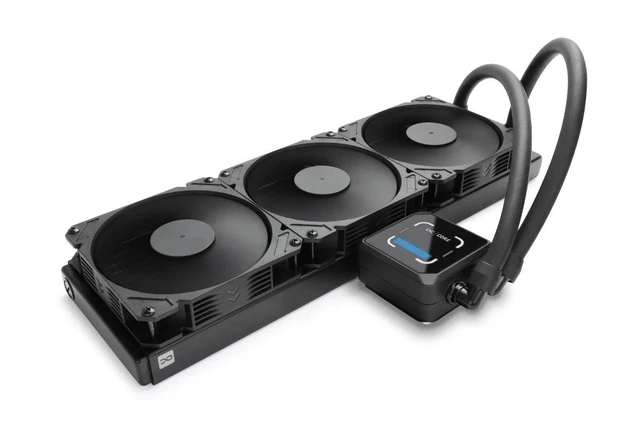

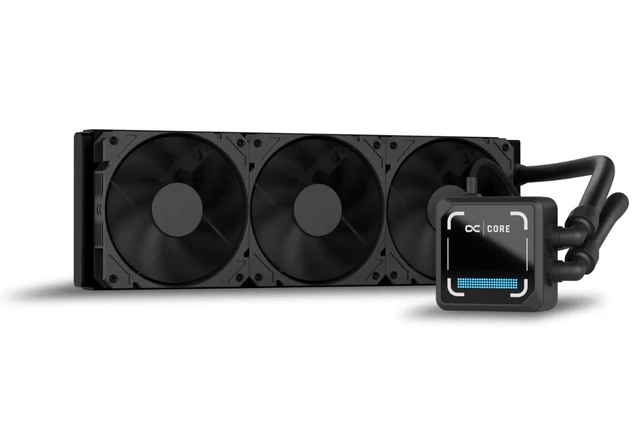

Alphacool Core 2 LT 360mm CPU AiO Cooler (14622)

The Alphacool Core 2 LT 360mm CPU AiO Cooler is a compact AIO liquid cooler with a 360 mm radiator for AMD AM4 and AM5 and Intel LGA 115x, 1200, 1700, 1851 and 2066. As the successor to the Eisbaer LT it is designed for systems where installation space is limited but strong cooling performance is still required, with a radiator measuring just 22.5 mm thick. The same cooler comes with a 240 mm radiator.

Properties

• Intel sockets: LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2066
• AMD sockets: AM4, AM5
• Radiator: 360 mm, NexXxoS full copper, 22.5 mm thick
• Fans in the box: 3 x Core 120mm PWM, up to 2,500 RPM
• Pump: Core DC-LT 3 PWM, up to approximately 3,800 RPM
• Tubes: 320 mm TPV, rotatable 90° fittings at the CPU block

Fit

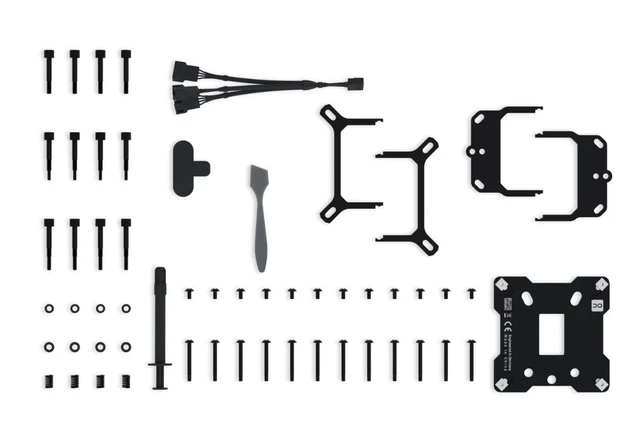

The CPU mounting hardware in the box covers every socket named above. For Intel there is one set of brackets, a CPU backplate, four mounting parts for LGA 115x, 1200, 1700 and 1851 and four LGA 2066 screws. For AMD there is one set of brackets and four bolts for AM4 and AM5. Pressure springs and washers in two thicknesses complete the set.

On an AMD board the two-piece retention frame comes off first. On either platform you clean the CPU, apply the thermal grease and remove the protective film before the cooler goes on. The package includes the thermal paste and a putty tool.

Successor to the Eisbaer LT

The Core 2 LT combines the full-copper radiator technology of Alphacool with an upgraded PWM pump, high-performance fans and a compact CPU block. It is meant as an efficient and easy-to-install cooling solution for compact and space-constrained PC systems. With its PWM-controlled components and broad AMD and Intel socket compatibility, it is aimed at a balance of cooling performance, compact dimensions and value.

Technical data radiator

• Radiator: Alphacool NexXxoS, full copper
• Size: 360 mm
• Thickness: 22.5 mm
• Copper parts: Fins and cooling channels

Technical data cooler and pump

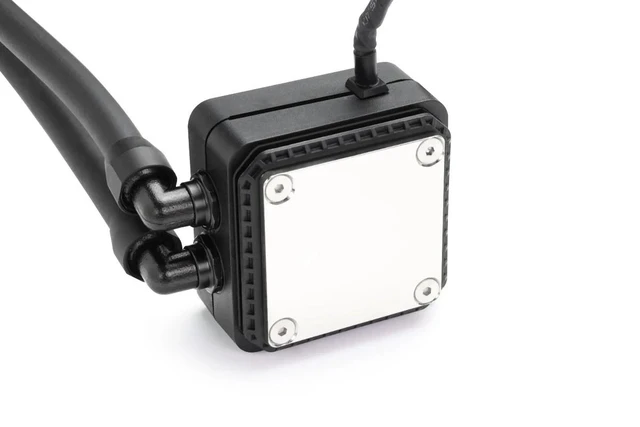

• Cold plate: Chrome-plated copper
• Pump: Integrated Alphacool Core DC-LT 3 PWM pump
• Pump speed: Up to approximately 3,800 RPM
• Maximum pump flow rate: Approximately 2.1 L/min
• Maximum pump head pressure: 1.4 meters
• Lighting: Blue LED

Technical data tubes

• Length: 320 mm
• Material: TPV tubing for flexible installation
• Fittings: Rotatable 90° fittings at the CPU block

Technical data fans

• Fans: 3 x Alphacool Core 120mm PWM
• Fan speeds: Up to 2,500 RPM
• Airflow: Up to 72.63 CFM per fan
• Static pressure: Up to 2.42 mmH2O per fan

Notes

• For cleaning, remove the coolant, then clean the cooler with distilled water and Alphacool Core Loop Cleaning (13016).
• For refilling, use Alphacool Ultra Pure Water (17313).

In the box

• 1x Alphacool Core 2 LT 360mm AIO CPU Cooler
• 3x Alphacool Core 120mm PWM Fans
• 1x Intel Brackets
• 1x CPU Backplate INTEL
• 4x LGA 115x, 1200, 1700, 1851 mounting parts
• 4x LGA 2066 Screw
• 4x Pressure Spring
• 4x 0.5mm Washer
• 4x 2mm Washer
• 1x AMD Brackets
• 4x AM4, AM5 Bolt
• 1x Y-Splitter 4-Pin to 3x 4-Pin PWM
• M3x30mm Screws
• M3x5mm Screws
• 1x Thermal Grease
• 1x Putty tool
• 1x Plug tool
