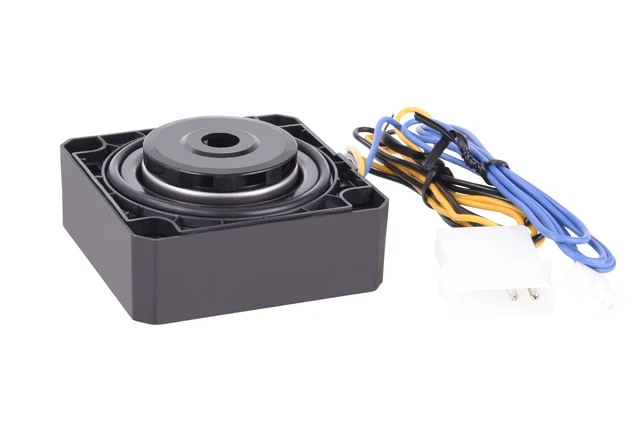

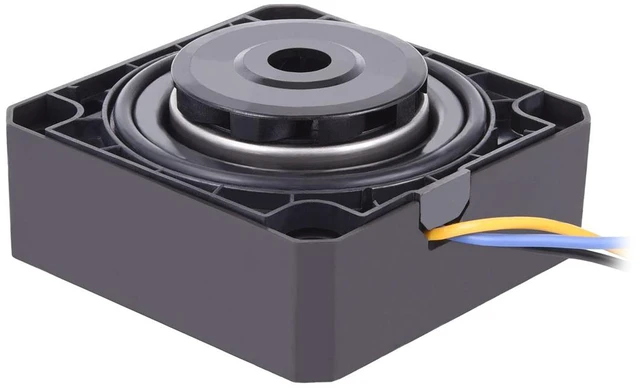

Alphacool ES Laing DDC310 Pump - Single black plastic bottom

The Alphacool ES Solution Laing DDC310 pump serves as the foundation for various 1 to 4u server solutions from Alphacool. The unit is based around the very popular Alphacool DDC pump and has been coupled with a simple pump base to maintain compatibility with various Enterprise Solution reservoirs.

Compact and powerful.
The flat design of the Laing DDC310 pump saves space and fits with the corresponding Enterprise reservoirs from chassis as small as a 1u server rack. This results in a very powerful pump that can be used in the smallest of spaces. The DDC310 variant offers with a delivery height of 2.44 m enough power to operate an extensive water loop. The performance is enough to operate a dual or quad socket system including reservoir and radiators. The performance of the pump is also sufficient to operate a render server with up to 4 graphics cards.

Installation and Commissioning

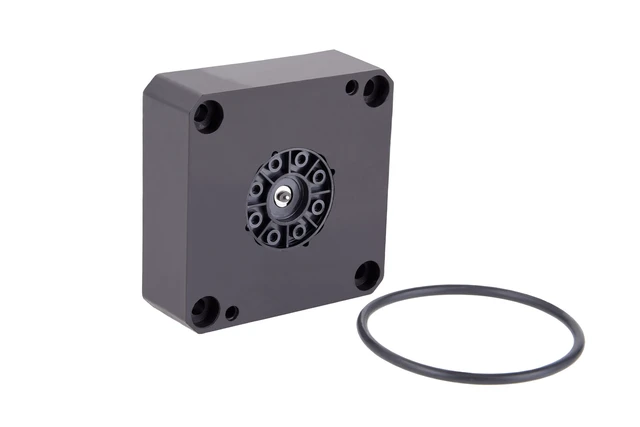

The pump is delivered with a classic plastic bottom which ensures a high compatibility to all Enterprise Solution products. However, the pump can also be mounted on all existing DDC pump tops from Alphacool. The pump comes with a corresponding O-ring, only the mounting screws must be used from the respective reservoir, as these may differ in length. The power is supplied via a 4-pin Molex connector, the speed can be read out via a 3-pin Molex connector. This is usually done via the 3-pin fan connector on the mainboard or via an appropriate fan controller.

Technical data
Dimensions (L x W x H) 62 x 62 x 30mm
Speed 3250 rpm
Max power consumption 8W
Voltage 12V DC
Power connector 4-Pin Molex
PWM control n/a
Tacho-Signal yes (3-Pin Molex)
Max. working temperature ambiente 10 DegreeC - 50 DegreeC
Max. working temperature water 10 DegreeC - 60 DegreeC
Max. head of pump 2, 28m
Max. flow 200 l/h
Max. Pressure [bar] 0, 2
Model: 13991
